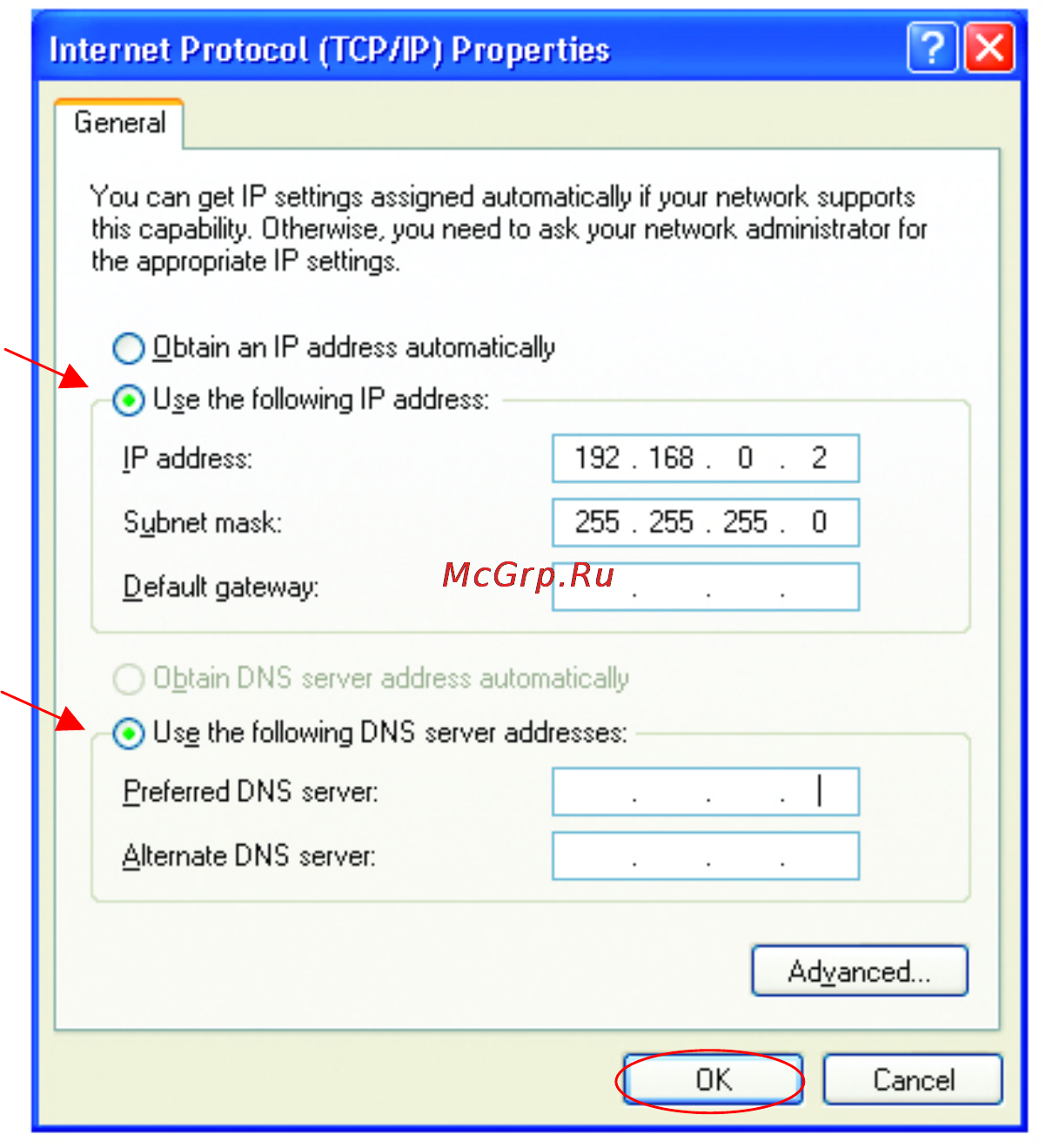

Select Use the following IP address in the Internet Protocol (TCP/IP)
Properties window.
Input your IP address and subnet mask. (The IP Addresses on your network
must be within the same range. For example, if one computer has an IP
Address of 192.168.0.2, the other computers should have IP Addresses that
are sequential, like 192.168.0.3 and 192.168.0.4. The subnet mask must be
the same for all the computers on the network.)
Input your DNS server addresses.
The DNS server information will be provided by your ISP (Internet Service
Provider.)
Click OK
