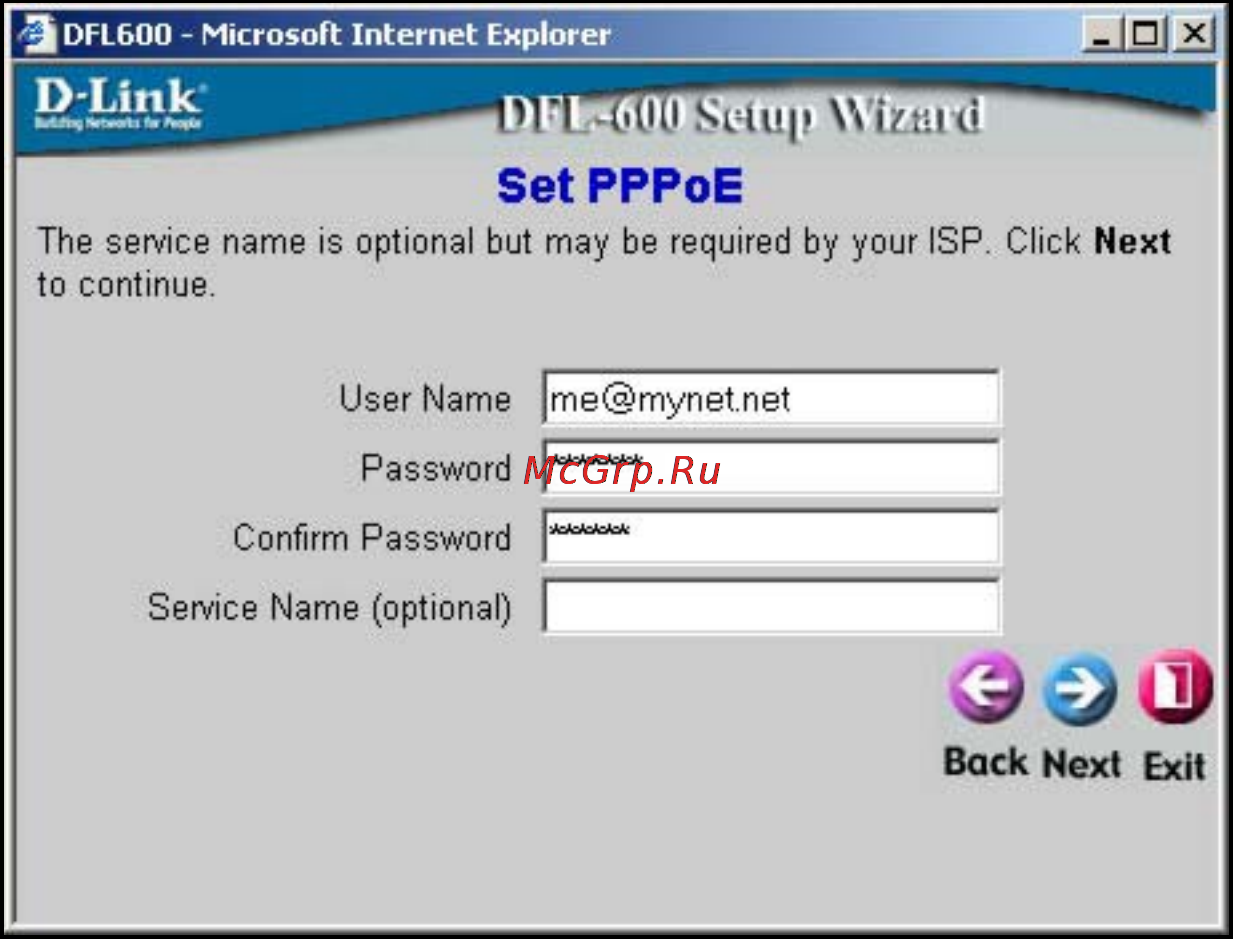

This screen will allow you to enter the PPPoE information, if your ISP uses

the PPPoE protocol for your Internet account. Your ISP must provide this

information.

Click Next to continue.
