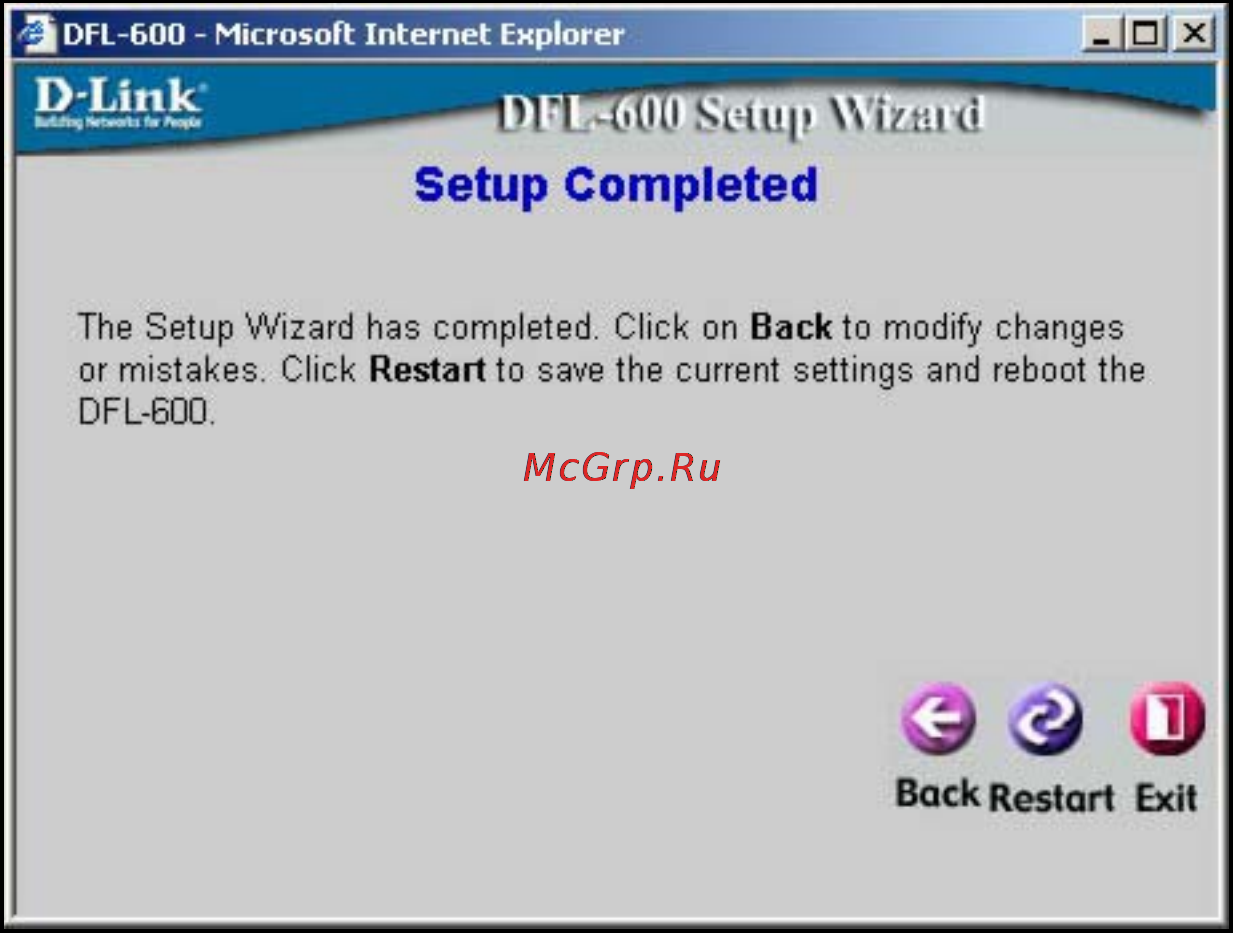

You have completed the basic setup Wizard. The configuration now needs to

be entered into the DFL-600’s non-volatile RAM. Clicking Restart will save

the configuration to non-volatile RAM and restart the router.
