2-6
SUPERSERVER 6017R-TDF User's Manual
Installing the Outer Rails to the Rack
1. Attach the longer section of the outer rail to the outside of the shorter section
of the outer rail. You must align the pins with the slides. Both ends of the
outer rail must face the same direction in order to be secured to the rack.
2. Adjust both sections of the outer rail to the proper length so that the rail fi ts
snugly within the rack.
3. Secure the longer section of the outer rail to the of the rack with two M5
screws and the shorter section to the rear side of the rack with two M5
screws.
4. Repeat steps 1-4 for the remaining outer rail.
Secure to the
Front of the Rack
Secure to the
Rear of the Rack

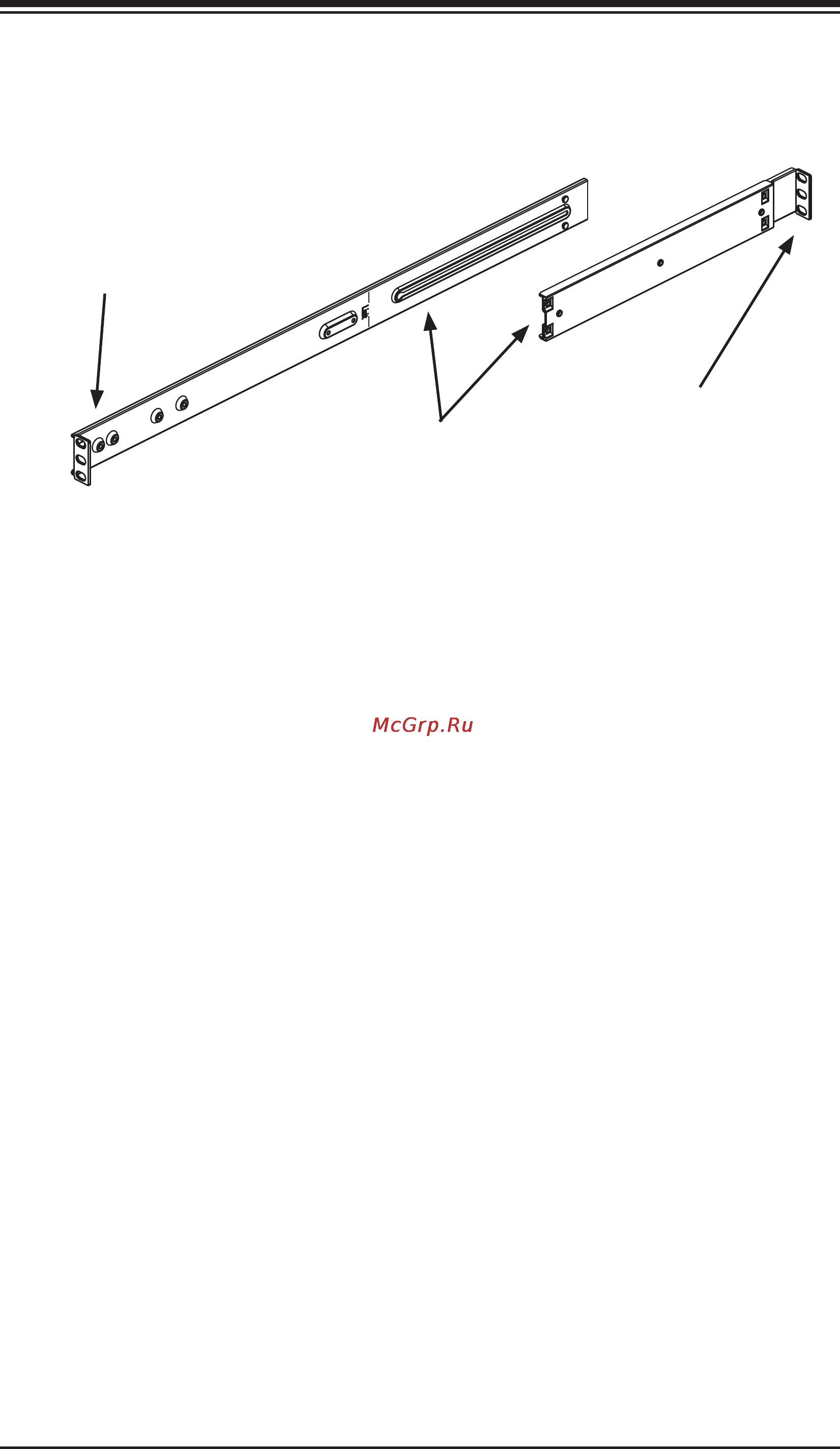

Figure 2-3. Assembling the Outer Rails
Attach the Two Sections of the
Outer Rail Together
