5-8
SUPERSERVER 6017R-TDF User's Manual
5-5 Installing Memory
Note: Check the Supermicro web site for recommended memory modules.
CAUTION
Exercise extreme care when installing or removing DIMM modules
to prevent any possible damage.
Installing DIMMs
1. Insert the desired number of DIMMs into the memory slots, starting with slots
DIMM1A. Pay attention to the notch along the bottom of the module to pre-
vent inserting the DIMM module incorrectly. See Figure 5-4.
2. Gently press down on the DIMM module until it snaps into place in the slot.
Repeat fstep 1 to install to DIMM1B if needed.
Memory Support
The X9DRD-iF supports up to 256 GB of registered ECC DDR3-1600/1333/1066/800
RDIMM memory in four channels. For the latest memory updates, please refer to
our website. Please follow the tables below for correct installation.

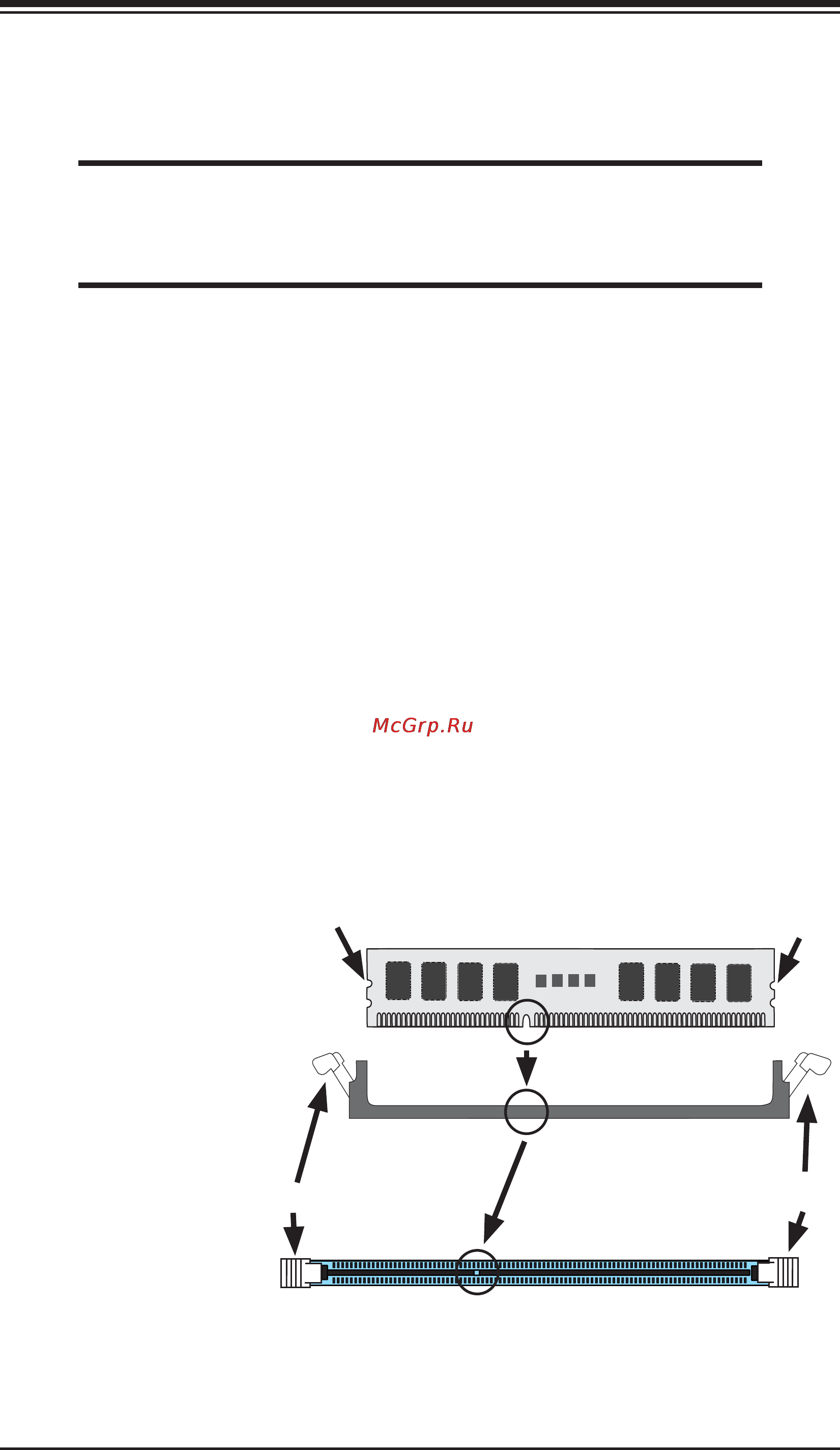

Figure 5-4. Installing DIMM into Slot
To Install: Insert module
vertically and press
down until it snaps into
place. Pay attention to
the alignment notch at
the bottom.
To Remove:
Use your thumbs to
gently push the release
tabs near both ends of
the module. This should
release it from the slot.
Top View of DDR3 Slot
Release Tab
Release Tab
Note: Notch should align
with the receptive key
point on the slot.
Notch
Notch
Front View
