Supermicro sys-6017r-tdf [97/106] 6 security

Chapter 7: BIOS

7-29

Administrator Password

Use this feature to set the Administrator Password which is required to enter the

BIOS setup utility. The length of the password should be from 3-characters to

8-characters long.

User Password

Use this feature to set a User Password which is required to log into the system

and to enter the BIOS setup utility. The length of the password should be from 3

characters ~ 8 characters long.

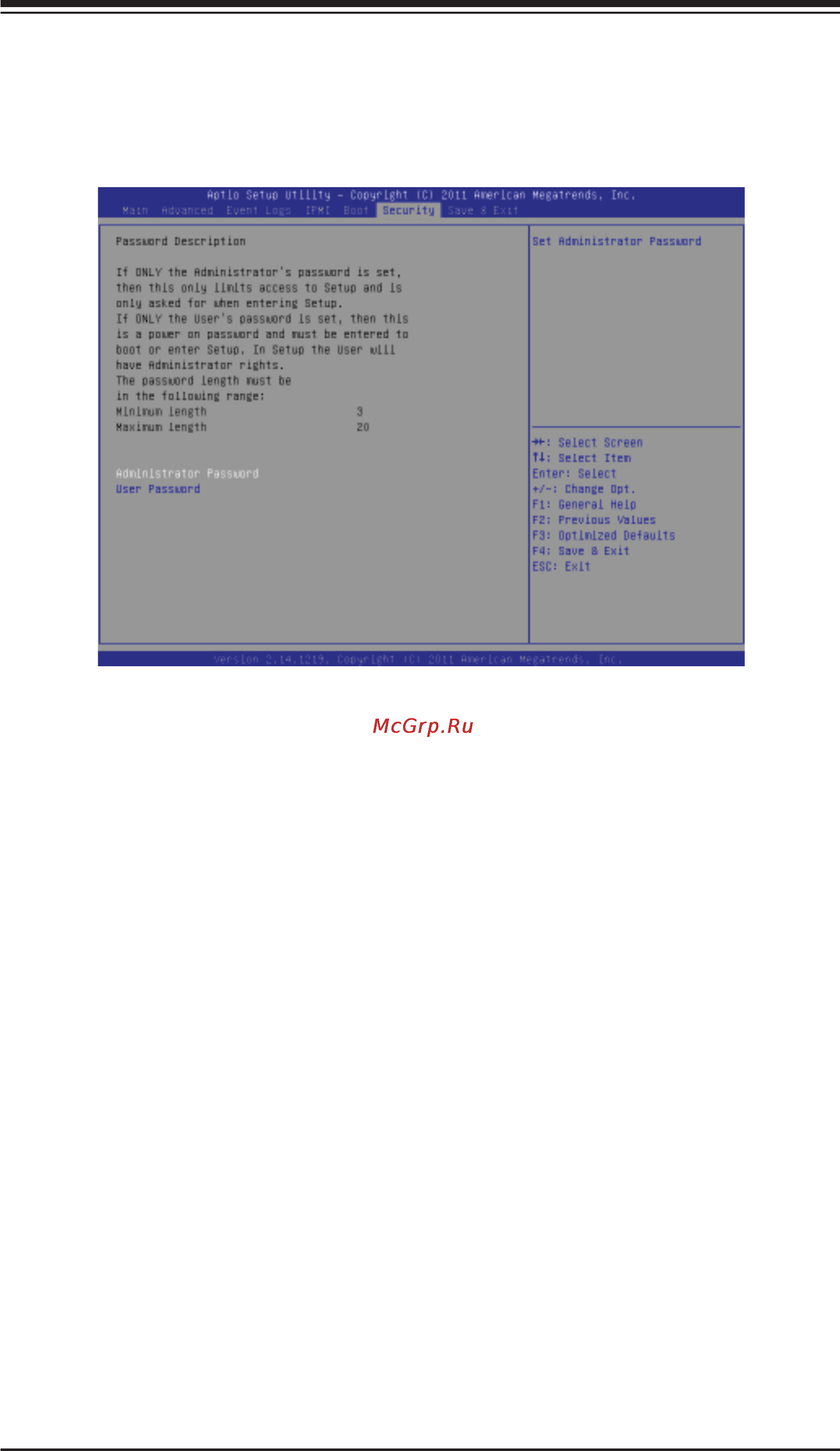

7-6 Security

This menu allows the user to conﬁ gure the following security settings for the

system.
