Chapter 5: Advanced Serverboard Setup
5-7

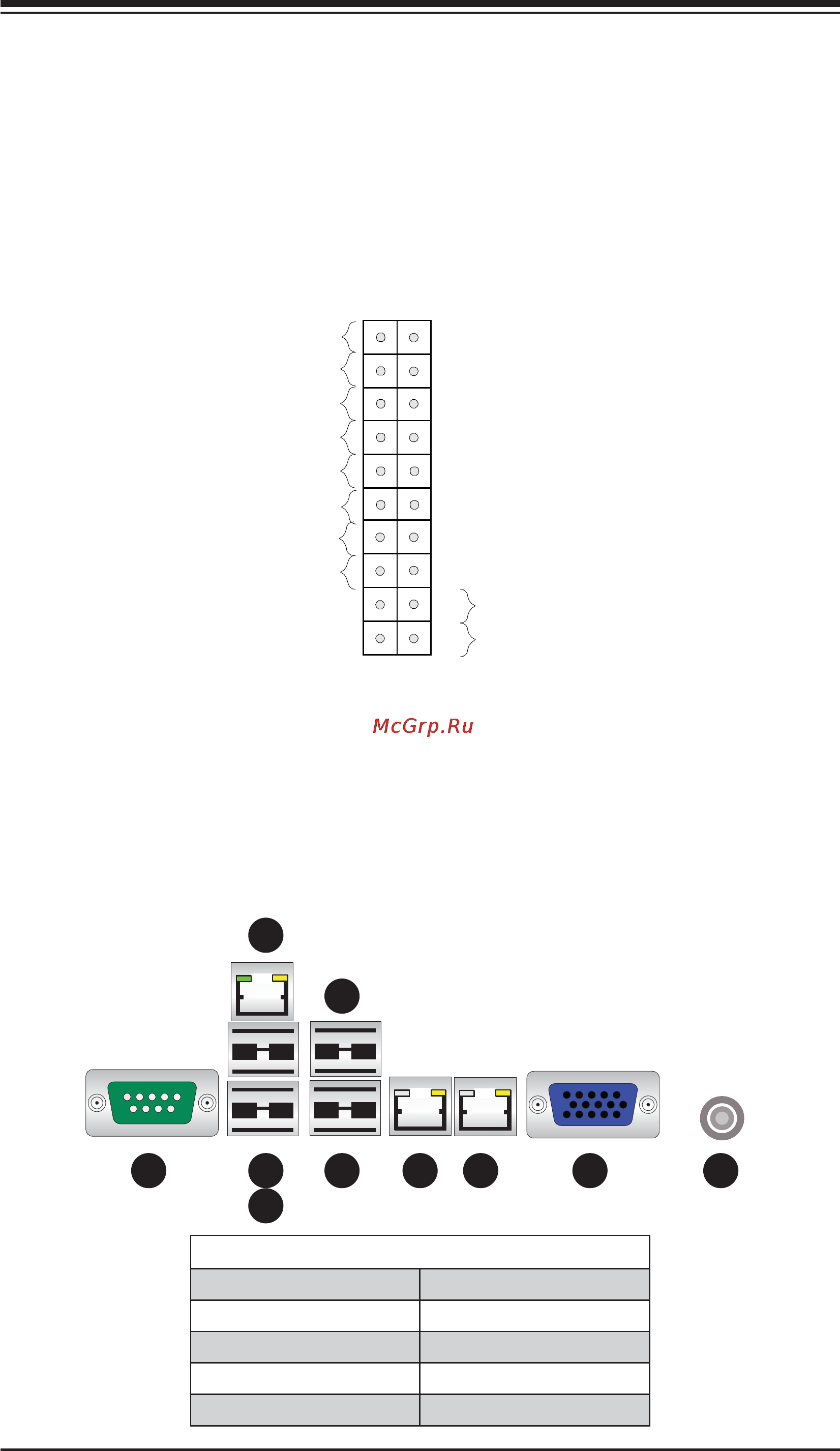

Figure 5-2. Front Control Panel Header Pins (JF1)
All JF1 wires have been bundled into single keyed ribbon cable to simplify their con-
nection. Connect one end of this cable to JF1 and the other end to the Control Panel
printed circuit board, located just behind the system status LEDs in the chassis.
See the Connector Defi nitions section in this chapter for details and pin descrip-
tions of JF1.
5-4 I/O Ports
The I/O ports are color coded in conformance with the PC 99 specifi cation. See
Figure 5-3 below for the colors and locations of the various I/O ports.
Figure 5-3. Rear Panel I/O Ports
1
2
3
4
5
6
7 8 9
1
10
Backplane I/O Ports
1. COM1 Port 6. USB Port 3
2. USB Port 0 7. LAN Port 1
3. USB Port 1 8. LAN Port 2
4. Dedicated IPMI LAN 9. VGA Port
5. USB Port 2 10. UID Switch
Power Button
Blue+ (OH/Fan Fail/
PWR FaiL/UID LED)
1
NIC1 Link LED
Reset Button
2
Power Fail LED
HDD LED
FP PWRLED
Reset
PWR
3.3 V
ID_UID_SW/3/3V Stby
Red+ (Blue LED Cathode)
Ground
Ground
1920
3.3V
X
Ground
NMI
X
NIC2 Link LED
NIC2 Activity LED
NIC1 Activity LED
