5-26

SUPERSERVER 6017R-TDF User's Manual

Note: The SuperDoctor III program and User's Manual can be the

Supermicro web site at http://www.supermicro.com/products/accessories/software/

SuperDoctorIII.cfm.

For Linux, we recommend using SuperDoctor II.

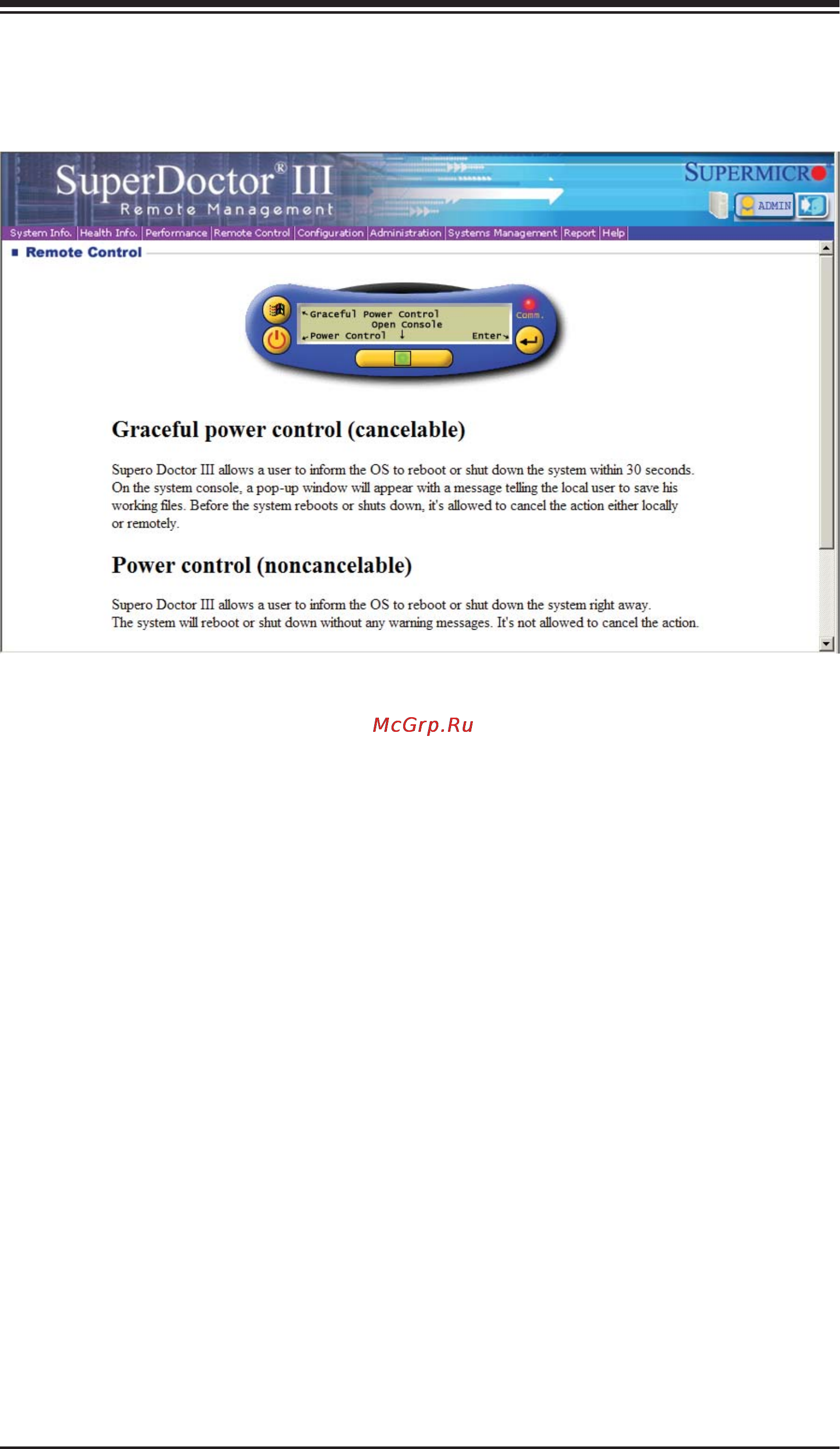

SuperDoctor III Interface Display Screen (Remote Control)
