2-8
X10DRC/i-LN4+/-T4+ Motherboard User’s Manual

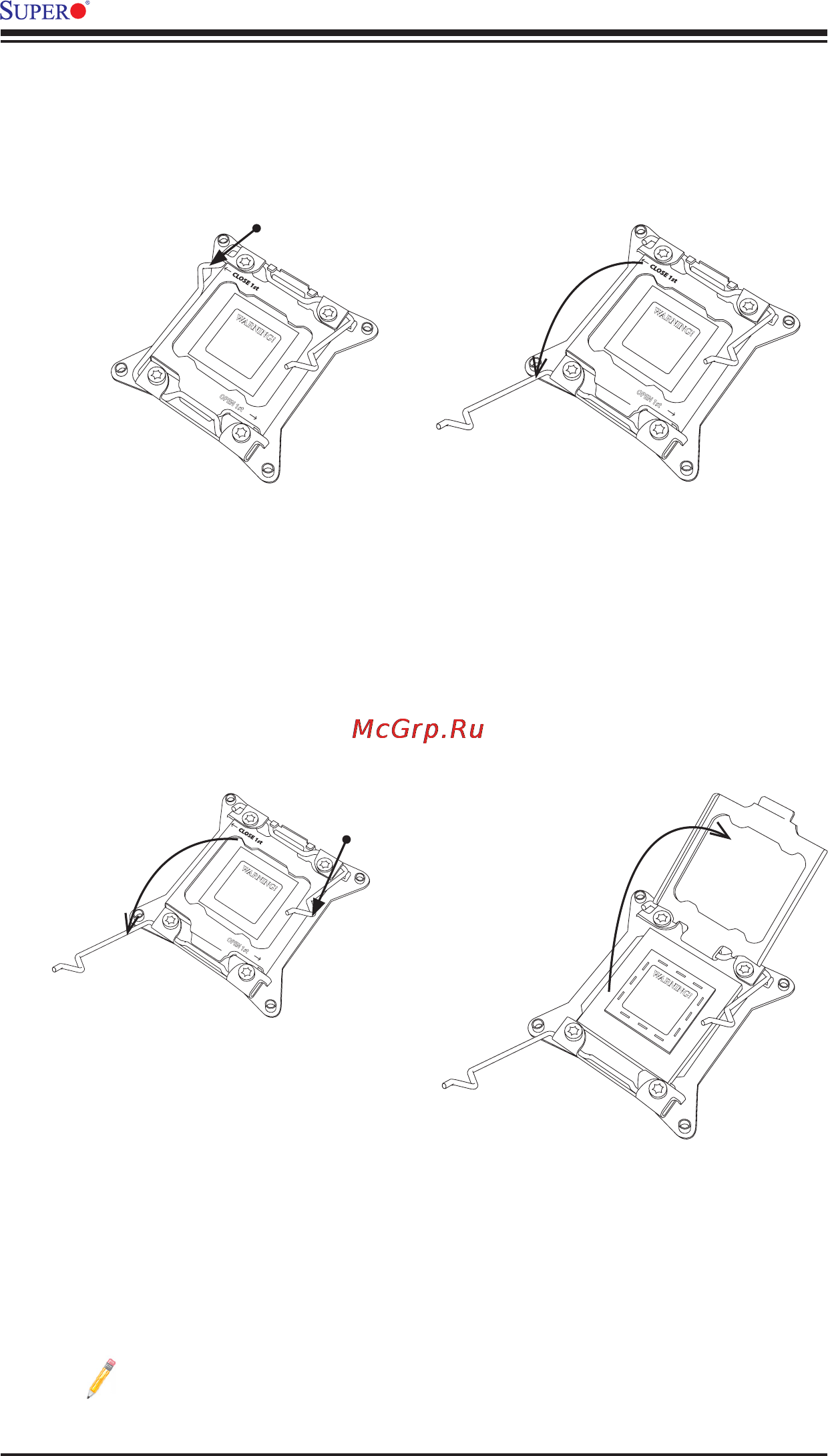

Gently push the
lever down to pop
the load plate open.
2. Press the second load lever labeled 'Close 1st' to release the load plate that
covers the CPU socket from its locking position.
3. With the lever labelled 'Close 1st' fully retracted, gently push down on the
lever labelled 'Open 1st' to open the load plate. Lift the load plate to open it
completely.
OPEN 1st
WARNING!
OPEN 1st
WARNING!
1
2
Press down on the
Load
Lever
labeled
'Close 1st'
WARNING!
OPEN 1st
WARNING!
1
Pull the lever away
from the socket
2
Note: All graphics, drawings and pictures shown in this manual are for il-
lustration only. The components that came with your machine may or may
not look exactly the same as those shown in this manual.
