PT-7528 Series Advanced Settings

4-16

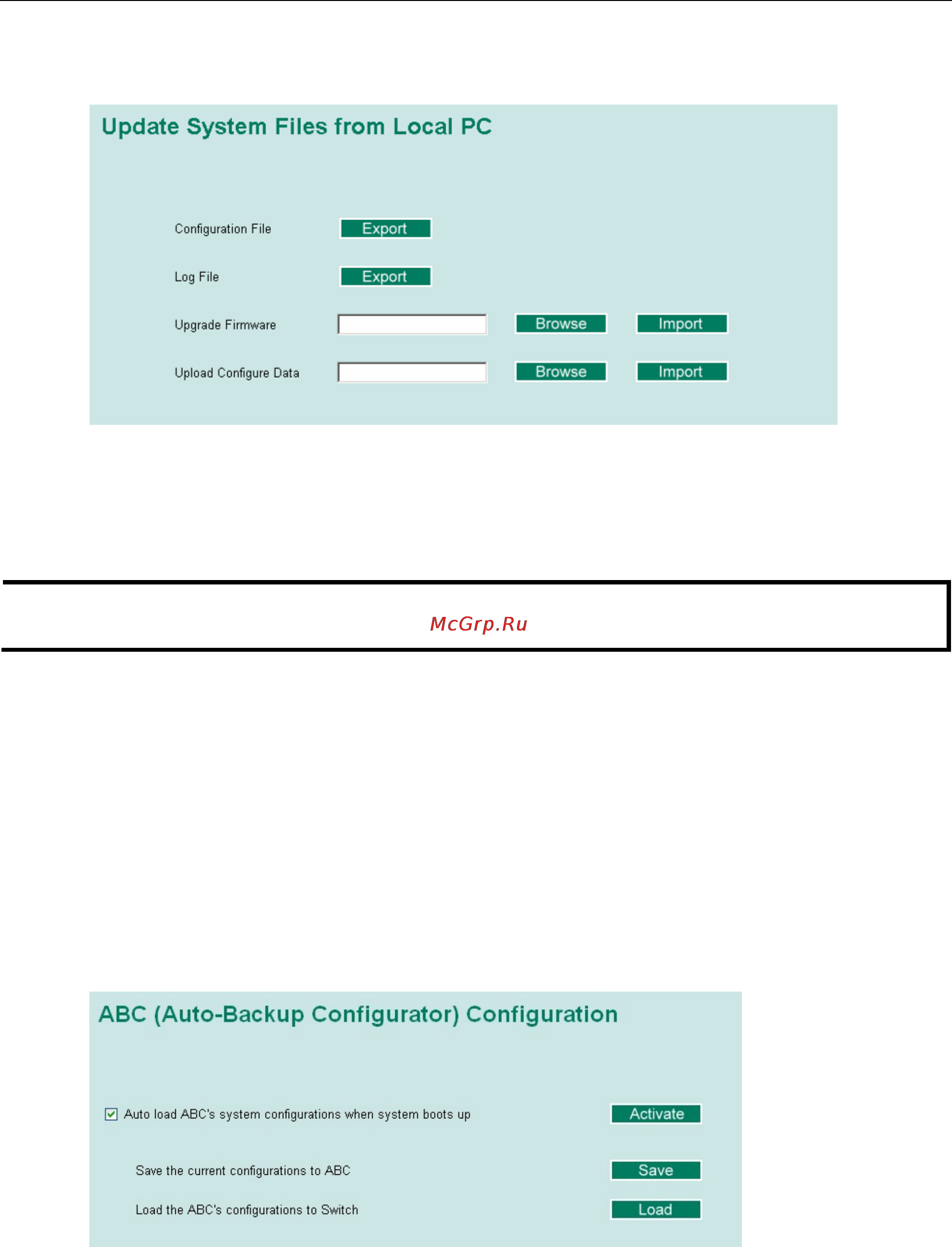

Update System Files from Local PC

Configuration File

Click Export to save the Moxa switch’s configuration file to the local host.

Log File

Click Export to save the Moxa switch’s log file to the local host.

NOTE

Some operating

systems will open the configuration file and log file directly in the web page. In such cases,

right click the Export button to save the file.

Upgrade Firmware

To import a new firmware file into the Moxa switch, click Browse to select the firmware file that is saved on

your computer. The upgrade procedure will proceed automatically after clicking Import.

Upload Configure Data

To import a configuration file into the Moxa switch, click Browse to select the configuration file already saved

on your computer. The upgrade procedure will proceed automatically after clicking Import.

ABC (Auto-Backup Configurator) Configuration

You can use Moxa’s Automatic Backup Configurator to save and load the Moxa switch’s configurations through

the switch’s RS-232 console port.
