PT-7528 Series Advanced Settings

4-46

Forbidden VLAN List

Setting Description Factory Default

VID ranges from 1 to

4094

This field will be active only when selecting the Trunk or Hybrid

port type. Set the other VLAN IDs that will not be supported by

this port. Use commas to separate different VIDs.

None

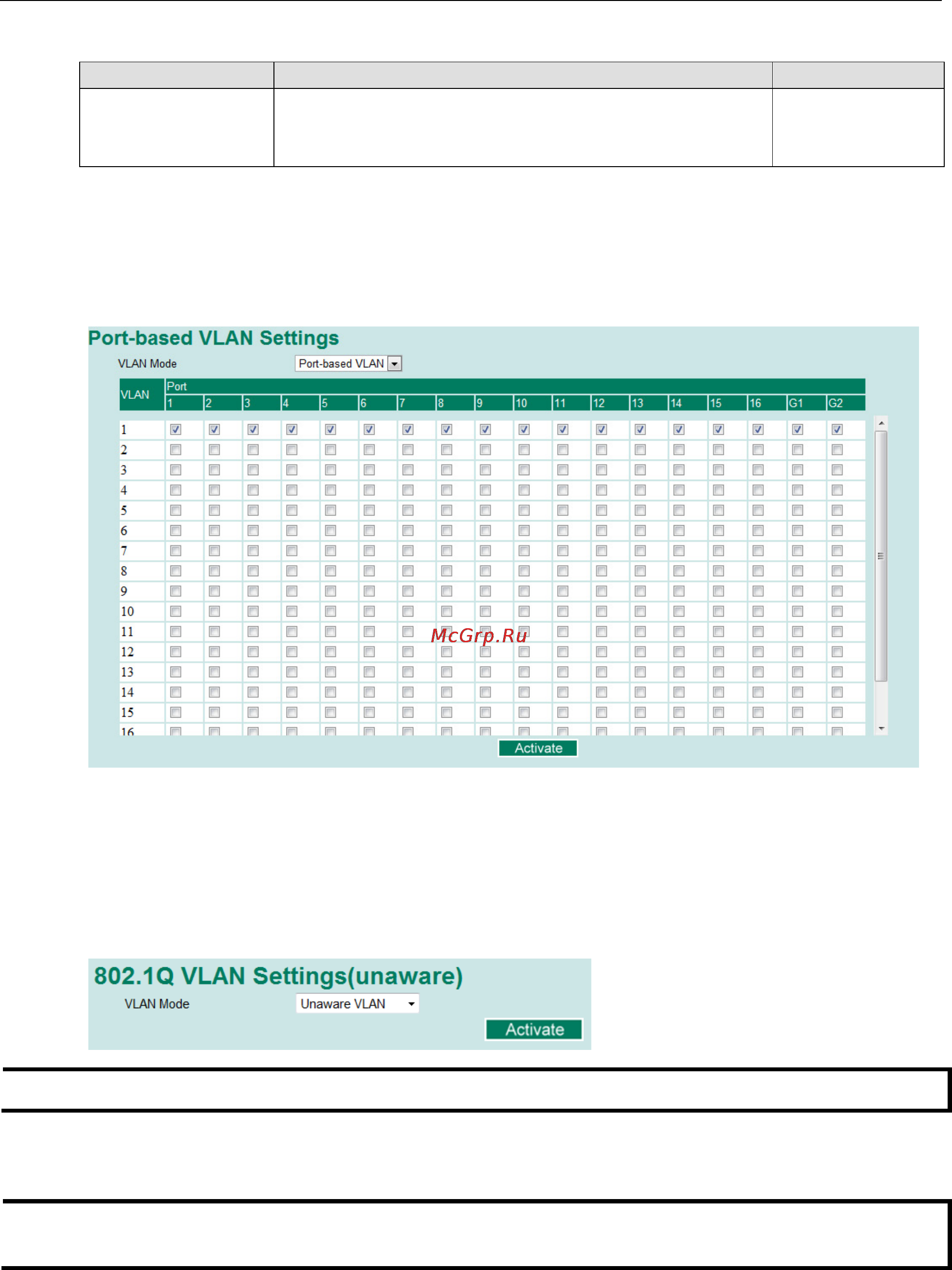

Port-Based VLAN Settings

Check each specific port to assign its VLAN ID in the table. The maximum VLAN ID is the same as your number

of switch ports.

Unaware VLAN Settings

The Unaware VLAN function provides users a flexible operation in a VLAN network. Switches which are set on

Unaware VLAN mode do not check the VLAN tags of input Ethernet frame. All of VLAN tags can always in and

out of the Unaware VLAN switch, and the switch won’t affect the VLAN tags of Ethernet frames.

NOTE

When users enable

Unaware VLAN function, all of ports are set as unaware VLAN ports.

QinQ Setting

NOTE

Moxa layer 3

switches provide the IEEE 802.1ad QinQ function. T

his function allows users to tag double VLAN

headers into one single Ethernet frame
