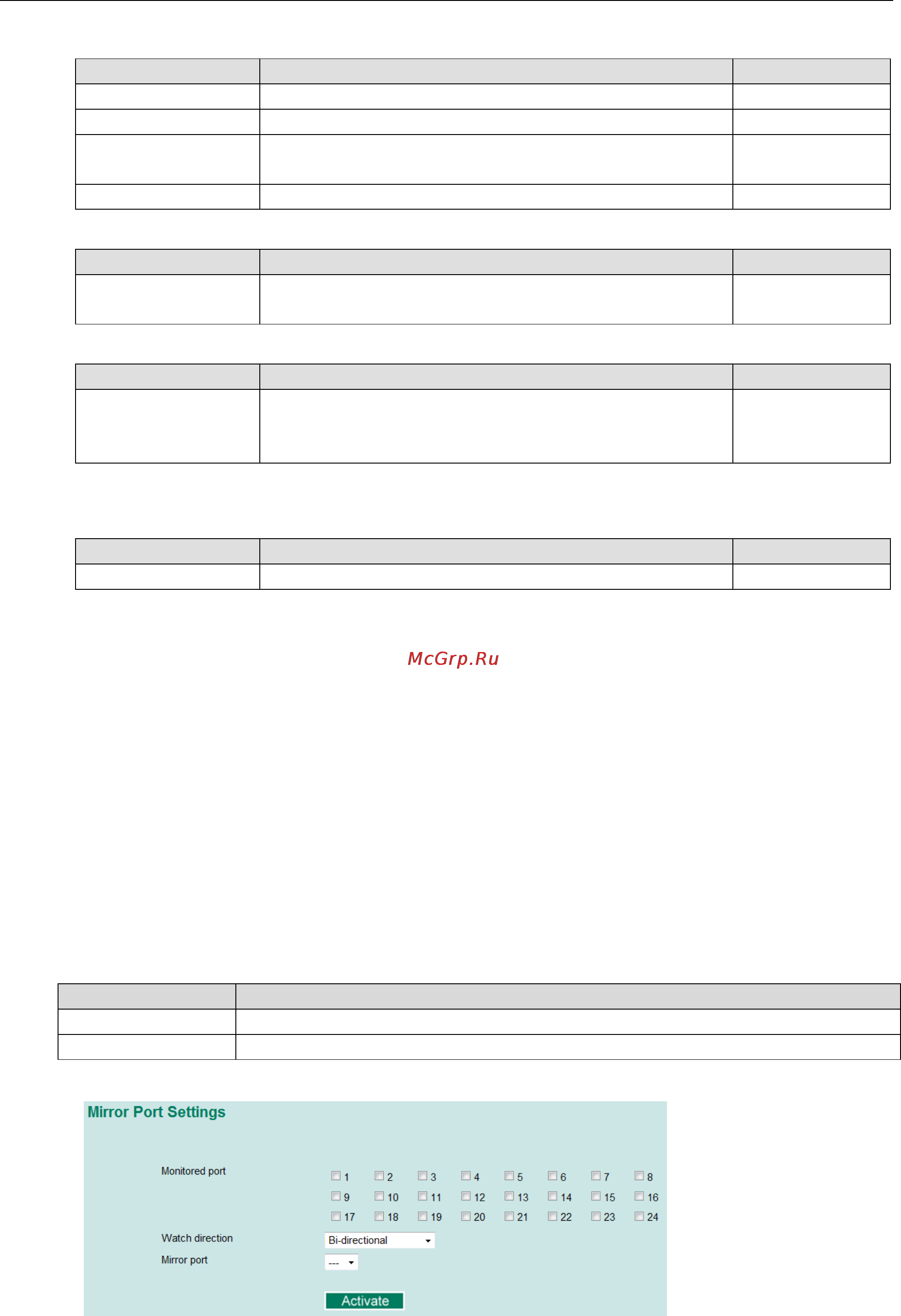

PT-7528 Series Advanced Settings

4-73

Type

Setting Description Factory Default

IP Uses the switch’s IP address as the remote ID sub. IP

MAC Uses the switch’s MAC address as the remote ID sub. IP

Client-ID

Uses a combination of the switch’s MAC address and IP address

as the remote ID sub.

Other Uses the user-designated ID sub. IP

Value

Setting Description Factory Default

Max. 12 characters Displays the value that was set. Complete this field if type is set

to Other.

Switch IP address

Display

Setting Description Factory Default

read-only The actual hexadecimal value configured in the DHCP server for

the Remote-ID. This value is automatically generated

according to the Value field. Users cannot modify it.

COA87FFD

DHCP Function Table

Enable

Setting Description Factory Default

Enable or Disable Enable or disable the DHCP Option 82 function for this port. Disable

Using Diagnosis

The Moxa switch provides three important tools for administrators to diagnose network systems.

Mirror Port

The Mirror Port function can be used to monitor data being transmitted through a specific port. This is done by

setting up another port (the mirror port) to receive the same data being transmitted from, or both to and from, the

port under observation. Using a mirror port allows the network administrator to sniff the observed port to keep tabs

on network activity.

Please note that two types of mirror port settings are available, depending on the specific model of switch. In Type

1, the switches support multi-to-one and one-to-one mirror function. In Type 2, the switches support only

one-to-one mirror function.

Type Models Supported

Type 1 EDS-728/828, IKS-6726/6726-8PoE/6728/G6524/G6824, ICS-G7000 Series

Type 2

EDS 400A/500A/600 Series, EDS-P506A-4PoE/P510/P510A-8PoE/G509

Type 1
