PT-7528 Series Advanced Settings
4-72

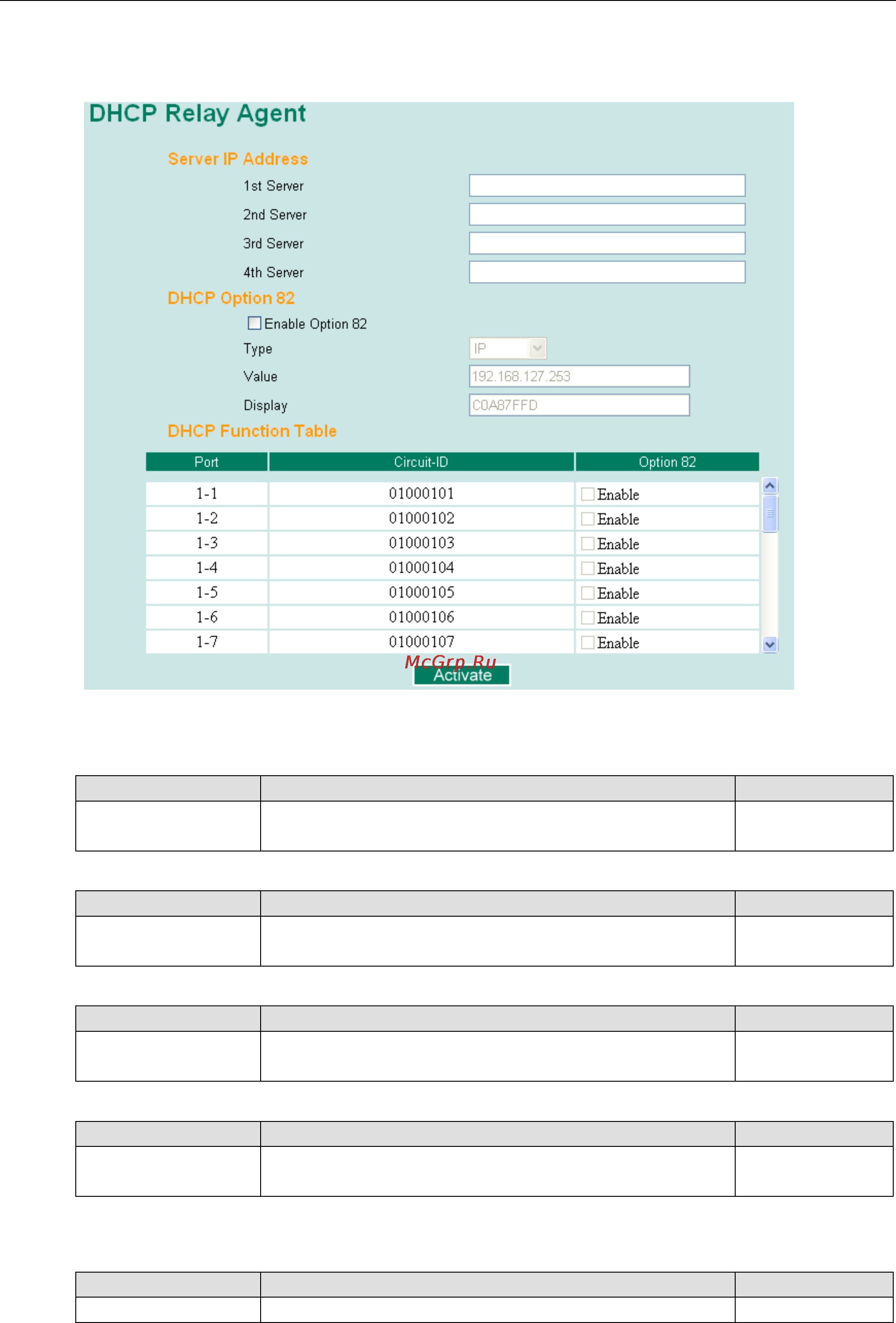

Configuring DHCP Relay Agent
Server IP Address
1st Server
Setting Description Factory Default
IP address for the 1st
DHCP server
Assigns the IP address of the 1st DHCP server that the switch
tries to access.
None
2nd Server
Setting Description Factory Default
IP address for the 2nd
DHCP server
Assigns the IP address of the 2nd DHCP server that the swit
ch
tries to access.
None
3rd Server
Setting Description Factory Default
IP address for the 3rd
DHCP server
Assigns the IP address of the 3rd DHCP server that the switch
tries to access.
None
4th Server
Setting Description Factory Default
IP address for the 4th
DHCP server
Assigns the IP address of the 4th DHCP server that the switch
tries to access.
None
DHCP Option 82
Enable Option 82
Setting Description Factory Default
Enable or Disable Enable or disable the DHCP Option 82 function. Disable
