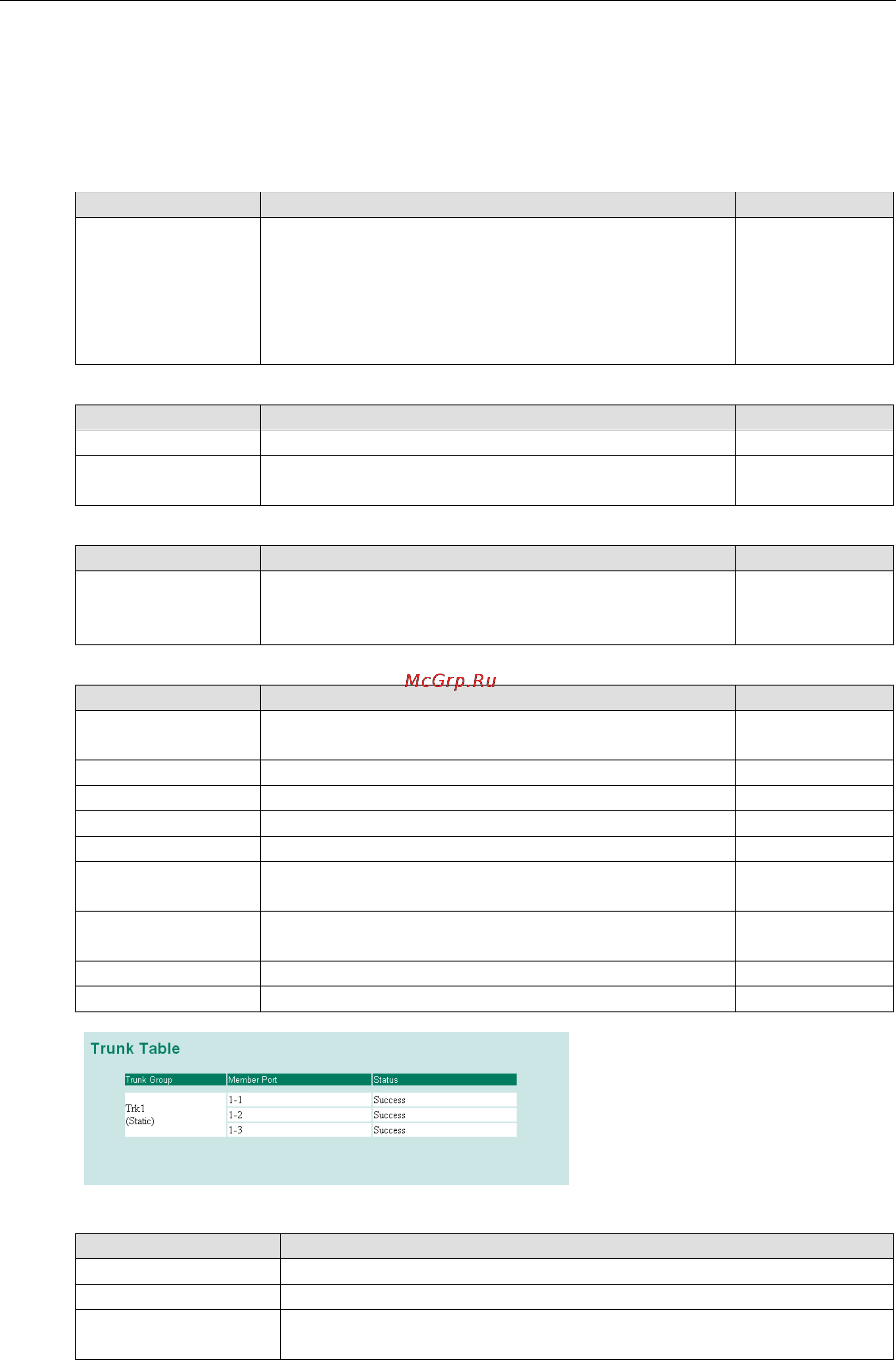

PT-7528 Series Advanced Settings
4-19
Step 1: Select the desired Trunk Group
Step 2: Select the Trunk Type (Static or LACP).
Step 3: Select the Trunk mode.
Step 4: Select the desired ports under Available Ports and click Up to add to the Trunk Group.
Step 5: Select the desired ports under Member Ports and click Down to remove from the group.
Trunk Group (maximum of 4 trunk groups)
Setting Description Factory Default
Trk1, Trk2, Trk3, Trk4
(depends on switching
chip capability; some
Moxa switches only
support 3 trunk
groups)
Specifies the current trunk group. Trk1
Trunk Type
Setting Description Factory Default
Static Selects Moxa’s proprietary trunking protocol. Static
LACP Selects LACP (IEEE 802.3ad, Link Aggregation Control
Protocol).
Static
Trunk Mode
Setting Description Factory Default
SA xor DA, SA, DA, SIP,
DIP,SIP xor DIP
Trunk mode represents the algorithm of load balance. SA xor
DA optimizes the performance of load balance and is highly
recommended.
SA xor DA
Available Ports/Member Ports
Setting Description Factory Default
Member/Available
ports
Lists the ports in the current trunk group and the ports that are
available to be added.
N/A
Check box Selects the port to be added or removed from the group. Unchecked
Port How each port is identified. N/A
Port description Displays the media type for each port. N/A
Name Displays the specified name for each port. N/A
Speed Indicates the transmission speed for each port (1G-Full,
100M-Full, 100M-Half, 10M-Full, or 10M-Half).
N/A
FDX flow control Indicates if the FDX flow control of this port is enabled or
disabled.
N/A
Up Add selected ports into the trunk group from available ports. N/A
Down Remove selected ports from the trunk group. N/A
Trunk Table
Setting Description
Trunk group Displays the trunk type and trunk group.
Member port Displays the member ports that belong to the trunk group.
Status • Success means port trunking is working properly.
• Fail means port trunking is not working properly.
