PT-7528 Series Advanced Settings

4-75

PC keyboard, the actual ping command originates from the Moxa switch itself. In this way, the user can

essentially sit on top of the Moxa switch and send ping commands out through its ports.

To use the Ping function, type in the desired IP address, and then press Enter from the Console utility, or click

Ping when using the Web Browser interface.

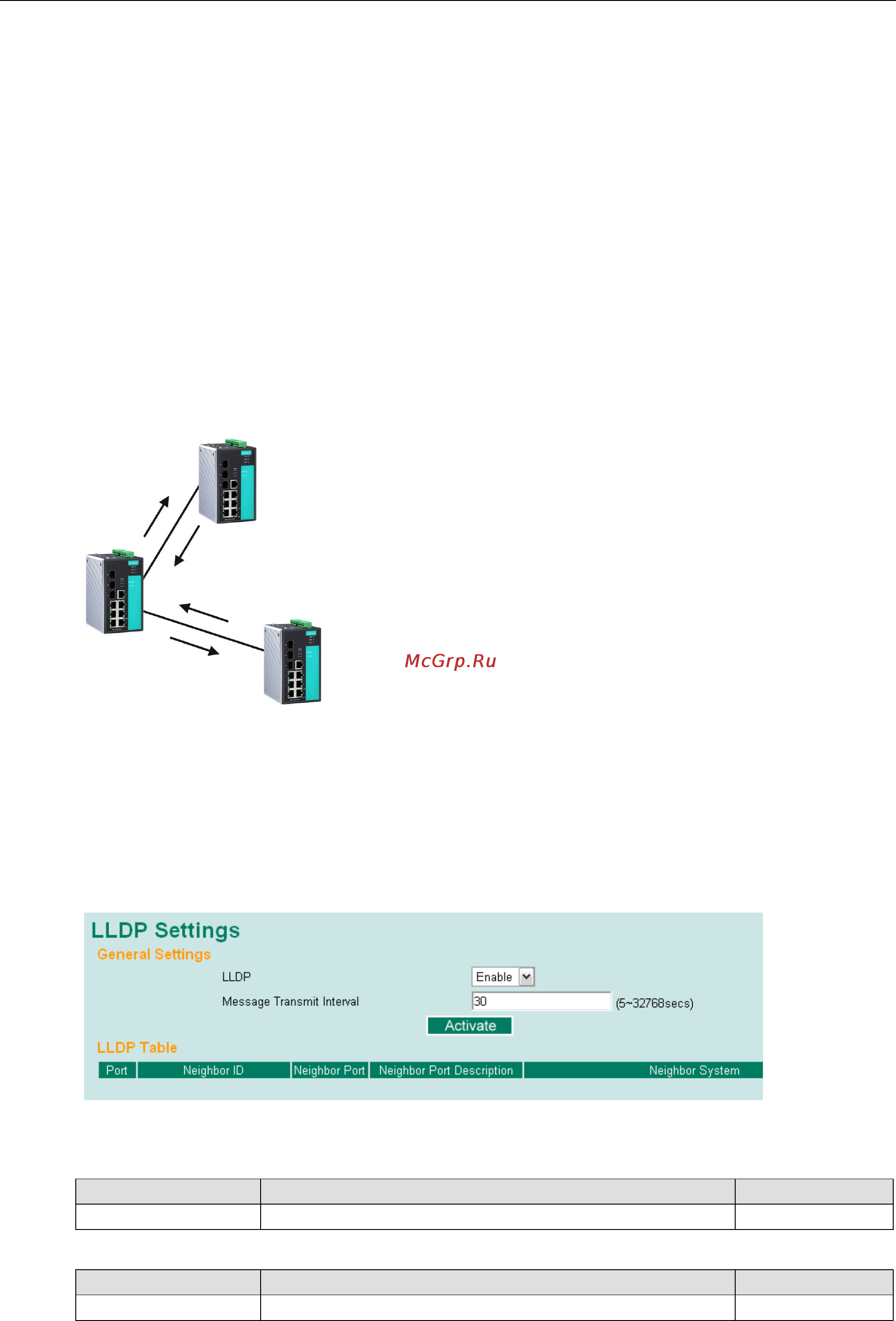

LLDP Function

Overview

LLDP is an OSI Layer 2 protocol defined by IEEE 802.11AB. LLDP standardizes the self-identification

advertisement method, and allows each networking device, such as a Moxa managed switch, to periodically

send its system and configuration information to its neighbors. Because of this, all LLDP devices are kept

informed of each other’s status and configuration, and with SNMP, this information can be transferred to Moxa’s

MXview for auto-topology and network visualization.

From the switch’s web interface, you can enable or disable LLDP, and set the LLDP transmit interval. In addition,

you can view each switch’s neighbor-list, which is reported by its network neighbors. Most importantly,

enabling the LLDP function allows Moxa’s MXview to automatically display the network’s topology and system

setup details, such as VLAN and Trunking, for the entire network.

Configuring LLDP Settings

General Settings

LLDP

Setting Description Factory Default

Enable or Disable Enables or disables the LLDP function. Enable

Message Transmit Interval

Setting Description Factory Default

5 to 32768 sec. Sets the transmit interval of LLDP messages, in seconds. 30 (seconds)
