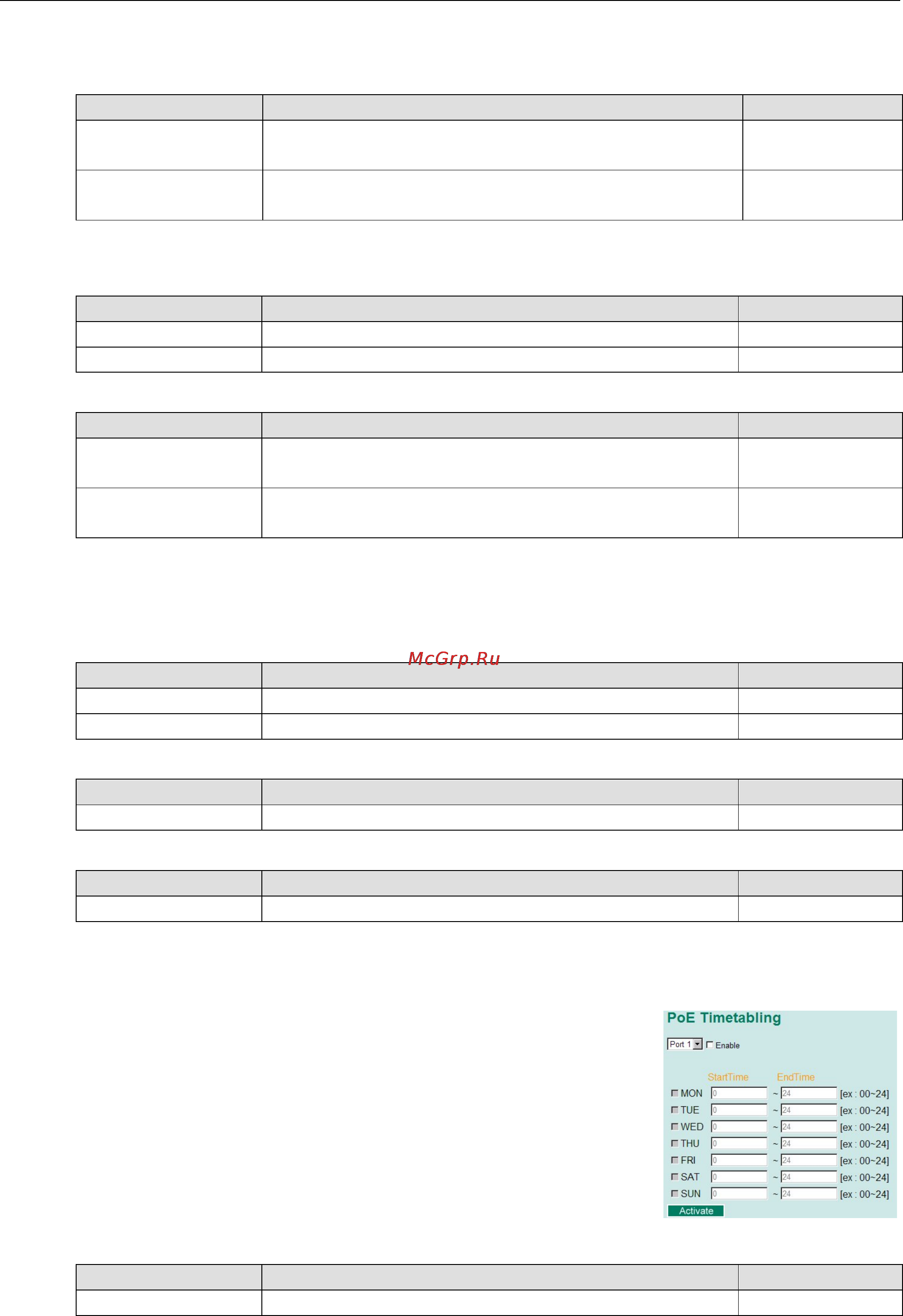

PT-7528 Series Advanced Settings

4-24

PoE Power Budget

Indicates the PoE power that can be supplied by the system

Setting Description Factory Default

Auto Allows users to set the actual Power Limit value by each

individual PoE port.

Auto

Manual The user can set the power limit value that indicates the power

supplied by the system.

Port Setting

Enable

Setting Description Factory Default

Checked Allows data and power transmission through the port Enable

Unchecked Immediately shuts off port access Enable

Power Limit

Setting Description Factory Default

Auto The amount of power assigned is determined according to the

class that is read from the powered device.

Auto

Manual The user can set the power limit value that indicates the

maximum amount of power available to the port.

Auto

The PoE Ethernet switch can monitor PD working status via its IP conditions. If the PD fails, the switch will not

receive a PD response after the defined period, and the authentication process is restarted. This is an excellent

function to ensure your network reliability and reduce management burden.

PD Failure Check

Setting Description Factory Default

Checked Enables the PD Failure Check function. Auto

Unchecked Disables the PD Failure Check function. Auto

Setting Description Factory Default

Max. 15 Characters Enter the IP for the PD None

Period

Setting Description Factory Default

Max. 5 Characters Enter the time span for IP checking period None

PoE Timetabling

Powered devices usually do not need to be running 24 hours a day, 7days a

week. The PoE Ethernet switch provides a PoE timetabling mechanism to let

users set a flexible working schedule for each PoE port to economize the

system’s power burden.

Port

Setting Description Factory Default

Port Enable a dedicated port Port 1
