PCI Express Boards Software Installation
3-3

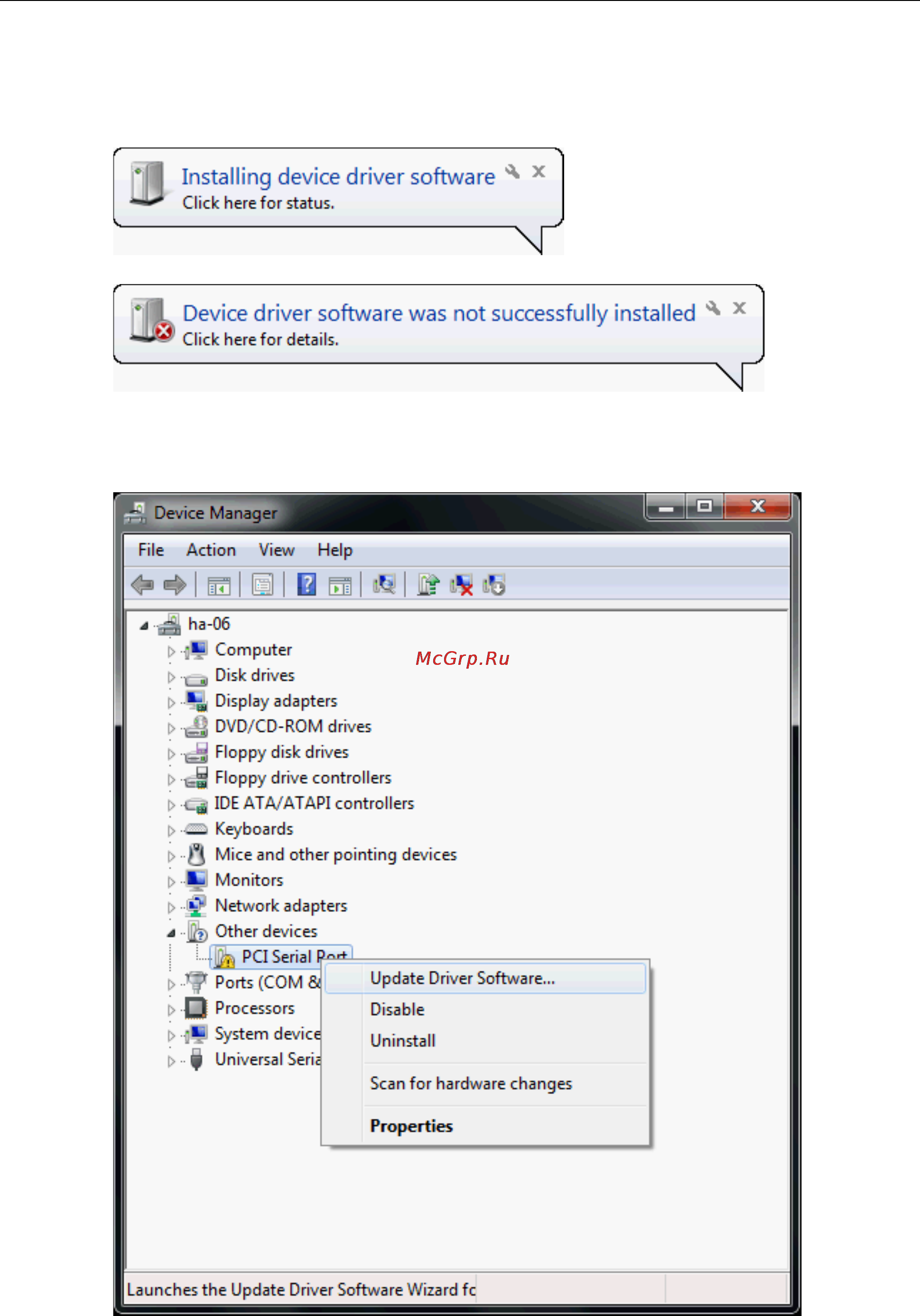

1. After plugging the board into an expansion slot and powering on your PC, Windows 7 will automatically
detect the new board, and a popup window that states Device driver software was not successfully installed
will appear in the lower right corner of your computer screen.
* (The popup message will not show in Windows 8.)
2. Go to Device Manager/Other devices to install the PCI Serial Port driver. Right click on the PCI Serial
port. Windows will offer to connect to the Windows update site to search for a driver. Select Update Driver
Software….
