PCI Express Boards Software Installation
3-20

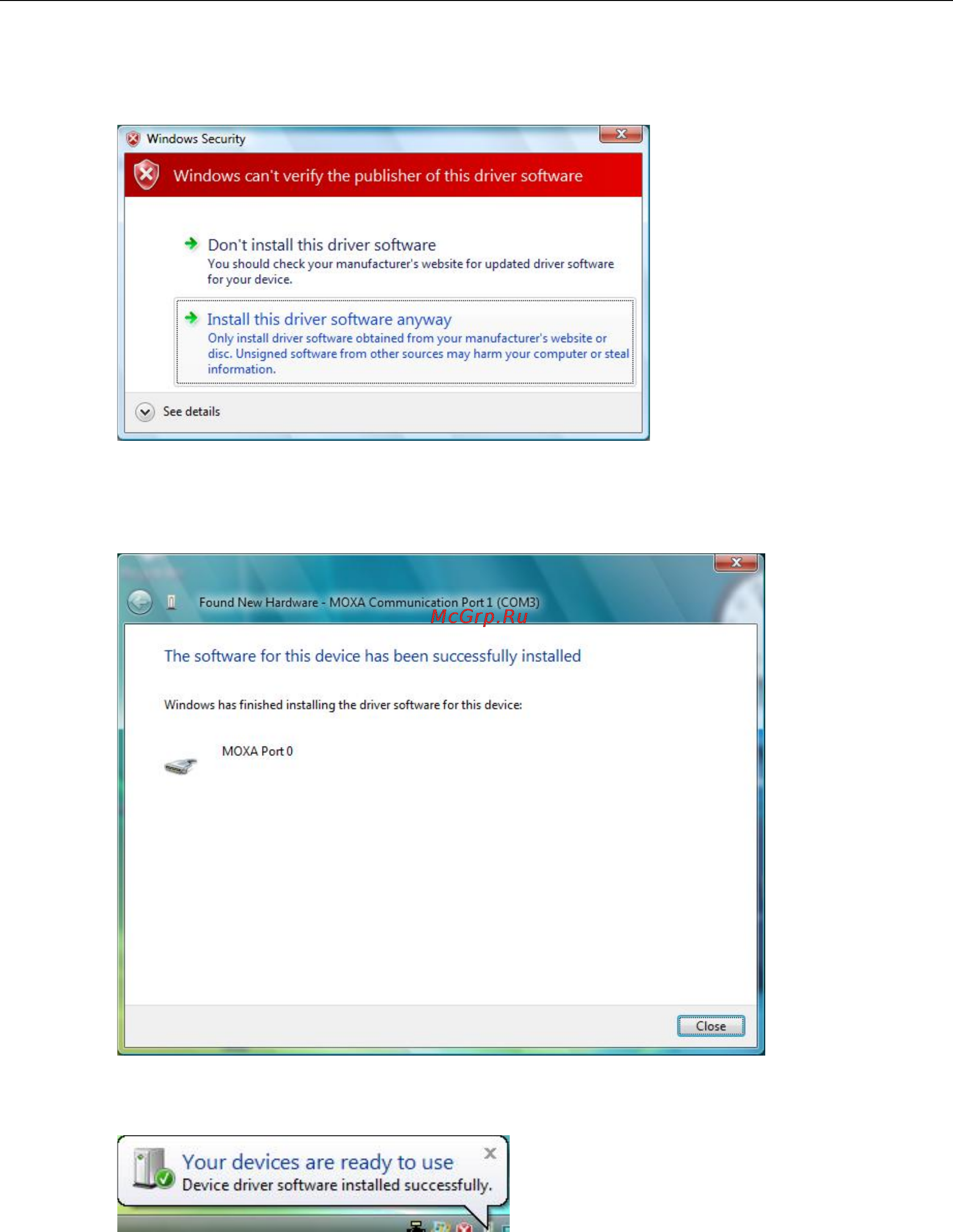

10. Wait while the installation wizard searches. The next window that opens cautions you that although this
software has not passed Windows Logo testing, the driver has been tested and shown that it can support
the Windows OS. Click Install this driver software anyway to proceed.
11. After all files have been copied to the system, the software for this device has been successfully
installed window will open to indicate that it has finished installing Port 0. Port installation procedure is
complete when Port 0 has been set up.
12. The “Your devices are ready to use” will reappear to inform you that the hardware was installed
successfully.
