PCI Express Boards Software Installation
3-31

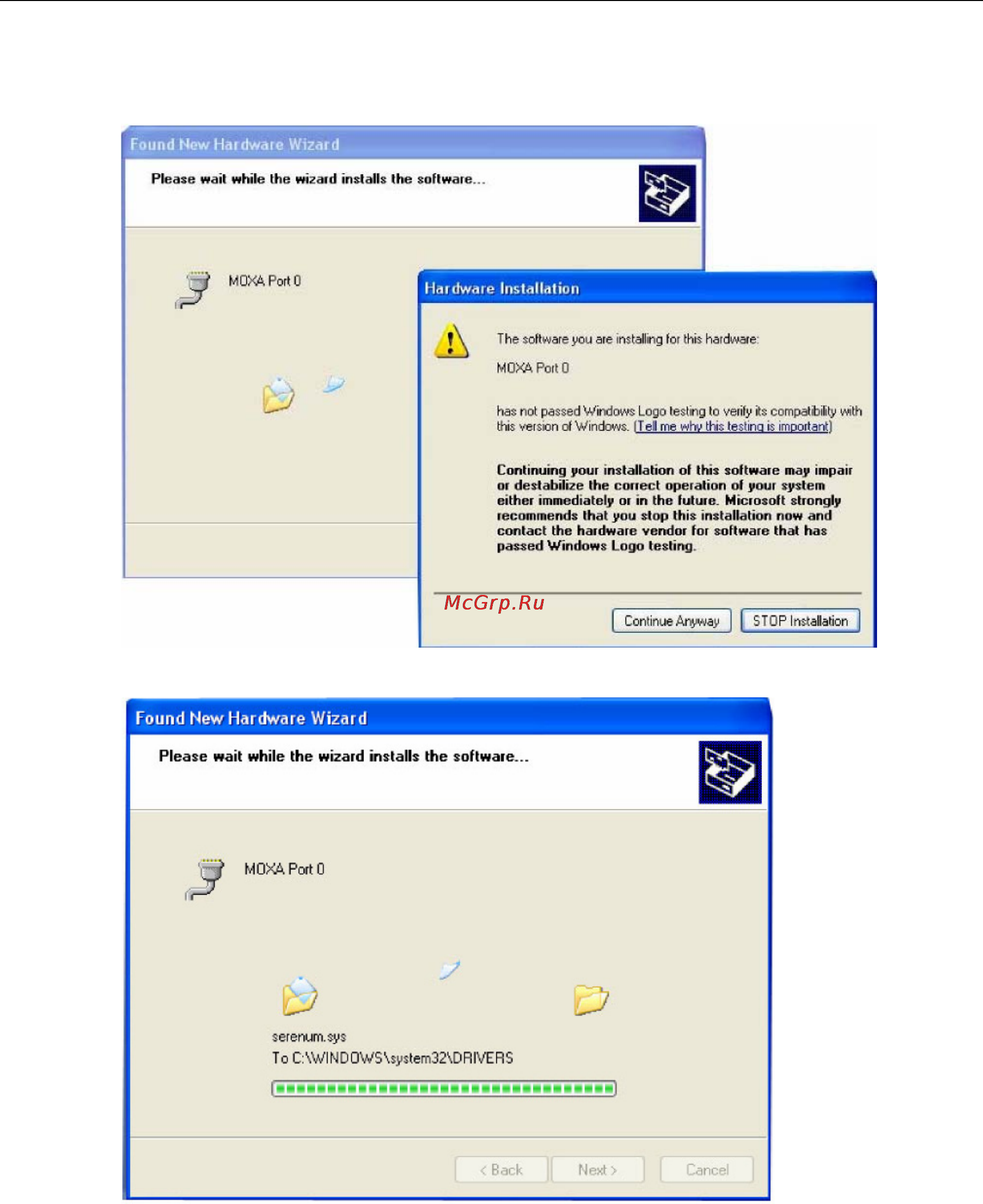

11. Wait while the installation wizard searches. The next window that opens cautions you that although this
software has not passed Windows Logo testing, the driver has been tested and shown that it can support
the Windows OS. Click Continue Anyway to proceed.
12. Wait while the wizard installs the software.
