PCI Express Boards Software Installation
3-6

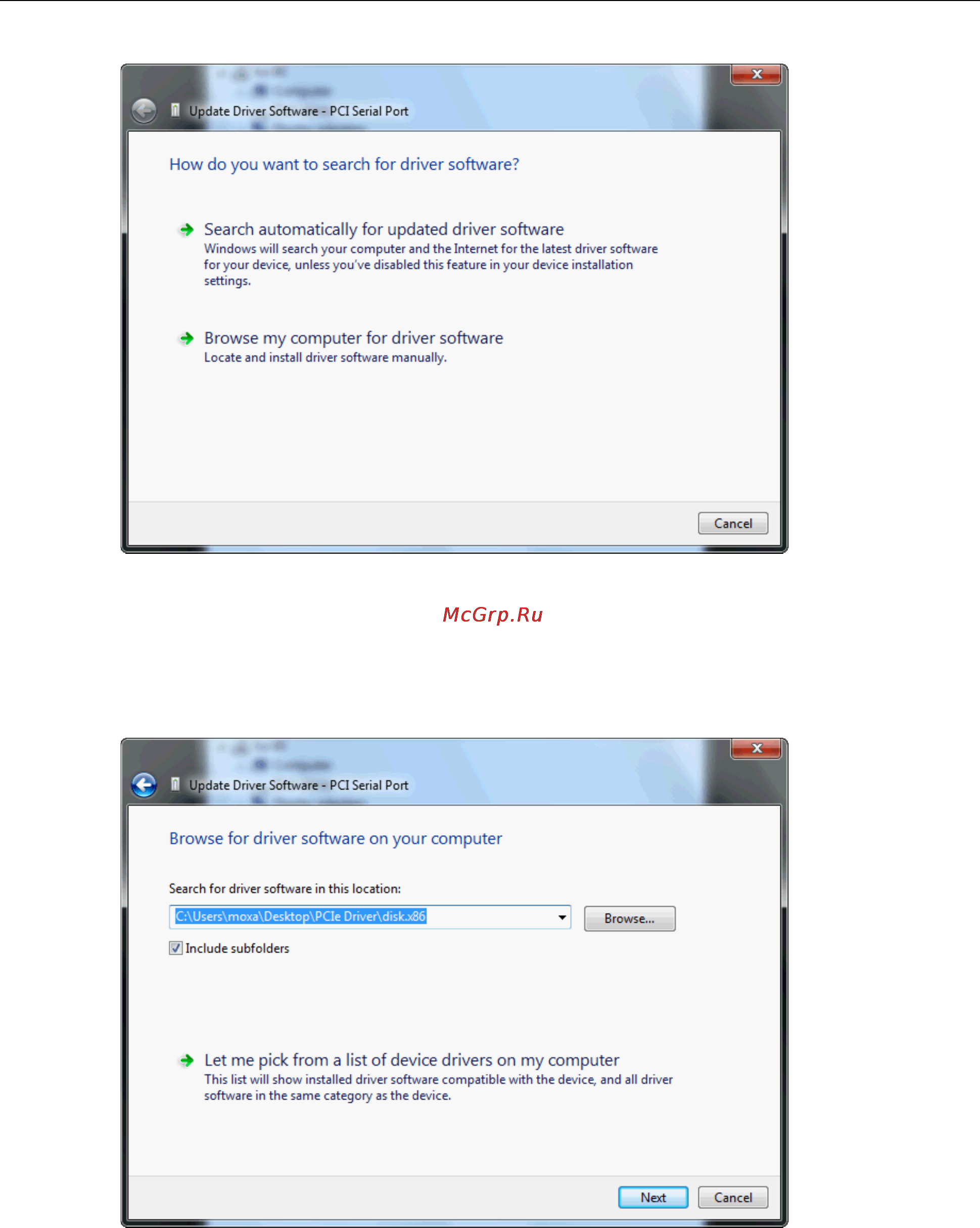

7. Select Browse my computer for device software to continue.
8. Select Search for driver software in this location, select Include subfolders, and then click Browse.
If the system is a 32-bit (x86) platform, navigate to the \CP-104EL-A Series\Software\Windows
7\x86 folder on the CD. If the system is a 64-bit (x64) platform, navigate to the \CP-104EL-A
Series\Software\Windows 7\x64 folder on the CD, and then click Next to continue.
The following figure shows the path for x86.
