PCI Express Boards Software Installation
3-26

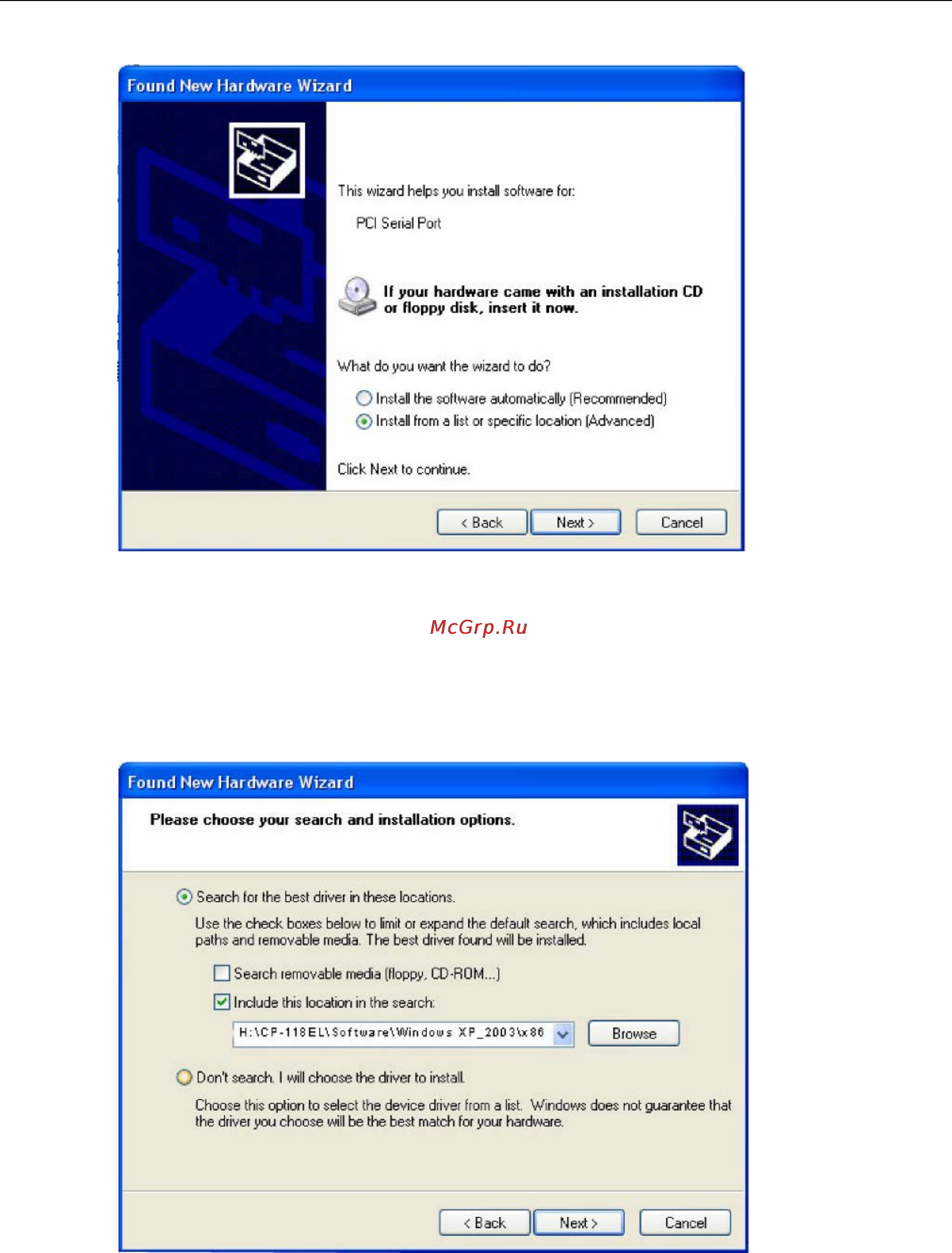

3. Select Install from a list or specific location (Advanced), and then click Next to continue
4. Select Search for the best driver in these locations, select Include this location in the
search, and then click Browse. If the system is a 32-bit (x86) platform, navigate to the \CP-118EL
Series\Software\Windows XP_2003\x86 folder on the CD. If the system is a 64-bit (x64) platform,
navigate to the \CP-118EL Series\Software\Windows XP_2003\x64 folder on the CD, and then click
Next to continue.
The following figure shows the path for x86.
