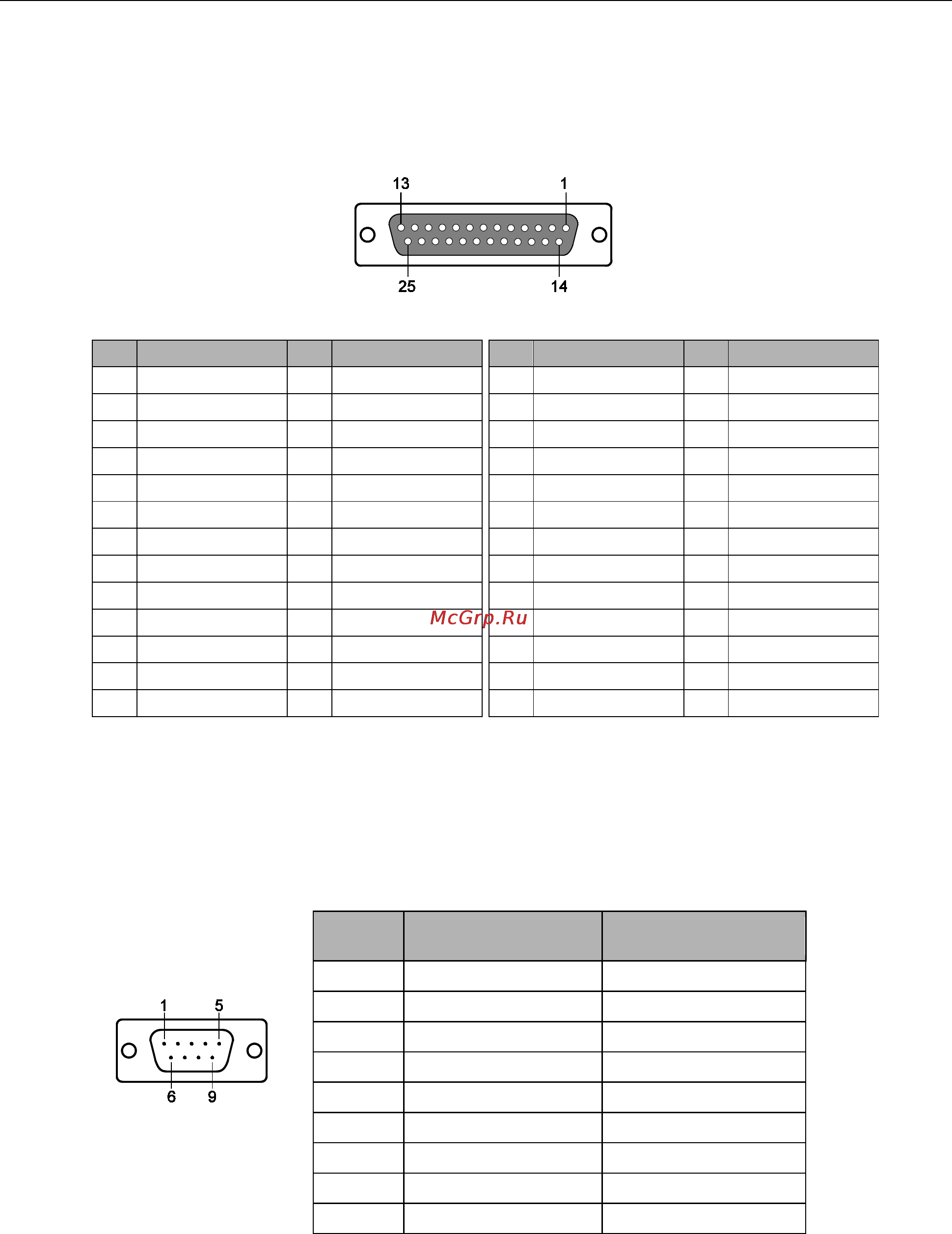

PCI Express Boards Pin Assignments
5-11
CP-132EL/CP-132EL-I
Board Side Pin Assignments—Female DB25
RS-422 & 4-wire RS-485
2-wire RS-485
Pin Signal Pin Signal
1 --- 14 ---
2 TxD1-(A) 15 RxD1-(A)
3 GND1 16 ---
4 --- 17 ---
5 TxD1+(B) 18 RxD1+(B)
6 --- 19 ---
7 --- 20 ---
8 --- 21 TxD0-(A)
9 RxD0-(A) 22 GND0
10 --- 23 ---
11 --- 24 TxD0+(B)
12 RxD0+(B) 25 ---
13 ---
Pin Signal Pin Signal
1 --- 14 ---
2 --- 15 Data1-(A)
3 GND1 16 ---
4 --- 17 ---
5 --- 18 Data1+(B)
6 --- 19 ---
7 --- 20 ---
8 --- 21 ---
9 Data0-(A) 22 GND0
10 --- 23 ---
11 --- 24 ---
12 Data0+(B) 25 ---
13 ---
Device Side Pin Assignments
Male DB9 (CBL-M25M9x2-50)
Pin
RS-422 /
4-wire RS-485
2-wire RS-485
1
TxD-(A)
---
2
TxD+(B)
---
3
RxD+(B)
Data+(B)
4
RxD-(A)
Data-(A)
5
GND
GND
6
---
---
7
---
---
8
---
---
9
---
---
