PCI Express Boards Software Installation
3-39

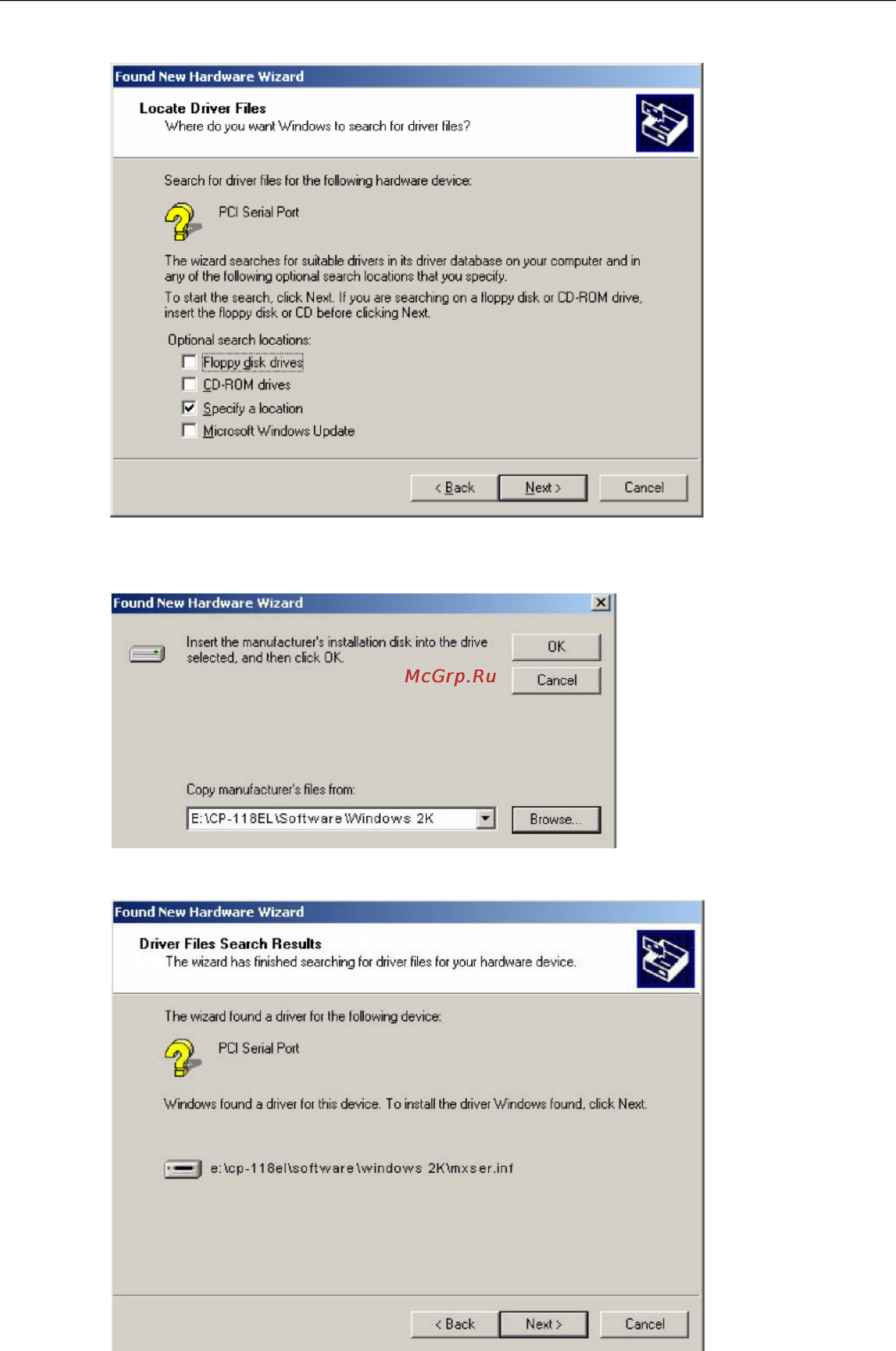

4. Select Specify a location and then click Next to continue.
5. Navigate to the \CP-118EL Series\Software\Windows 2K folder on the software CD, and then click OK
to continue.
6. Click Next to copy the driver files to your system.
