PCI Express Boards Software Installation
3-48

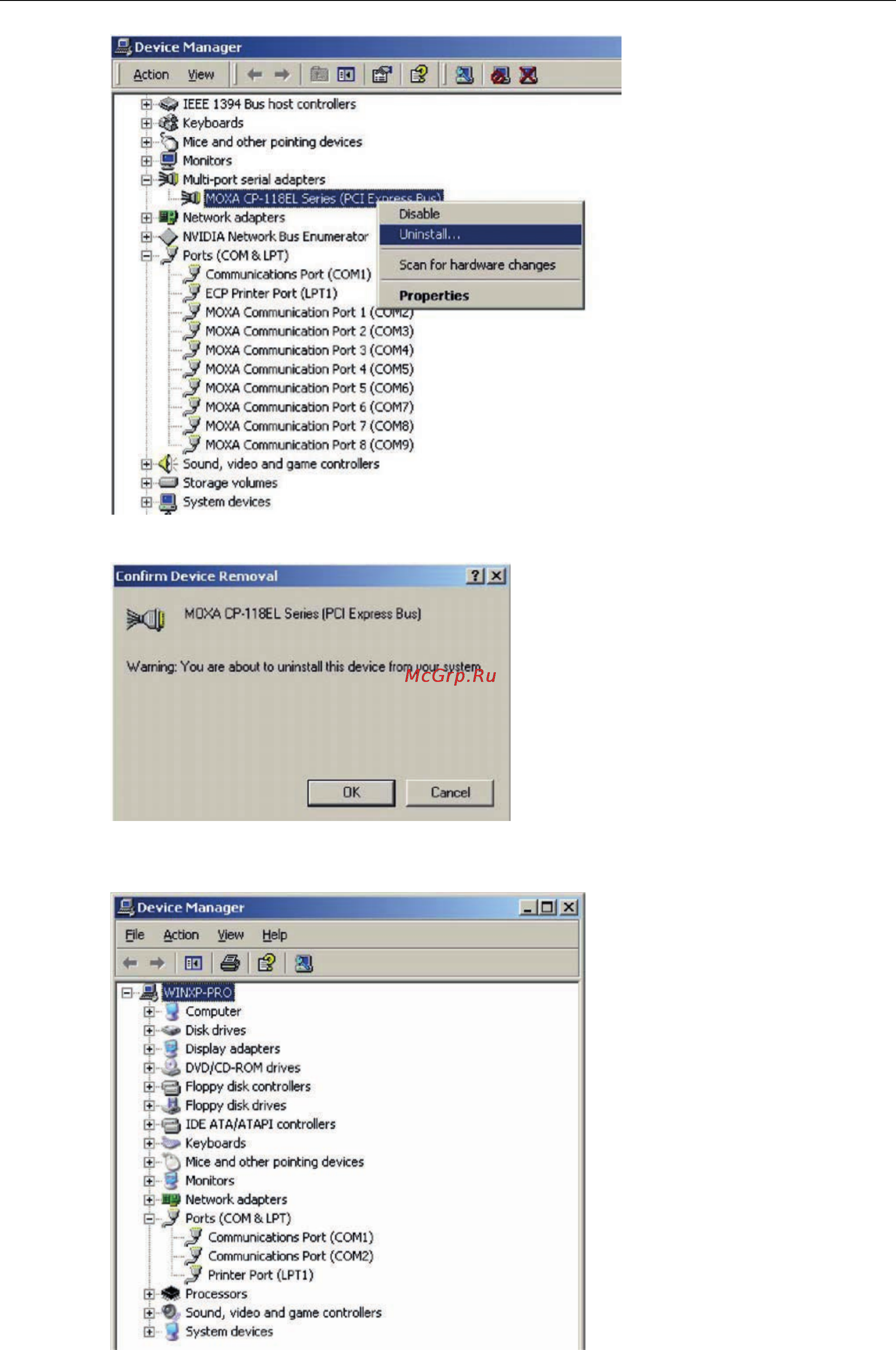

2. Click OK to proceed with uninstalling the board.
3. The Device Manager window refreshes automatically, showing that the driver and ports for the CP-118EL
Series board have been removed.
