PCI Express Boards Software Installation
3-27

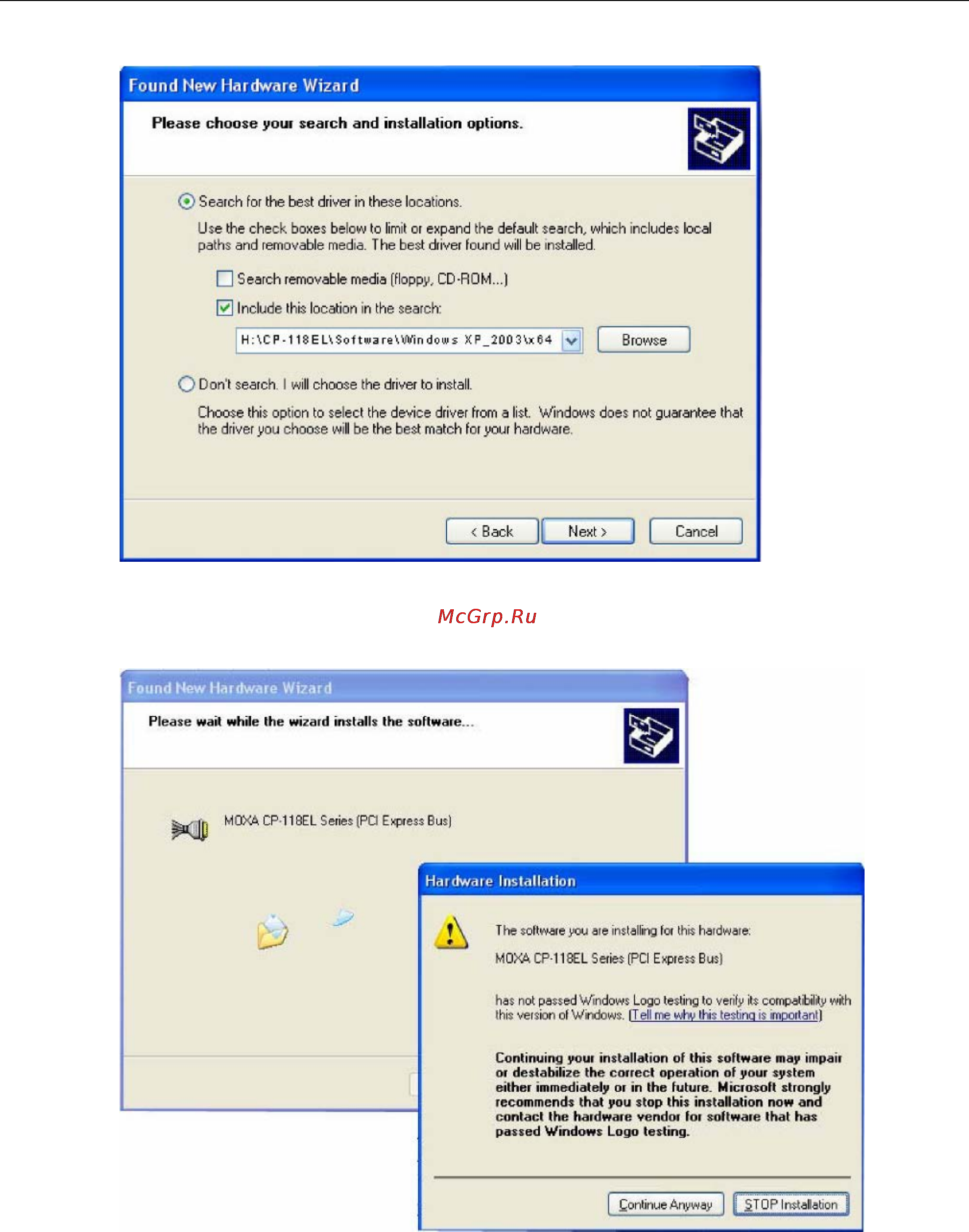

The following figure shows the path for x64.
5. Wait while the installation wizard searches for the correct drivers. The next window that opens cautions you
that although this software has not passed Windows Logo testing, the driver has been tested and shown
that it can support the Windows OS. Click Continue Anyway to proceed.
