PCI Express Boards Software Installation
3-42

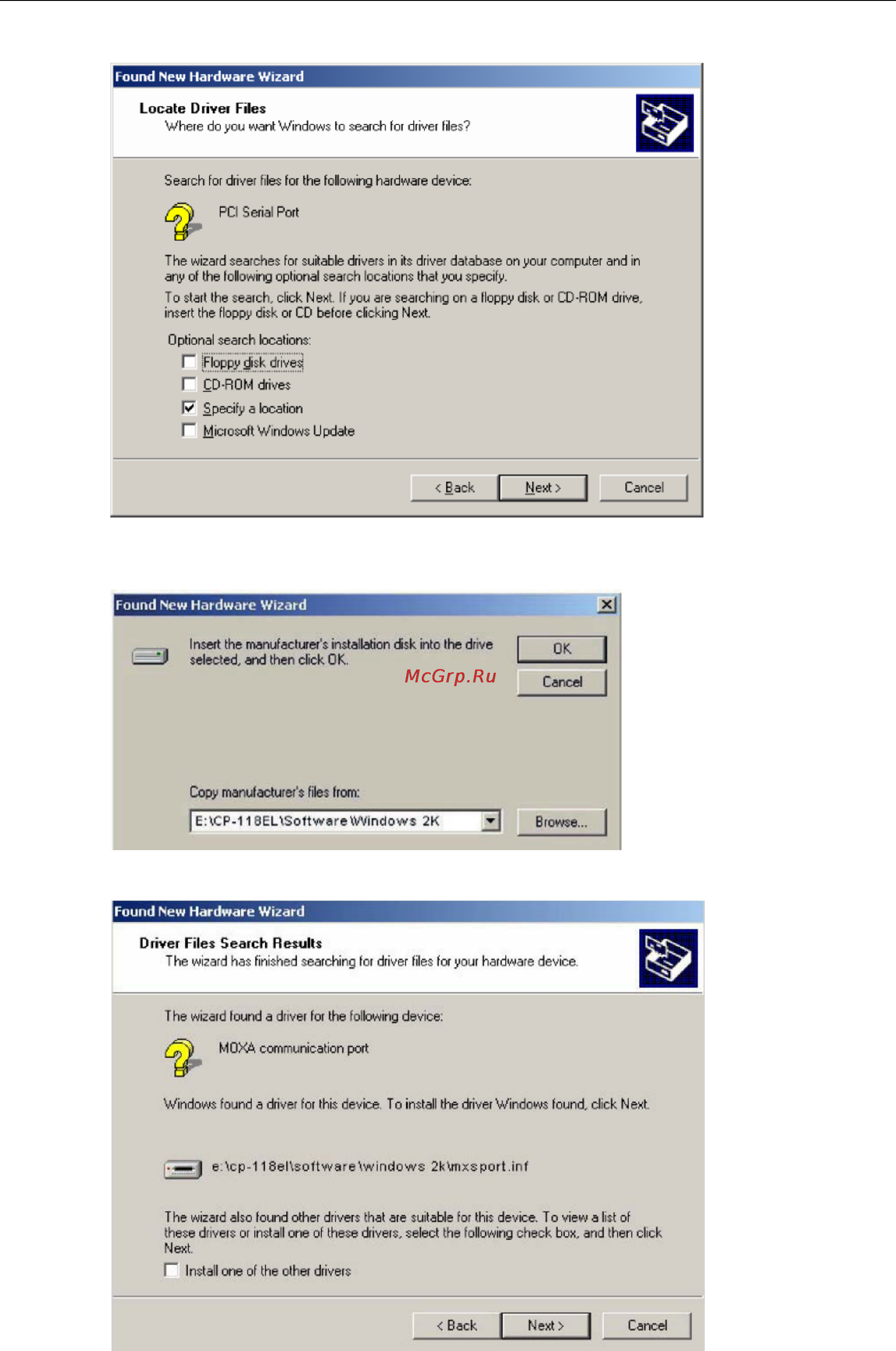

12. Select Specify a location and then click Next to continue.
13. Navigate to the \CP-118EL Series\Software\Windows 2K folder on the software CD, and then click OK
to continue.
14. Wait while the installation wizard searches.
