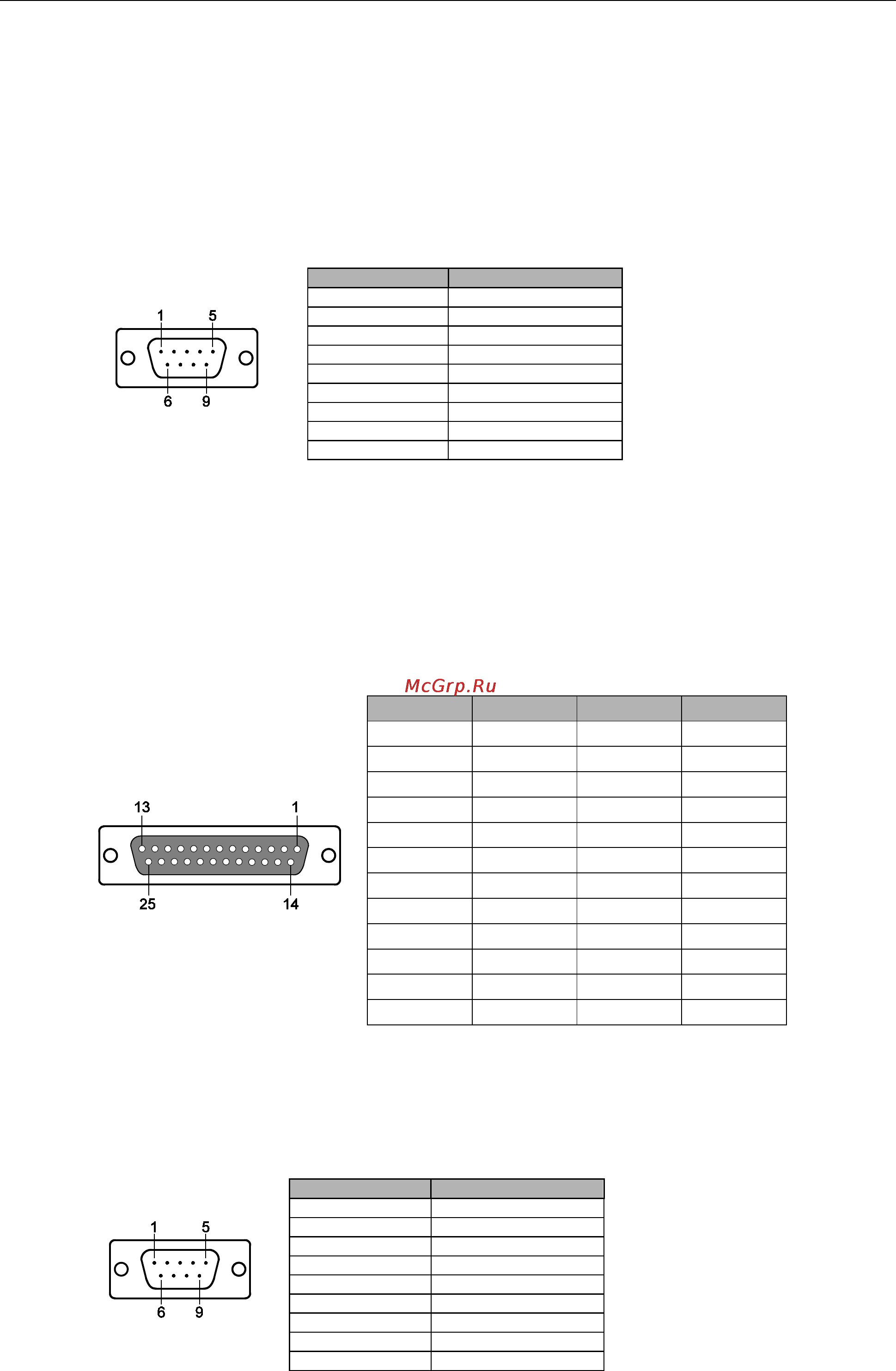

PCI Express Boards Pin Assignments
5-10
CP-102E
Board Side Pin Assignments—Male DB9
CP-102E has two Male DB9 connectors on board.
Male DB9
Pin
RS-232 Signals
1
DCD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
---
CP-102EL
Board Side Pin Assignments—Female DB25
RS-232
Pin RS-232 Pin RS-232
1 13
2 DCD1 14
3 GND 15 DTR1
4 CTS1 16 DSR1
5 RxD1 17 RTS1
6 18 TxD1
7 19
8 20
9 DTR0 21 DCD0
10 DSR0 22 GND
11 RTS0 23 CTS0
12 TxD0 24 RxD0
Device Side Pin Assignments
Male DB9 (CBL-M25M9x2-50)
Pin
RS-232
1
DCD
2
RxD
3
TxD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
---
