DA-682A-DPP Hardware Hardware Installation
2-7
LED Color Description
Power
Green Power is on
Off No power input or power error exists
Storage
Yellow/Blinking Data is being written to or to read from the storage unit
Off Storage unit is idle
Gigabit LAN
LEDs 1-6
Green 100 Mbps Ethernet mode
Yellow 1000 Mbps (Gigabit) Ethernet mode
Off No operation or 10 Mbps Ethernet mode
Programmable
1-8
Green Defined by users
Module A LEDs
1-8
Green 100 Mbps Ethernet mode or
TX signal of serial port is active.
Orange 10 Mbps Ethernet mode or
RX signal of serial port is active.
Off No operation
Module B LED
1-8
Green 100 Mbps Ethernet mode or
TX signal of serial port is active.
Yellow 10 Mbps Ethernet mode or
RX signal of serial port is active.
Off No operation

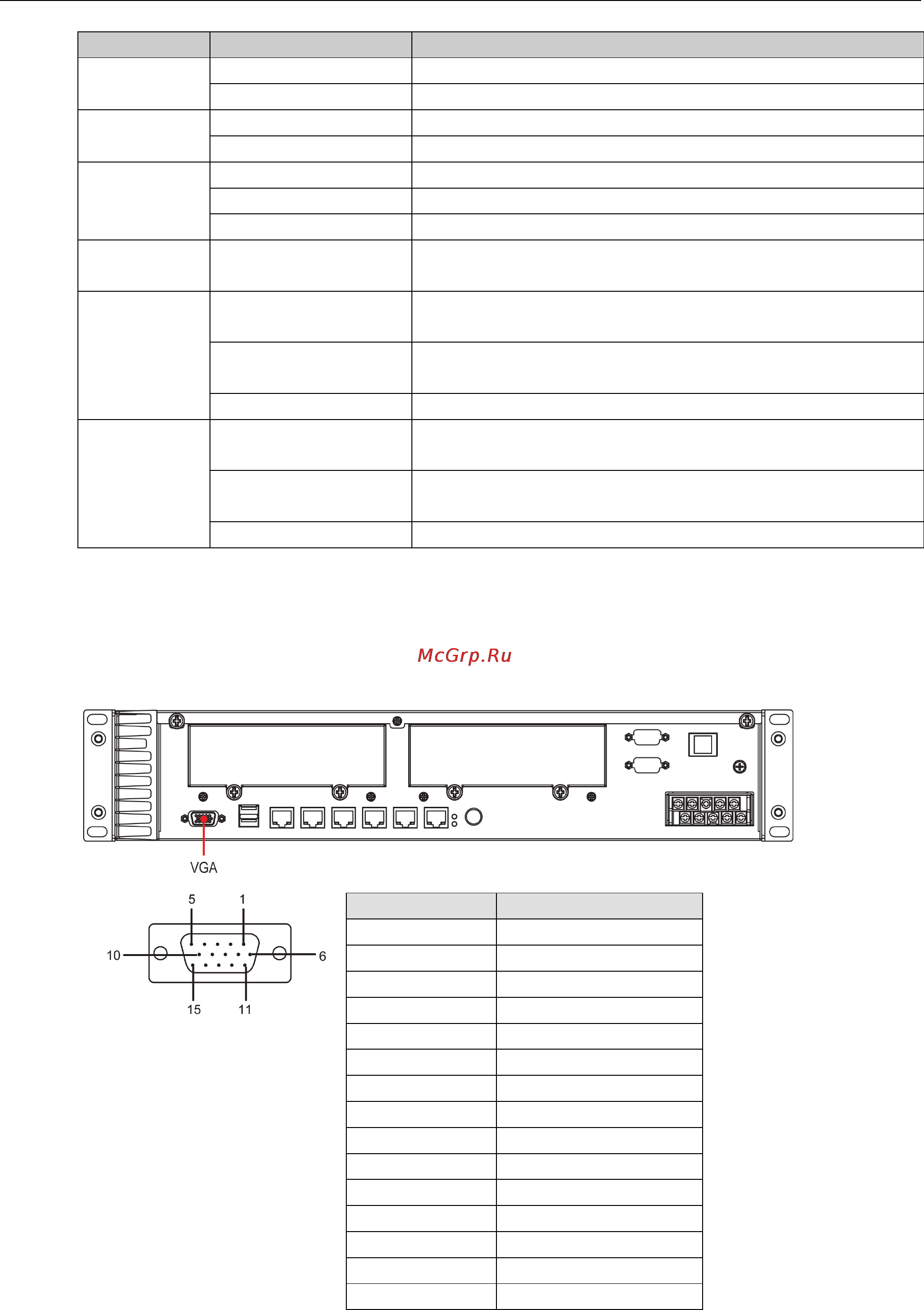

Connecting to a Display
The DA-682A-DPP embedded computer comes with a D-Sub 15-pin female connector to connect to a VGA
monitor. Turn off the power source to the computer before you connect or disconnect the monitor cable.
Pin No. Signal Definition
1 RED
2 GREEN
3 BLUE
4 NC
5 GND
6 GND
7 GND
8 GND
9 VCC
10 GND
11 NC
12 DDC 2B Data
13 HSYNC
14 VSYNC
15 DDC 2B Clock
