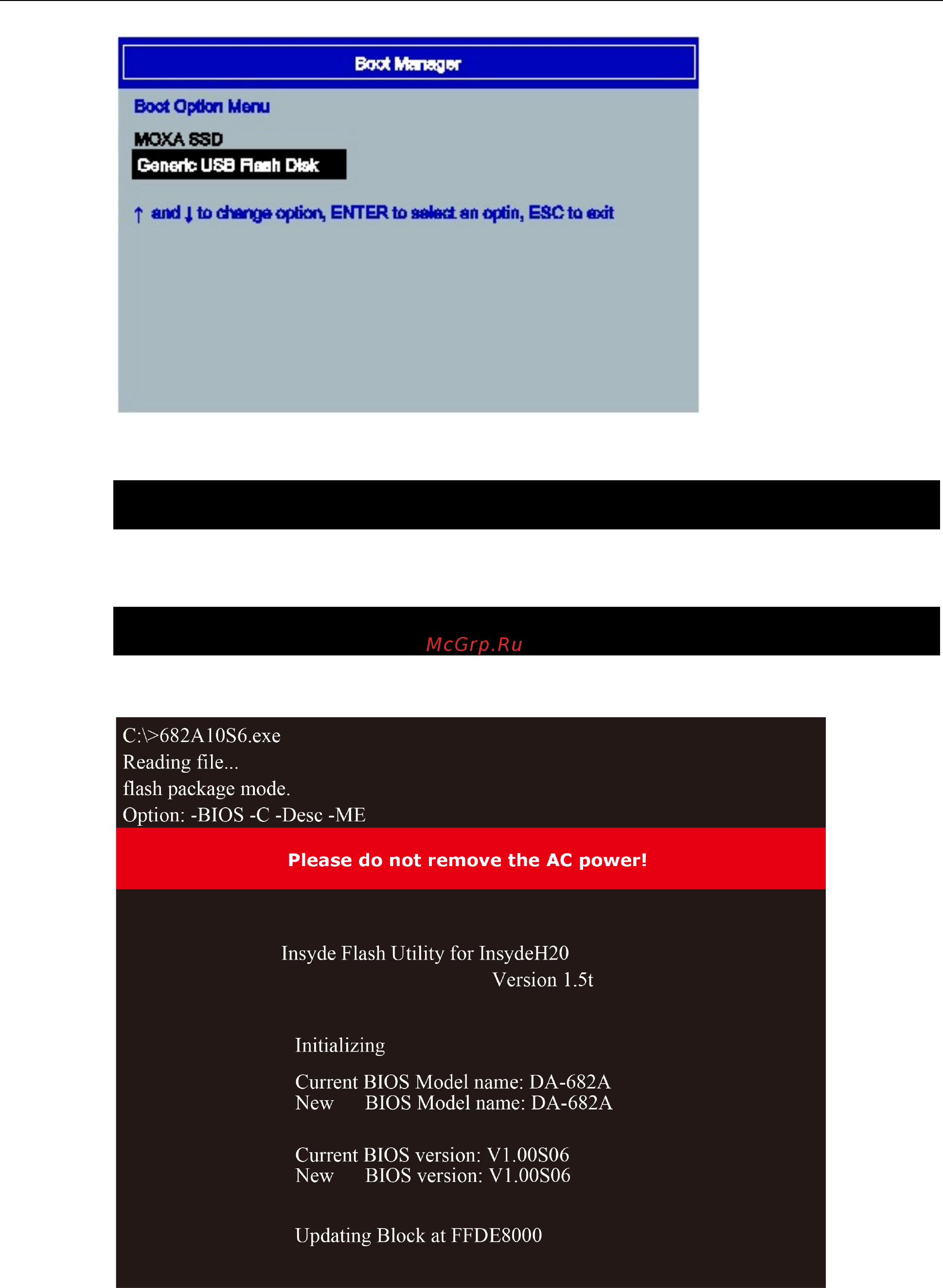

DA-682A-DPP Hardware BIOS Setup
3-13
3. When the boot up process is complete, the DOS screen is displayed. Go to the directory where the upgrade
file is located. For example, if the upgrade file is stored in the DA682A folder, type
cd DA682A
C:
\cd DA682A
4. Run the upgrade program by typing 682A10S6.exe. Please note that the upgrade filename will vary
depending on the computer versions.
C:
\ DA682A>682A10S6.exe
5. Wait until the upgrade process is complete.
6. When the upgrade is finished, the computer will automatically reboot. You can check the BIOS version on
Main page of the BIOS Setup to confirm the upgrade.
