DA-682A-DPP Hardware BIOS Setup
3-8

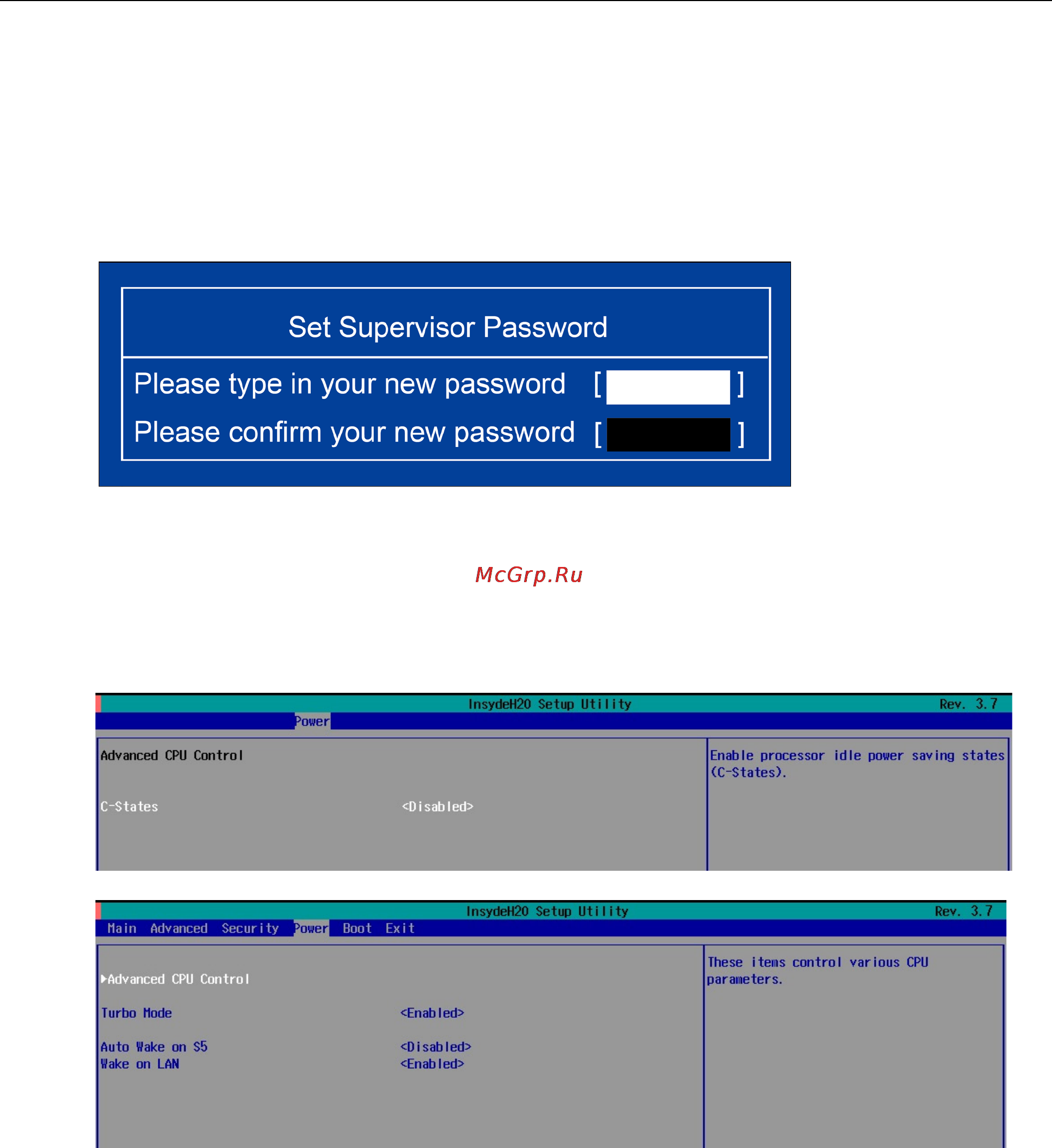

Set Supervisor Password
Allows you set the supervisor password.
To set the password, enter the password, and then confirm the password again.
To delete the password, enter Set Supervisor Password and enter the old password. Leave the new
password fields blank, and press Enter.
Power Settings
The Power menu allows you to configure the power settings for your computer.
The Advanced CPU Control option is only available on i7 platform. The C-States option is disabled by default.
Turbo Mode
Allows you to enable/disable the Intel CPU Turbo Boost technology on your computer.
Options: Enabled (default), Disable.
Please note that this option is only available on the DA-682A-DPP-C7, DA-682A-DPP-C7-LX, and
DA-682A-DPP-C7-W7E models.
Auto Wake on S5
This feature allows you to configure auto wake up from S5 status. S5 stands for Soft Off, where the PSU
remains engaged but power to all other parts of the system is cut off. Auto-wake on S5 schedules a soft-reboot
at certain periodic times that can be specified in the BIOS.
