DA-682A-DPP Hardware Hardware Installation
2-13

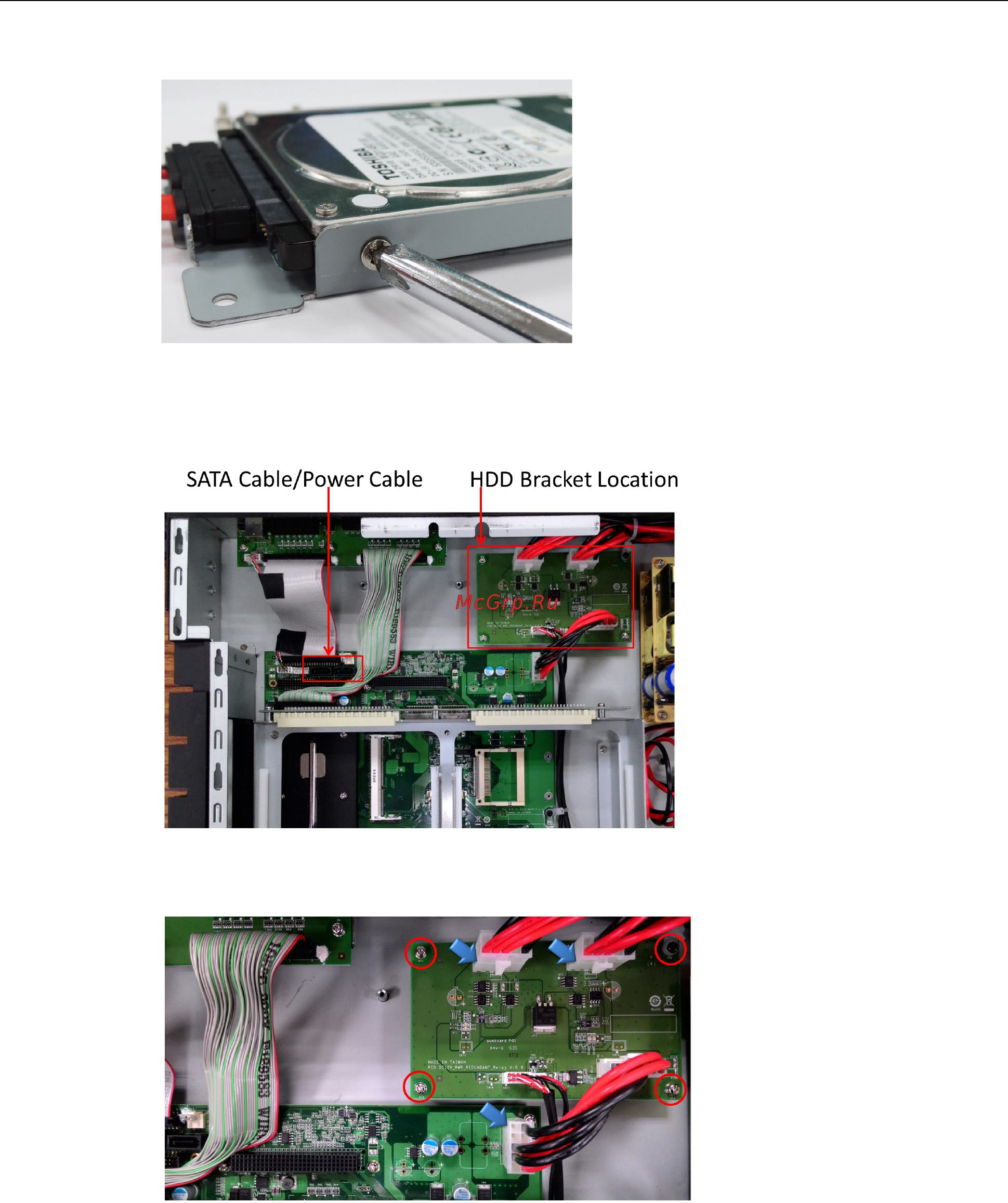

Step 3: Fasten the hard drive to the bracket using the HDD screws as shown below:
Single Disk Bracket
Step 4: Take off the upper cover of the computer, and find the locations of the HDD bracket and the SATA
Cable/Power Cable.
Step 5: Remove the Power Translation Board by removing the four screws that secure the board and detaching
the 3 cables connected to the board.
