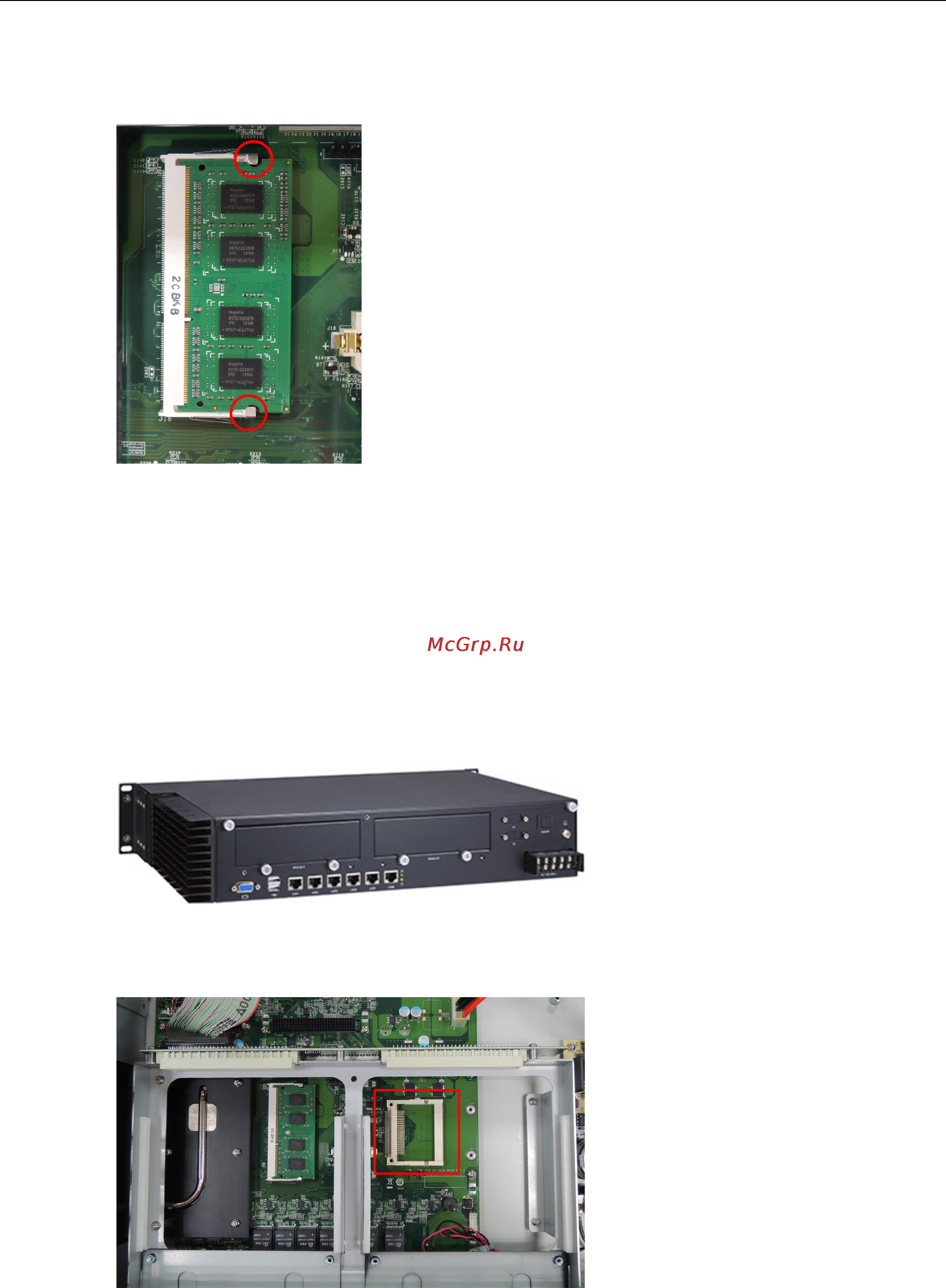

4. Push the two clutches of the socket and remove the existing memory module. Insert the new memory

module into the socket in the correct direction and push down the memory module until the clutches have

been securely fastened.

5. When finished, replace the upper cover of the computer, replace the screws, and fasten the screws to

secure the cover.

Installing a CompactFlash Card

The DA-682A-DPP embedded computer comes with a CompactFlash socket. To insert a CompactFlash card,

follow these instructions.

1. Disconnect the DA-682A-DPP from its power source.

2. Unfasten the screws on the back of the computer, and then take off the upper cover.

3. Find the location of the CompactFlash socket. The CompactFlash card socket is located in the middle of the

main board.
