DA-682A-DPP Hardware Hardware Installation
2-14

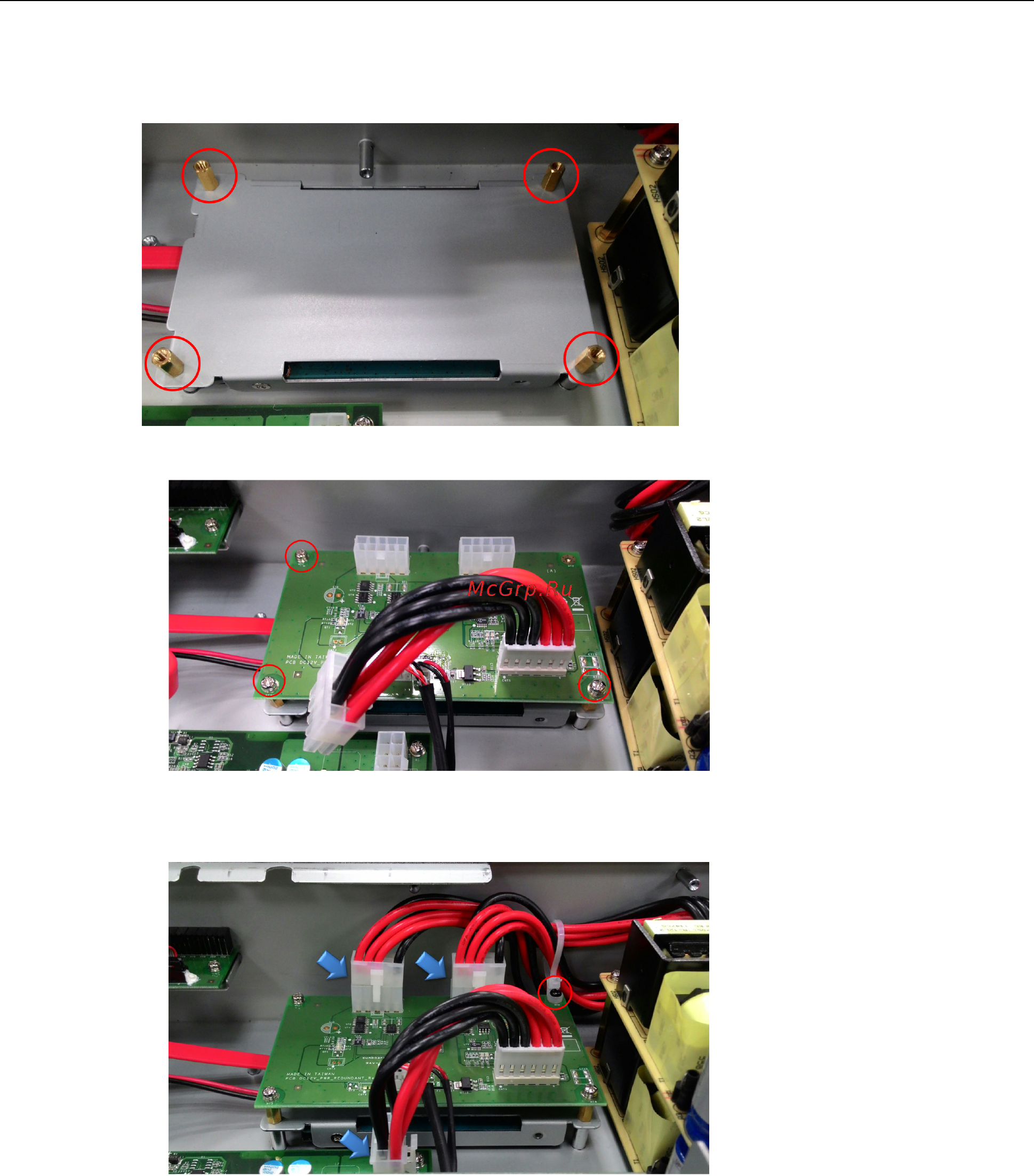

Step 6: Place the hard disk bracket (with the hard disk) face-down on the fixed spacers and secure the bracket
using spacer screws as shown below:
Step 7: Install the Power Translation Board firmly on the spacers and tighten the 3 bracket screws.
Step 8: Connect the 3 cables and tighten the final screw.
