DA-682A-DPP Hardware Hardware Installation

2-8

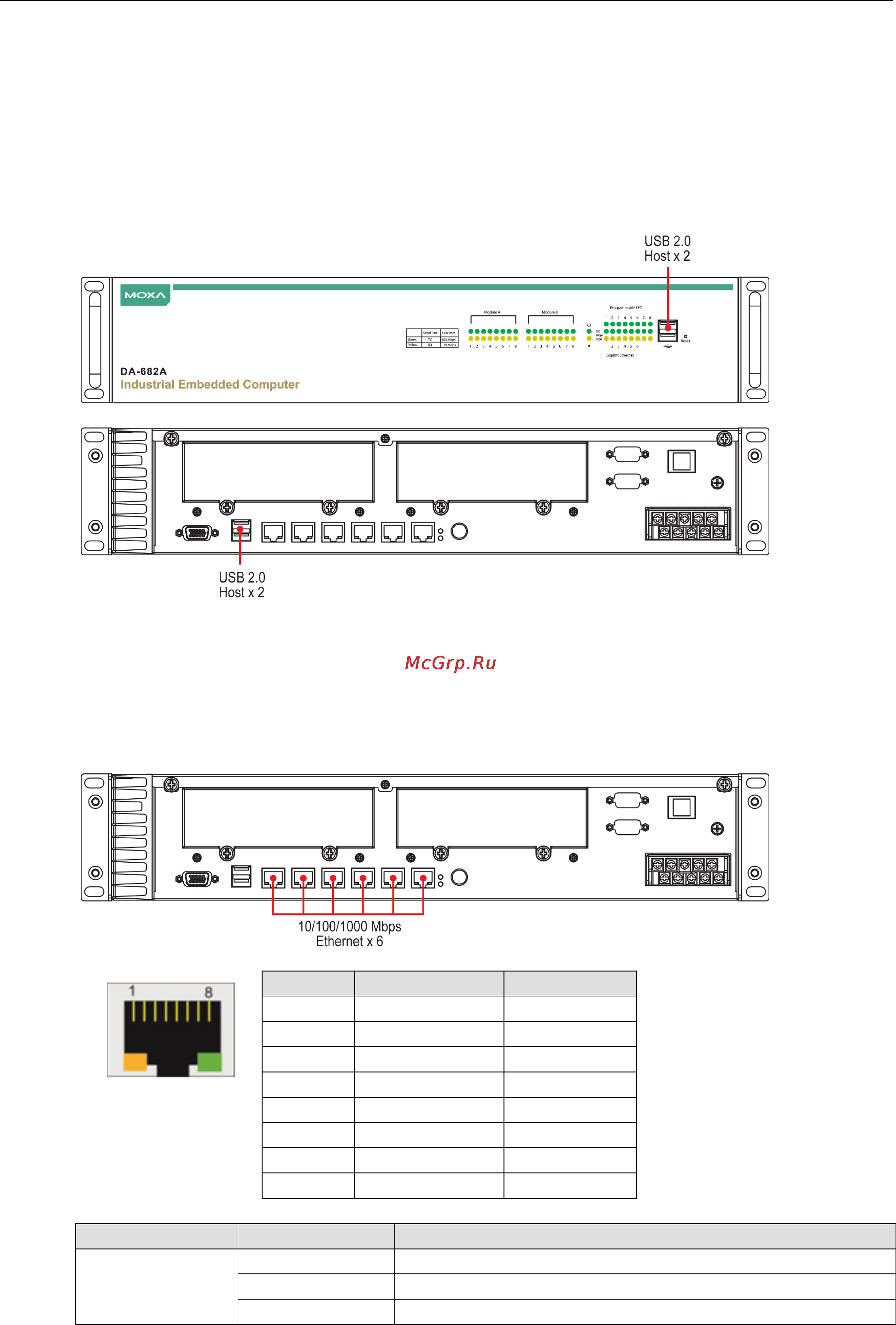

Connecting USB Devices

The DA-682A-DPP embedded computer has four USB 2.0 ports, with two ports on the front panel and the other

two on the rear panel. All of the ports are UHCI, Rev 2.0 compliant and support Plug & Play and hot swapping.

These ports can be used to connect USB devices, such as a keyboard, mouse, USB flash disk, and USB CD-ROM.

In addition, both USB ports support system boot up, which can be activated by modifying the BIOS settings.

Refer to Chapter 3 “BIOS Setup” for the configuration process.

Gigabit LAN Ports

The DA-682A-DPP Basic System has 6 Gigabit LAN ports. When the cable is properly connected, the LEDs on

the RJ45 connectors will glow to indicate a connection.

Pin 10/100 Mbps 1000 Mbps

1 Tx+ TRD(0)+

2 Tx- TRD(0)-

3 Rx+ TRD(1)+

4 --- TRD(2)+

5 --- TRD(2)-

6 Rx- TRD(1)-

7 --- TRD(3)+

8 --- TRD(3)-

LED Color Description

Gigabit RJ45

Connector

Green 100 Mbps Ethernet mode

Yellow 1000 Mbps (Gigabit) Ethernet mode

Off Not operating or 10 Mbps Ethernet mode
