DA-682A-DPP Hardware BIOS Setup
3-2
Entering the BIOS Setup

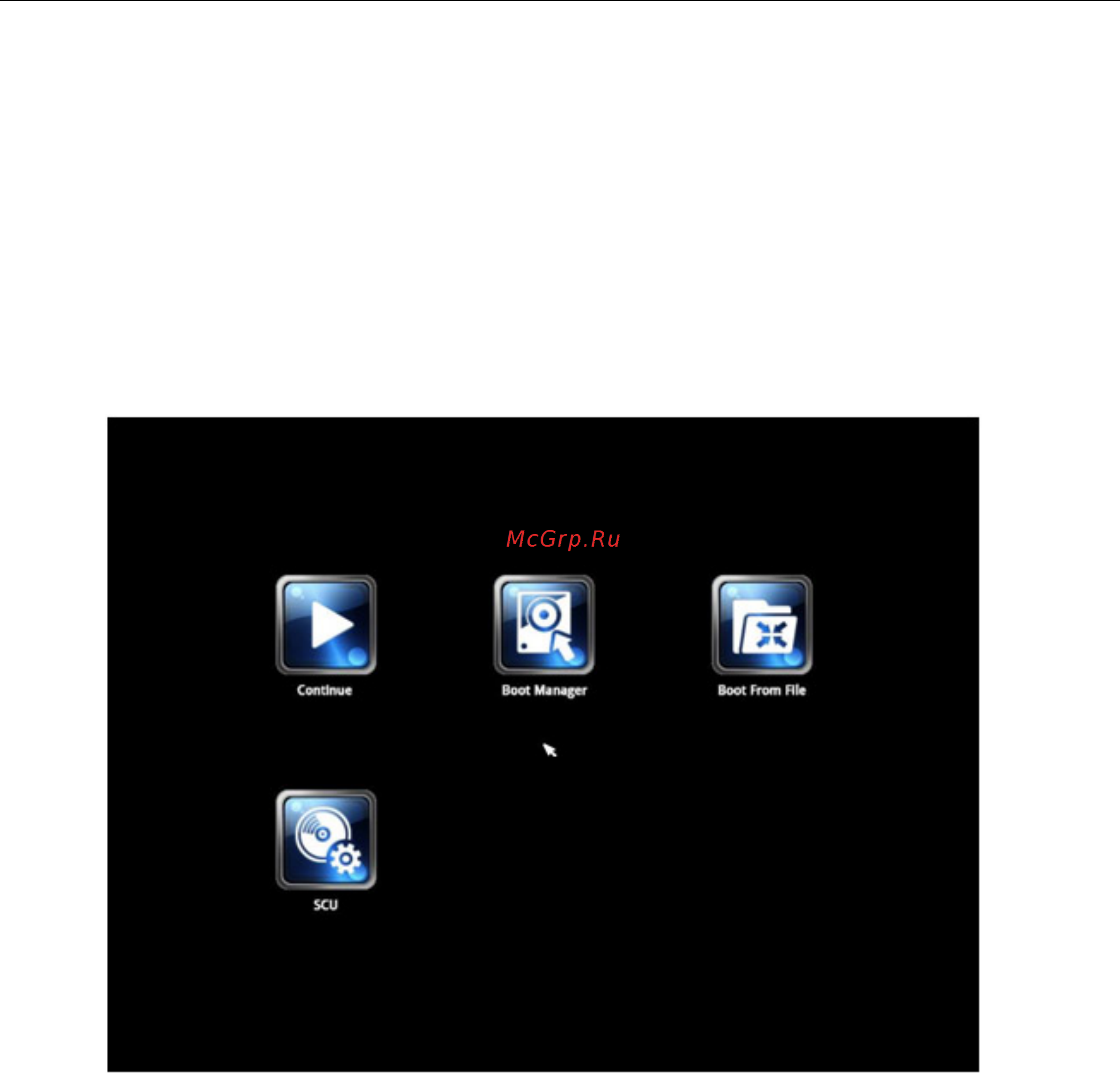

To enter the BIOS setup utility, press the “F2” key while the system is booting up. The main BIOS Setup
screen is displayed. The following four options are available:
Continue: Continue to boot up
Boot Manager: Select the device for booting up
Boot From File: Select the UEFI boot up file
SCU: Enter the BIOS configuration
Select SCU to enter the BIOS configuration.
When you enter SCU, a basic description of each function key is listed at the bottom of the screen. Refer to
these descriptions to learn how to use them.
F1
F5/
F6
F9
F10
General Help
Change Values
Setup Defaults
Save and Exi
t
↑↓
.
←→
ESC
EN
TER
Select Item
Select Menu
Exit
Select or go to Submenu.
