DA-682A-DPP Hardware Hardware Installation
2-19

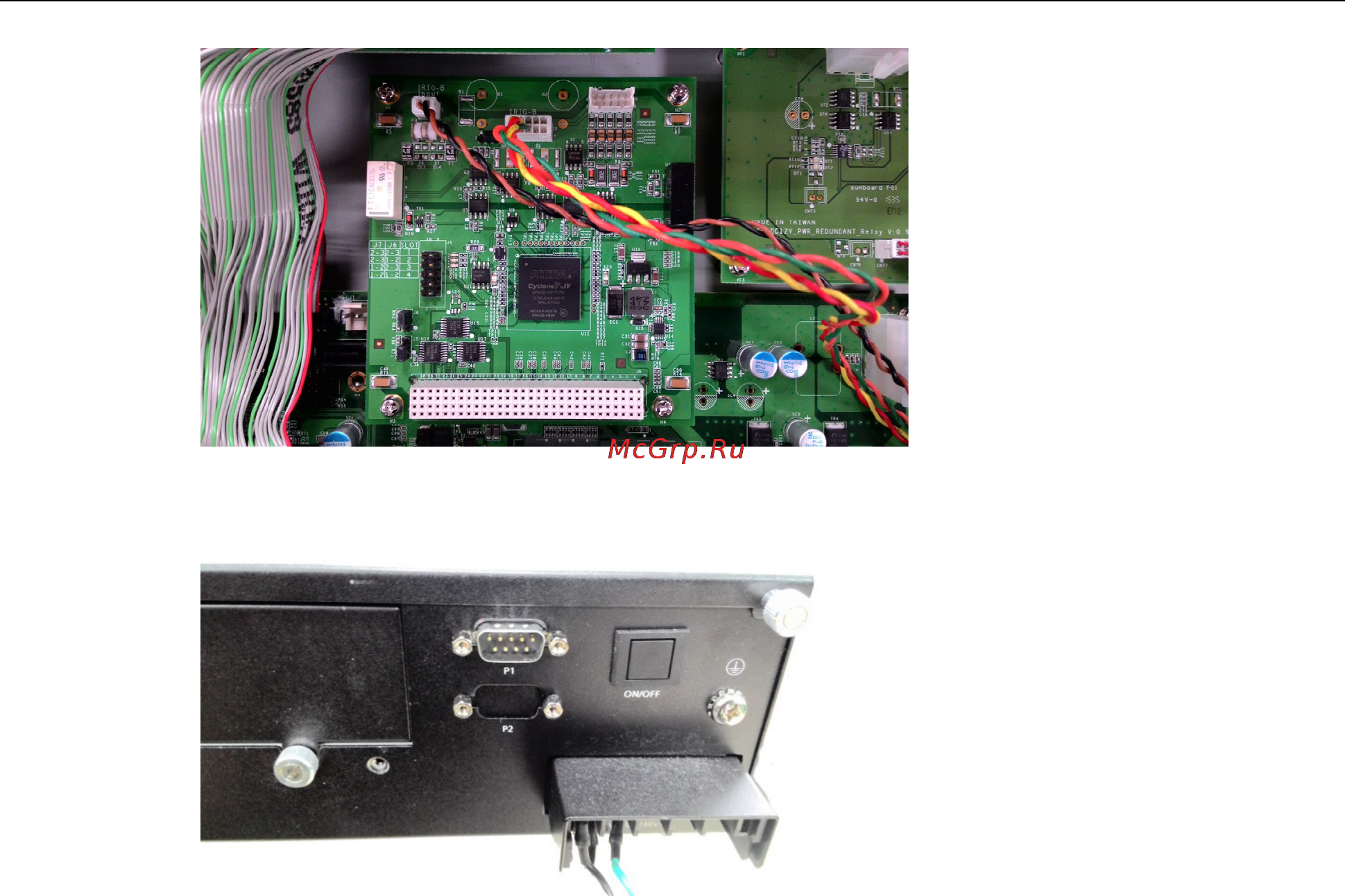

c. Install the DB9 connectors on the rear panel of the embedded computer and replace the computer
cover.
7. Turn on the embedded computer. The BIOS will automatically set the IRQ and I/O address.
