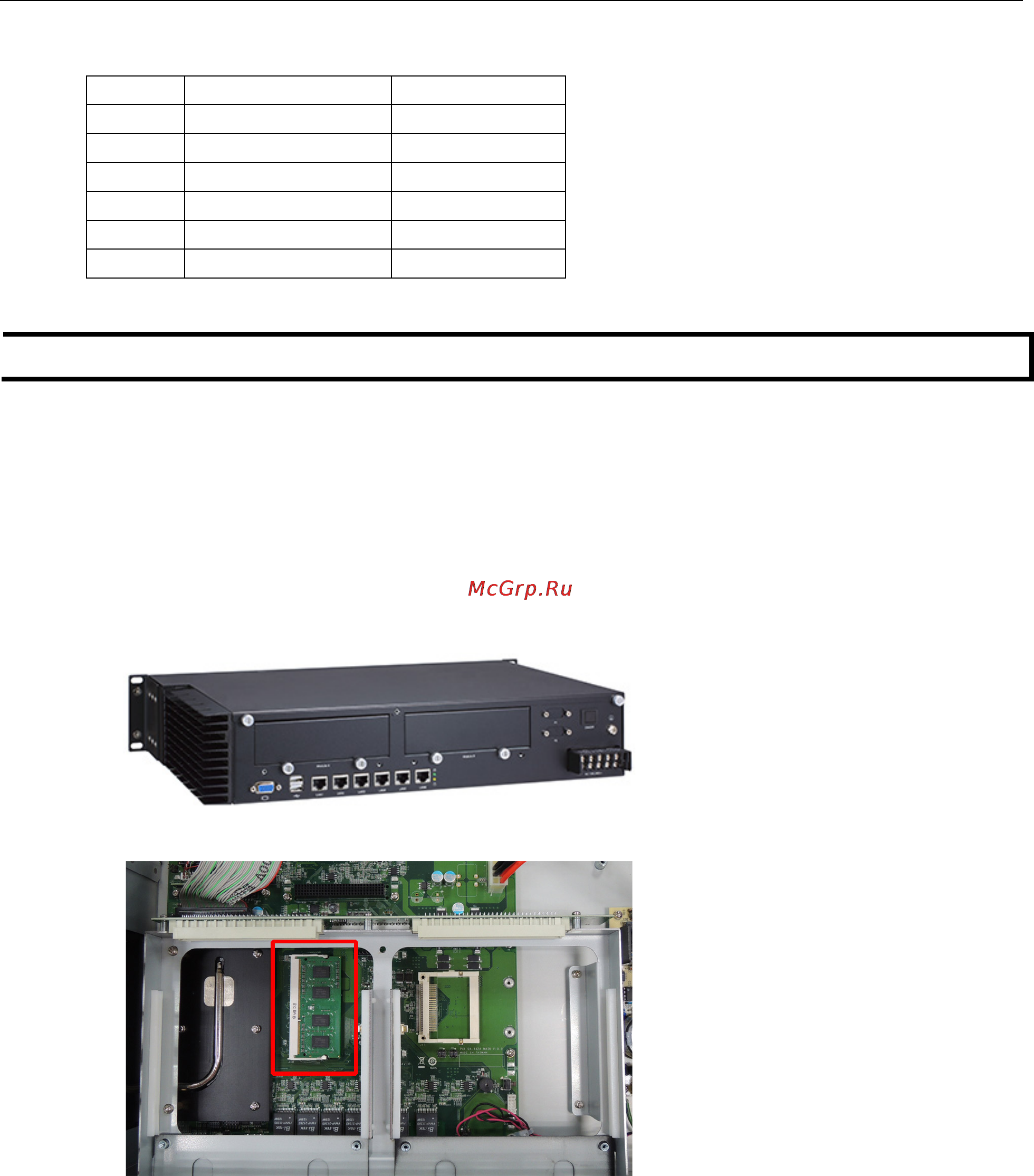

![Moxa DA-682A-C7-DPP [20/45] Upgrading the memory module](/views2/1198988/page20/bg14.png)
DA-682A-DPP Hardware Hardware Installation
2-9
The default IP addresses and netmasks of the Gigabit LAN ports are as follows:
Default IP Address Netmask
LAN 1 192.168.3.127 255.255.255.0
LAN 2 192.168.4.127 255.255.255.0
LAN 3 192.168.5.127 255.255.255.0
LAN 4 192.168.6.127 255.255.255.0
LAN 5 192.168.7.127 255.255.255.0
LAN 6 192.168.8.127 255.255.255.0
NOTE
The
W7E models use DHCP for IP address assignment.
Upgrading the Memory Module
The DA-682A-DPP embedded computer supports one DDR3 1333/1066 SODIMM module with up to 8 GB
capacity. The computer is shipped with one DDR3 SDRAM memory module installed. To replace the SDRAM
memory module, follow these instructions:
1. Disconnect the DA-682A-DPP from its power source.
2. Unfasten the screws on the back of the computer, and then remove the upper cover.
3. Find the location of the SDRAM memory socket.
