Optional Expansion Modules:

• DA-SP08-I-EMC4-DB: 8-port RS-232/422/485 serial module with a digitally isolated DB9 connector;

suitable for EMC Level 4 environments

• DA-SP08-I-EMC4-TB: 8-port RS-232/422/485 serial module with a digitally isolated terminal block

connector; suitable for EMC Level 4 environments

• DA-SP08-I-DB: 8-port RS-232/422/485 serial module with a digitally isolated DB9 connector

• DA-SP08-DB: 8-port RS-232/422/485 serial module with a DB9 connector

• DA-SP08-I-TB: 8-port RS-422/485 serial module with a digitally isolated terminal block

• DA-SP38-I-TB: 8-port RS-422/485 serial module with a digitally isolated terminal block

• DA-SW08-RJ: 8-port 10/100 Mbps unmanaged switch module

• DA-UPCI-DK: Universal PCI development kit

• DA-FX04-MM-ST-T: 4-port (100BaseFX) fiber LAN module with a multi-mode ST connector that supports

IP Teaming

• DA-IRIGB-4DIO-PCI104-EMC4: Time synchronization expansion module, 1 IRIG-B signal input port, 3

digital inputs, 4 digital outputs (DA-681A-I-DPP series only)

ATTENTION

Additional expansion modules are

currently under development.

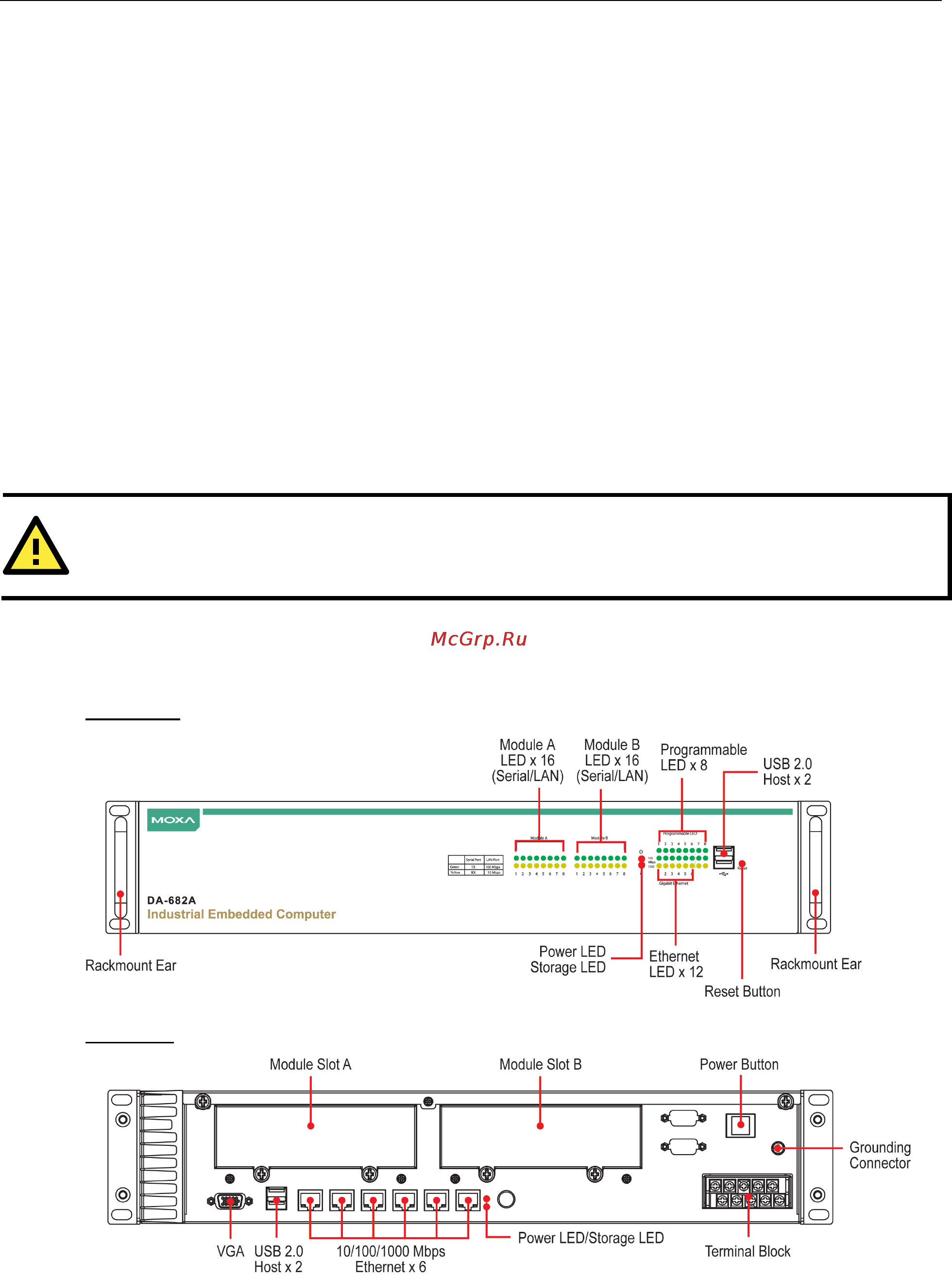

Appearance

Front View

Rear View
