TC-6110 Linux User's Manual Managing Communications
3-5
Noauth indicates that the peer does not need to authenticate itself. Nodetach indicates that the connection will
not detach from the controlling terminal. Without this option, if a serial device other than the terminal on the
standard input is specified, pppd will fork to become a background process.

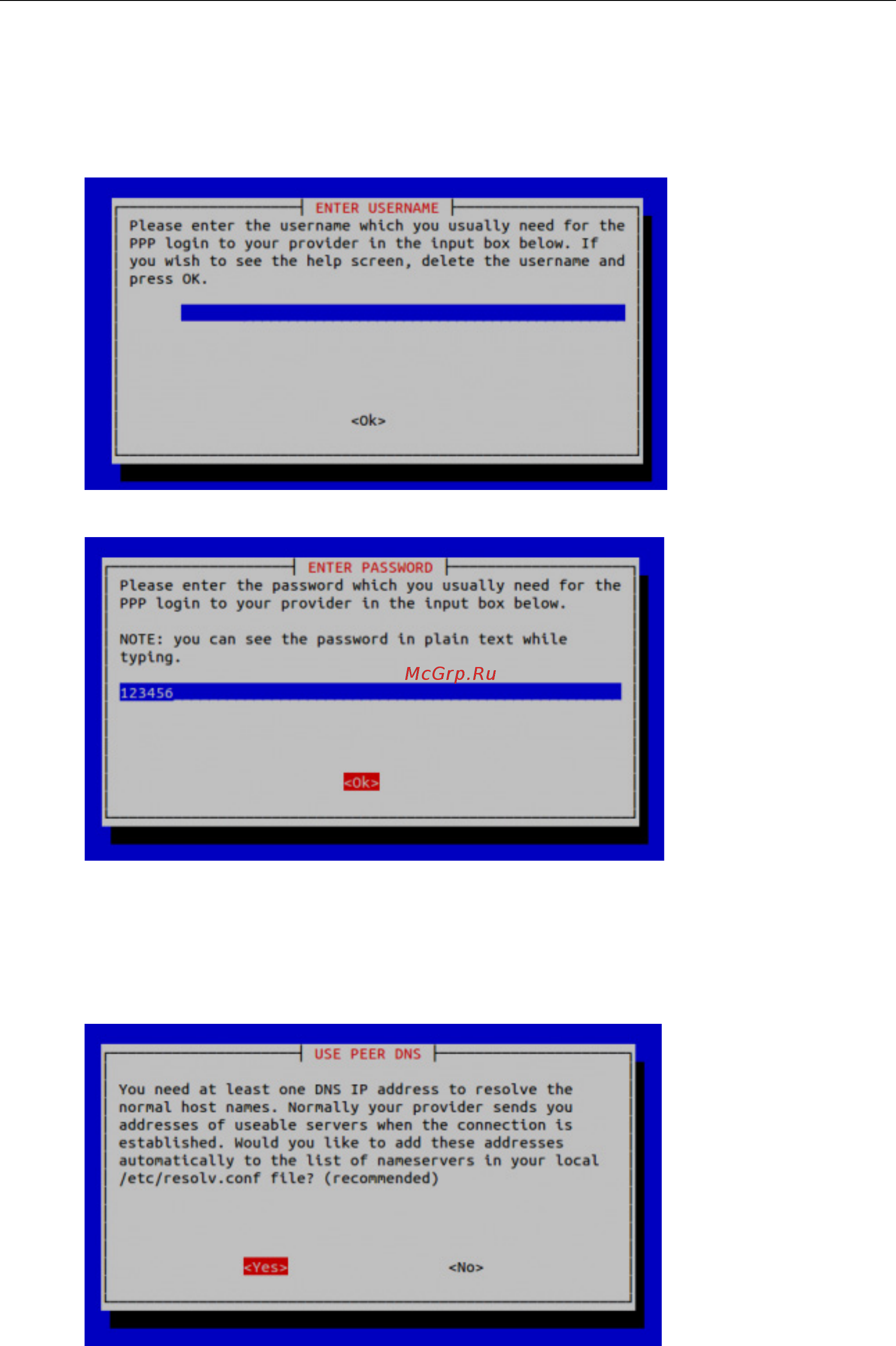

After choosing whether or not to use noauth and nodetach, the pppoeconf will next ask you for your username
and password.
Next, enter your password:
Finally, you will need to choose whether or not your PPPoE provider will supply you with DNS server addresses.
These addresses are necessary for DNS resolution (se below, in the section Configuring the DNS Resolver).
It is preferable to click Yes, here; however, if your PPPoE provider does not supply these addresses
automatically (or if you do not connect to a PPPoE provider directly), click No and remember that you will need
to enter the DNS server addresses into
/etc/resolve.conf by hand.
