TC-6110 Linux User's Manual System Recovery
6-8

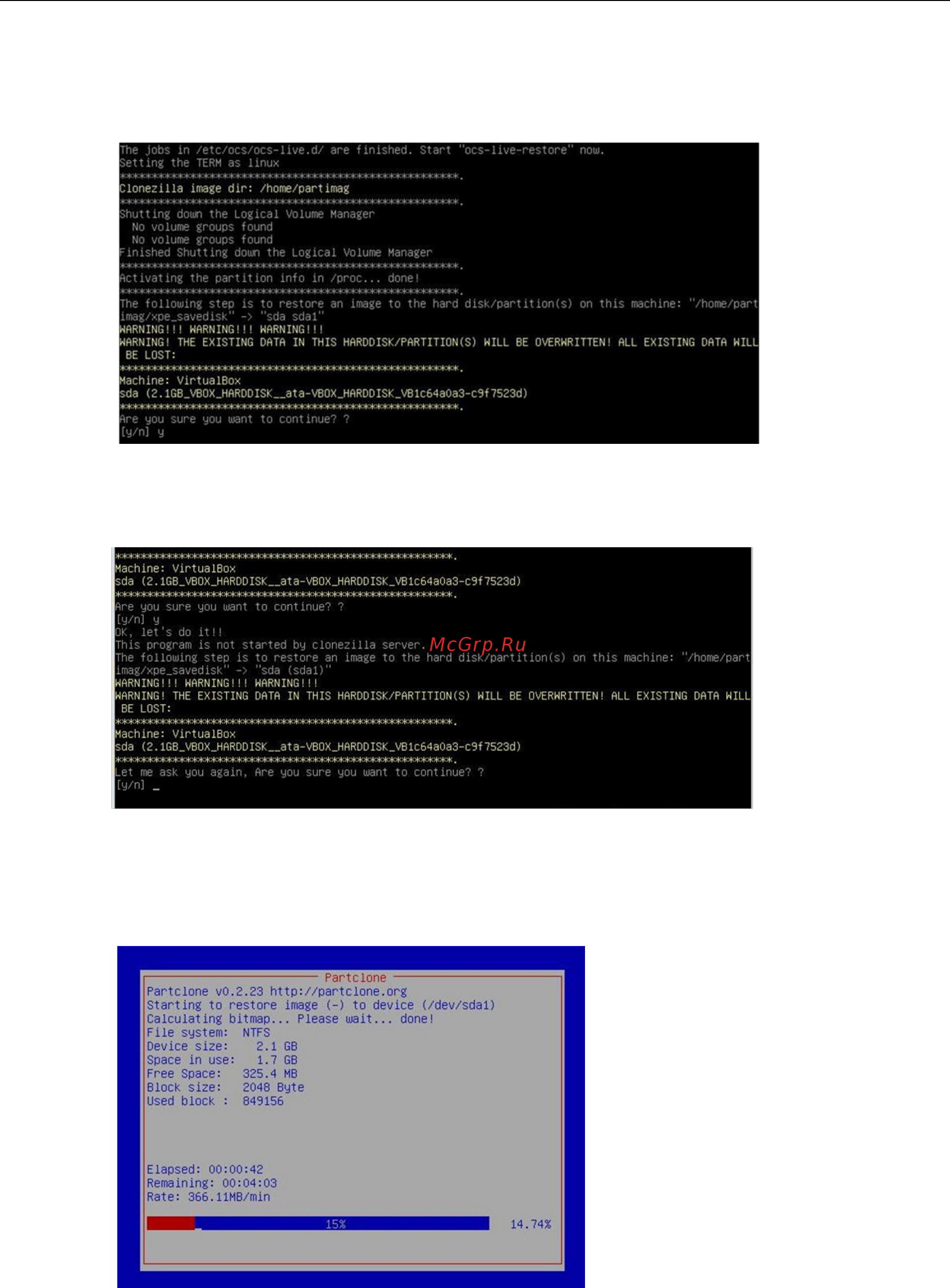

5. At this point, the system will remind you that you are about to overwrite your entire operating system with
a new drive image, and ask you if you want to continue. When prompted, enter Y (case insensitive) from
the keyboard to start the system restoration process. Any other letter or Ctrl-C will cancel it and exit
Clonezilla.
6. The system will give you another warning that you are about to overwrite your hard drive, and erase all
data on the partition listed (sda1, in the example below). If you wish to continue, enter Y (case
insensitive).
7. Now, Clonezilla will copy the system image you have configured on to your primary system drive. Your
original system (and any stored data or configurations that were made after the recovery disk was created)
will be entirely wiped clean. Wait for the process to finish; depending on the system, this should take about
10 minutes.
8. At this point, complete the restoration by selecting (0) Poweroff. This will shut down the computer;
however, if the Power Switch remains inserted in the front panel of the computer and is left in the ON
position, then the system will immediately initiate a soft reboot. To avoid this, users may use the switch to
cut power to the computer immediately following the shutdown, or may simply remove the power switch
from the front panel and then use the console to shut down the computer by pressing 0.
