TC-6110 Linux User's Manual System Recovery
6-5
5. Use the arrows to highlight USB and then use the plus/minus signs (+ -) to move it to the first boot priority
position. Warning: Incorrectly configuring the boot priority will lead to recovery failure.
6. Press F10 and then press Enter to save and exit the BIOS configuration interface. This should initiate the
next reboot, and your system should now boot from the USB drive.
Step 4 (opt.): Create a Custom System Image
The instructions which follow are only to be used if you decided in Step 1 of this process to create a full copy
of an already-configured system. If you have not yet installed any software on your system and are
configuring this recovery utility to restore a bare-bones stock OS, then skip this section and instead go to Step
4: Recovering to a Stock OS to see how to prepare your USB with a clean OS image.
The procedure below describes a configuration for restoring a complete system that has been customized with
user applications and scripts. Here, you will save to the USB drive a copy of the entire system as it is currently
configured to be used as a full system recovery image should the system crash. During this process, all files
on your USB that are mounted under
F:\home\partimag\ will be overwritten.
You should have already changed the BIOS settings to set the USB drive as the first boot priority. If you have
not yet reset the boot priority, first return to Step 3: Setting the BIOS to Boot via USB and follow the
directions there.

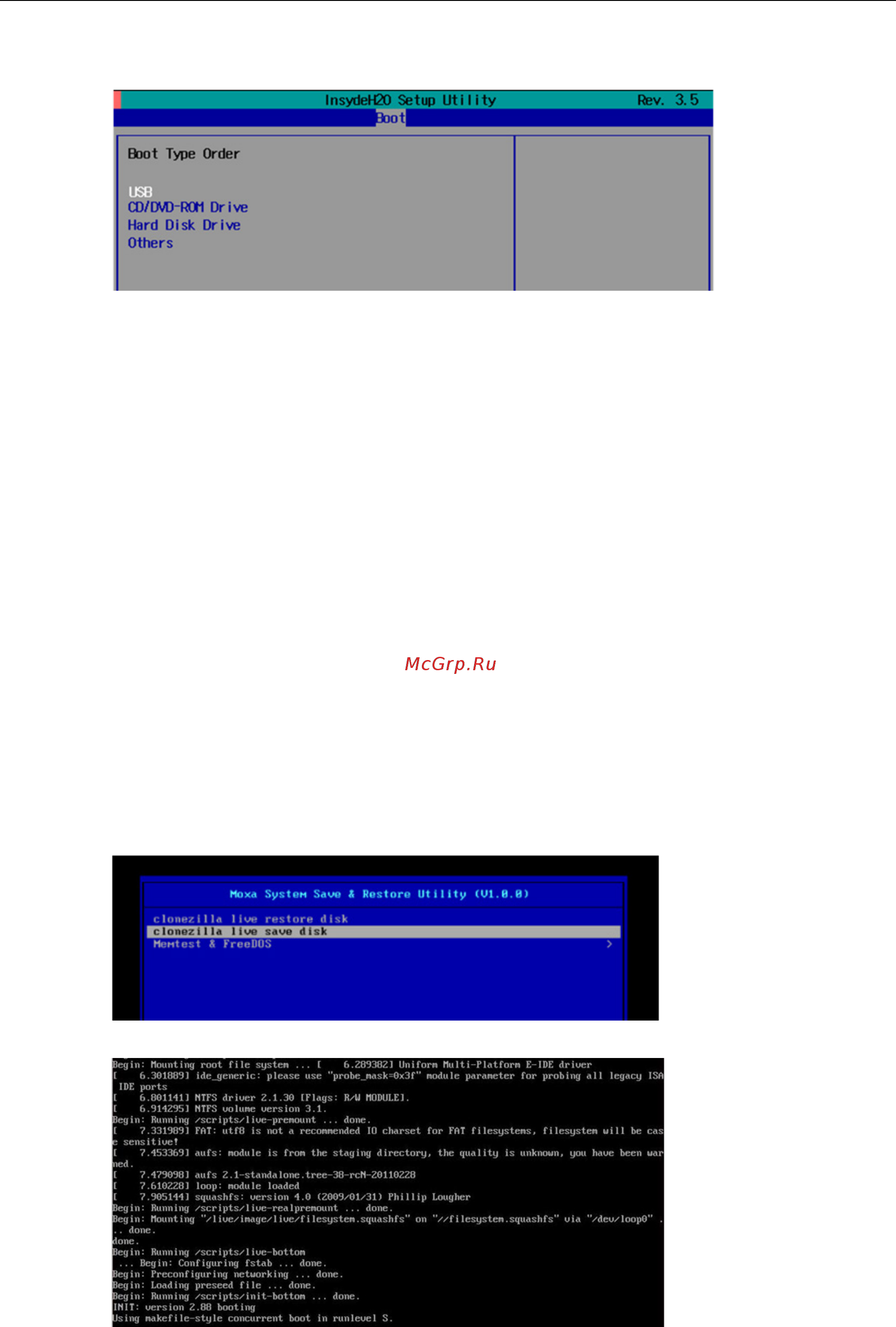

1. Once the system has launched and the DA-682A has booted the recovery environment from the USB drive,
navigate to the entry Clonezilla Live Save Disk, and select it by pressing Enter. This will take you into
the recovery image creation environment, allowing you to copy your full system setup to the USB
drive.
2. The DA-682A will now boot into the image creation environment. Wait for the boot process to finish.
