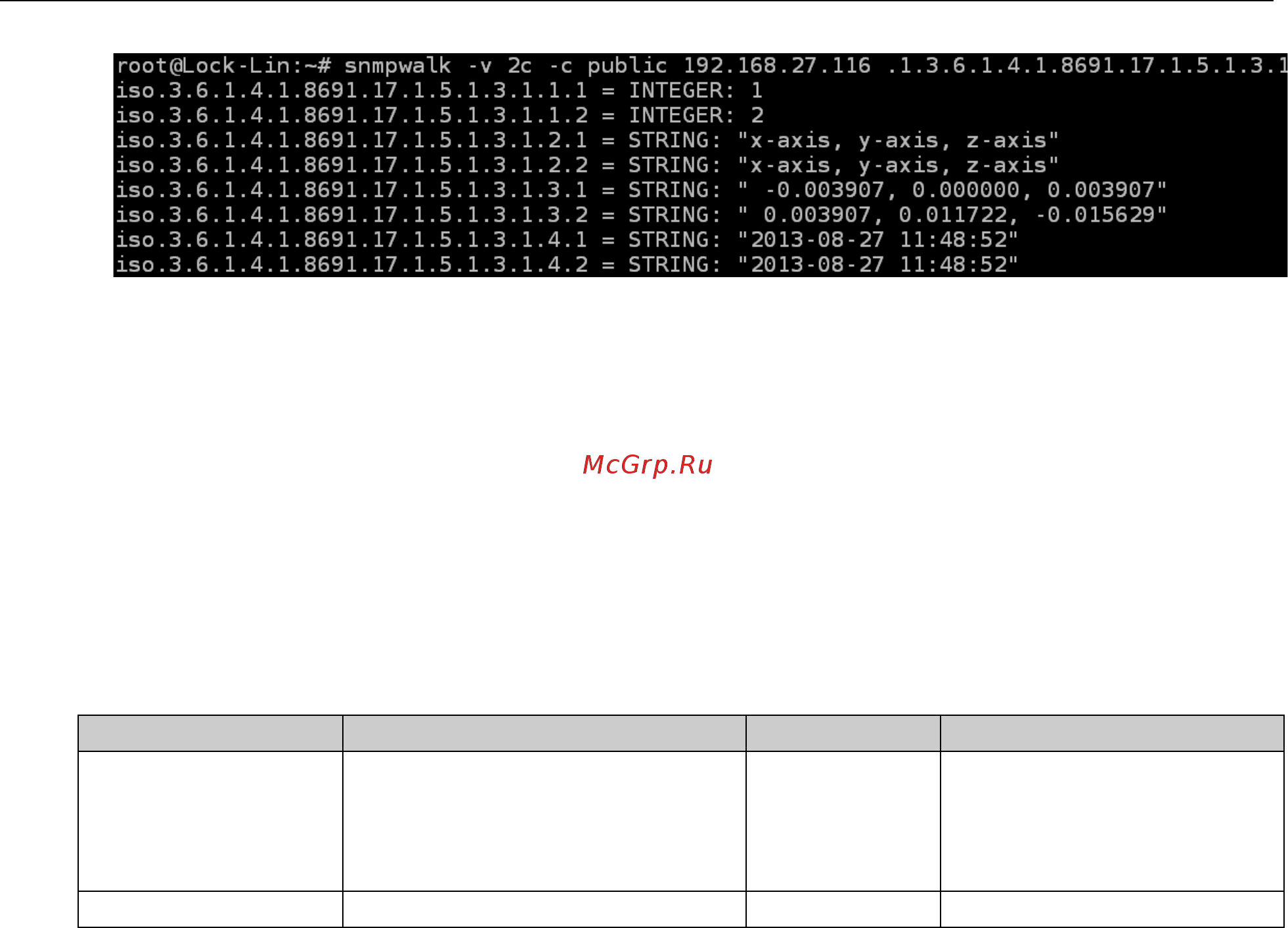

TC-6110 Linux User's Manual Moxa’s Rcore Software Packages
4-10
Enabling the Watchdog
There are two watchdog parameters that may be configured: the watchdogPeriod and the watchdogStatus.
The watchdog period is an integer between 0 and 255, with each number representing a single second.
Watchdog status indicates and/or sets the watchdog to enabled or disabled (if disabled, the watchdog period will
be represented as a zero [0]).
The default value of the watchdogPeriod is 60 (i.e., one minute), and the default value of watchdog status is 2,
which means it is disabled. To set up the watchdog, you need to reset watchdogStatus to 1 and set the
watchdogPeriod for the number of seconds that the watchdog will wait following a system hang. Once the the
set period of time has passed during which the system remains inactive, the watchdog will automatically reboot
the system. The following table shows the OIDs related to the watchdog.
Item Name OID File Access Value to set
watchdogPeriod .1.3.6.1.4.1.8691.17.1.6.6.2.1.0 read-write An integer between 0 and
255, representing the time in
sec that the watchdog will
wait following a system hang.
watchdogStatus .1.3.6.1.4.1.8691.17.1.6.6.2.2.0 read-write 1(Running), 2(Stop)
