TC-6110 Linux User's Manual System Recovery
6-3

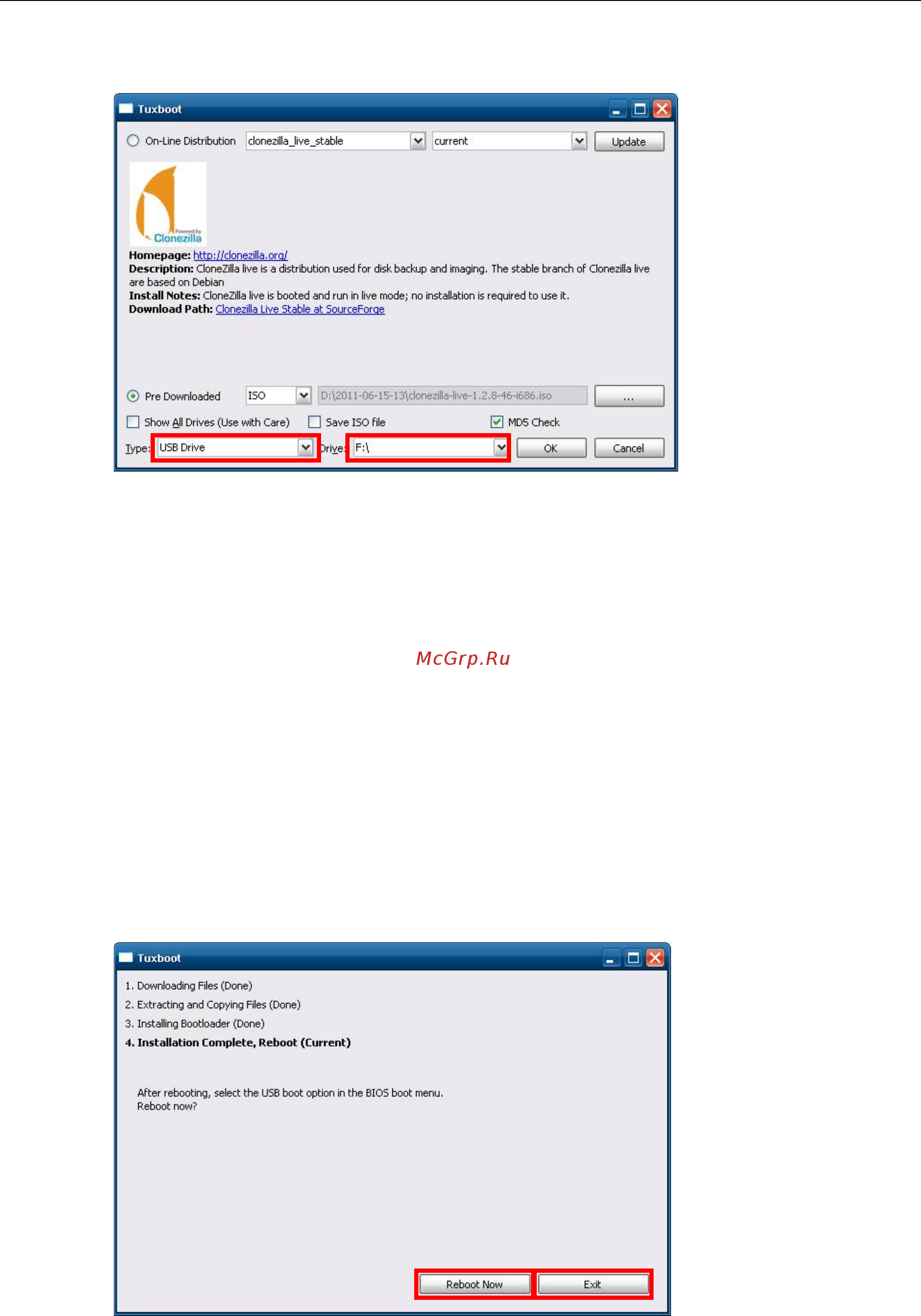

5. Set the Device Type (lower left-hand corner) as USB Drive, then set the Drive dialog to the letter under
which the USB is currently mounted.
6. Click OK, and the Clonezilla recovery environment (plus bootloader) will be copied to your USB drive.
Two Types of Recovery: Base Install, and Fully Configured
Because of the naming conventions used, for any given computer only a single system image may be stored
on any given USB drive. Consequently, at this point, users need to make a decision about which sort of system
recovery is preferred:
A. A recovery image of a fully configured OS, with user-installed software applications and scripts, or
B. A recovery image of only the basic, newly-installed root OS.
A: To configure the recovery environment to copy over a fully configured system, users should click Reboot
Now to close the installation environment and restart the computer. They should then proceed to the next
section, Step 3: Setting the BIOS to Boot via USB and continue the installation of the recovery
environment by continuing to Step 4 (opt.): Create a Custom System Image.
B: Users who want to restore the system to a clean OS image with no installed applications, scripting, or
alterations of any kind, should complete this portion of the process by clicking Exit here and returning to
the original OS. At this point, Step 1 has been completed, and you should proceed to Step 3: Setting the
BIOS to Boot via USB, and then go directly to Step 4: Restoring to a Stock OS.
