TC-6110 Linux User's Manual Moxa’s Rcore Software Packages
4-2
Moxa Predictive Maintenance Diagnostic Tool
Overview
The TC-6110 computers provide Moxa predictive maintenance diagnostic tool for you to monitor the system
status of your disk drive. This package includes two tools: the G-Sensor chart tool and monitoring tool. The
G-Sensor chart tool provides the display and log function for you to monitor the gravity value to predict the
damage of hard disk, and the monitoring tool provide the system information(CPU frequency, disk drive
temperature...etc).
Installing the Predictive Maintenance Diagnostic Tool
Follow these steps to install the G-sensor (vibration) package.
1. From the software CD that shipped with the computer or from the web, copy the
moxa-SafeGuard-TC-6110-1.0.deb software package to your computer.

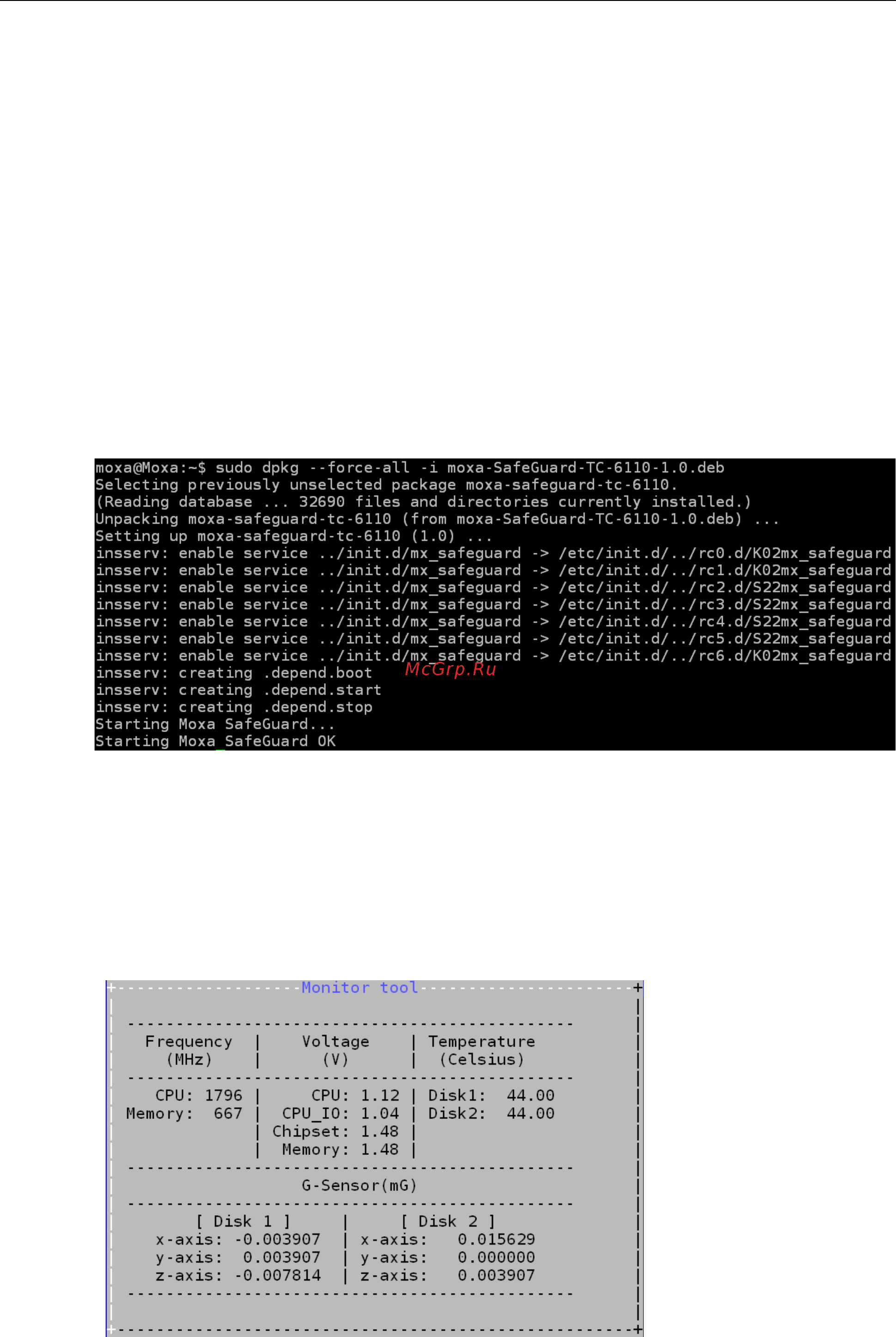

2. Install the software package using this command:
moxa@Moxa:~# sudo dpkg --force-all -i moxa-SafeGuard-TC-6110-1.0.deb
Moxa Rcore Predictive Maintenance Diagnostic Tool
The Moxa SafeGuard™ technology suite includes Rcore software to help administrators configure sensors for
intelligent monitoring of vibration and temperature, giving system operators important data about
operational conditions and possible causes of data corruption influencing the machine and its surrounding
environs.
Initial Check:
1. Start Safeguard using moxa@Moxa:~# sudo safeguard. You should see the following display:
2. To exit, send a SIGINT using Ctrl + C, killall, or kill.
