TC-6110 Linux User's Manual System Recovery
6-6
3. Once the image creation environment has completed booting up, you will be given a warning and asked if
you wish to continue. Please keep in mind that if you create the recovery image, then any residual files
currently copied to the
/home/partimag directory will be deleted. If there are any files remaining
in the USB partition image directory and you wish to save them, you must exit the recovery environment
and copy these files to another disk. If you wish to continue with the image creation, press Y (case
insensitive) to continue (screenshot on the next page).
WARNING
The same filename is used for all recovery images, whether for the full system backup or for the clean OS image
installation. This
means that currently, it is impossible to have more than one system image per USB drive.

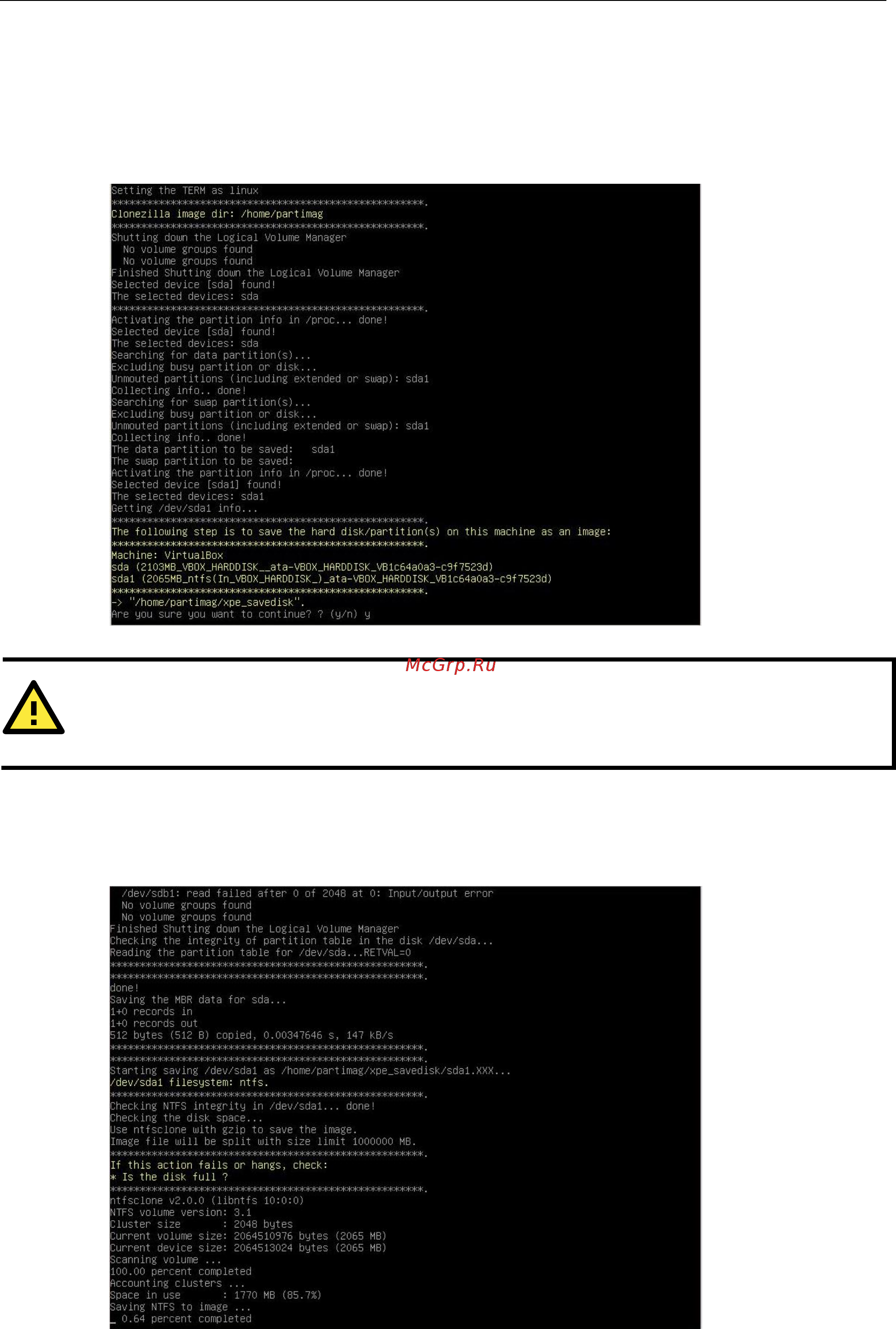

4. At this point, the recovery environment will copy of the entire hard drive to your USB drive. This will likely
take several minutes, and perhaps as long as half an hour. Do not remove the USB drive during this time;
wait patiently for the process to finish. Depending on the speed of your USB drive, this may be a good time
to get a cup of coffee, or take a nap.
