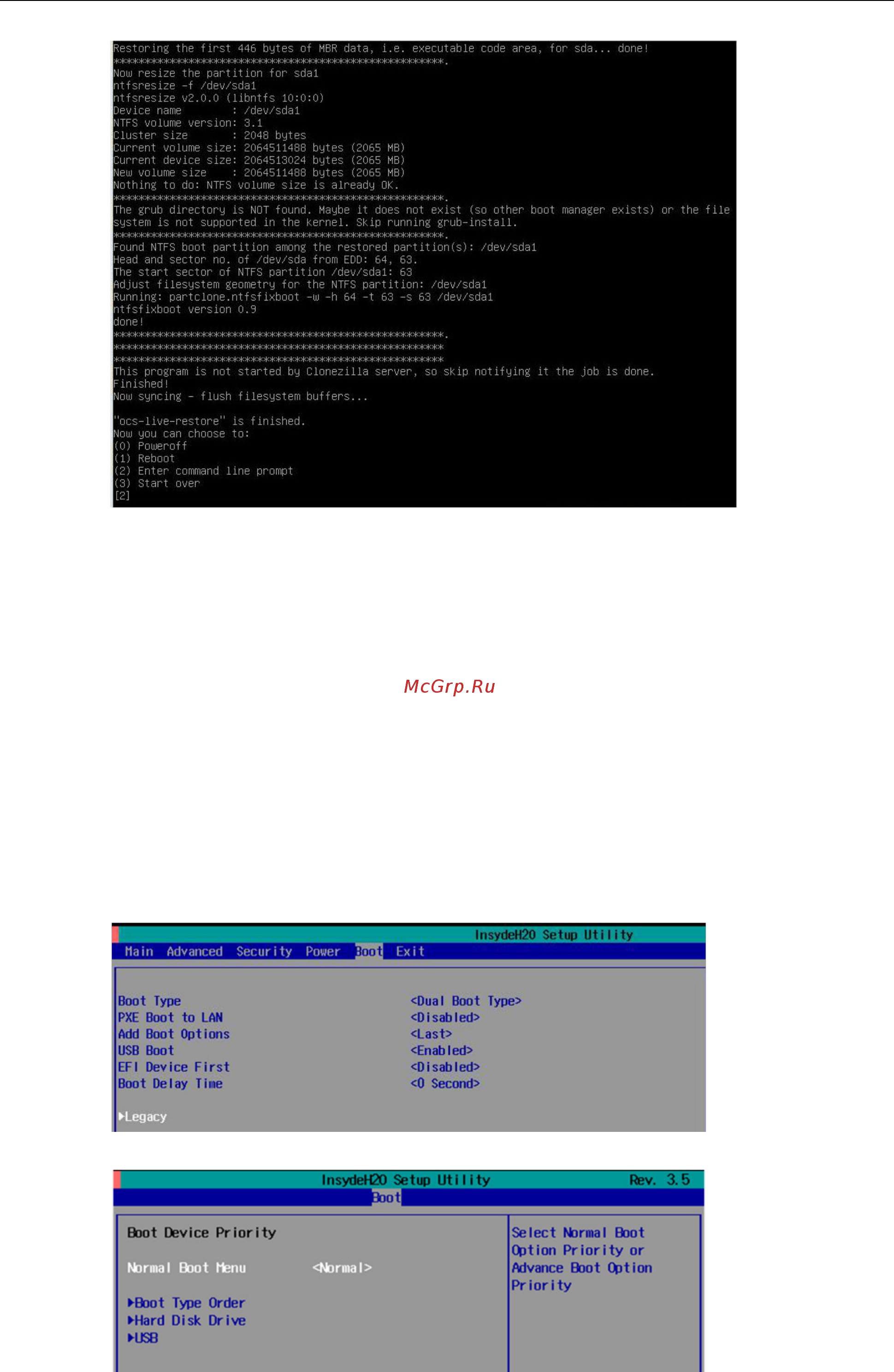

TC-6110 Linux User's Manual System Recovery
6-9
9. After the computer has powered down, remove the USB drive and store it in a safe place.
Step 6: Reset the BIOS to its Original State
Now you will need to return the boot priority to its original configuration so that the system will boot from the
original disk. This is done for two reasons; the first is security, so that the machine may not be rebooted from
unauthorized USB drives
The second reason, however, is functional: currently, if the DA-682A is set to boot from the USB drive, then
the DA-682A will hang any time a USB data drive (i.e.: non-bootable image) is inserted in the
machine at boot time. The DA-682A does not currently have the capacity to distinguish between simple USB
data drives and boot-capable OS drives.
1. Reboot the computer and, during the POST process, press F2 until you hear a long beep. You should then
enter the BIOS setup menu.
2. Use the left/right arrow keys to navigate to the Boot tab, and then press Enter.
3. Use the up/down arrows to highlight Legacy in the boot tab’s menu, and press Enter.
4. Use the up/down arrow keys to navigate to the Boot Type Order link, and then press Enter.
