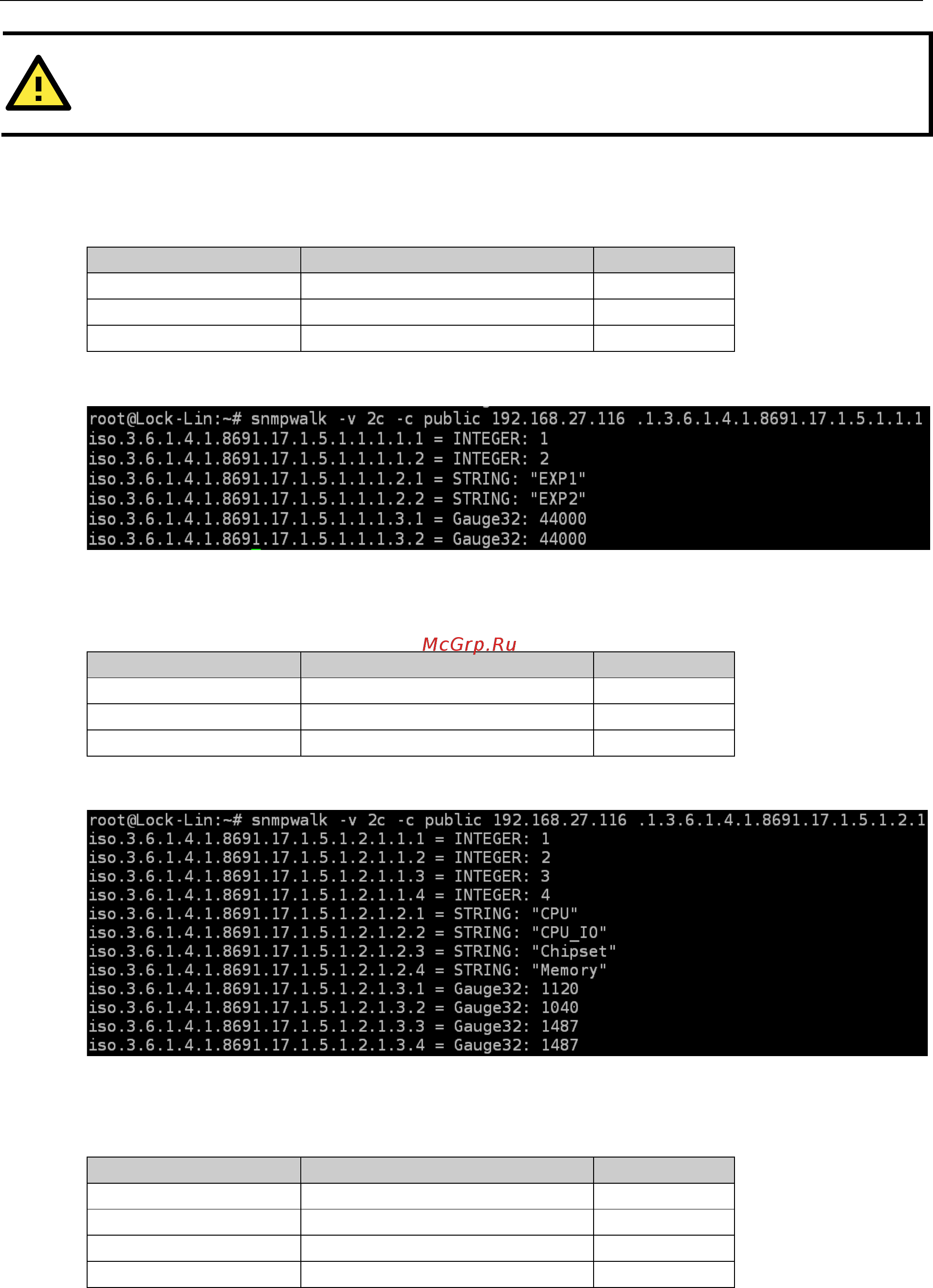

TC-6110 Linux User's Manual Moxa’s Rcore Software Packages
4-9
ATTENTION
If you modified PLED status via command
echo 1111 > /dev/pled, the SNMP database wont be sync
hed
Checking T-sensor
The following table shows the OIDS of the temperature sensors, read/write option and available values.
Item Name OID File Access
tempSensorsIndex .1.3.6.1.4.1.8691.17.1.5.1.1.1.1 read-only
tempSensorsDevice .1.3.6.1.4.1.8691.17.1.5.1.1.1.2 read-only
tempSensorsValue .1.3.6.1.4.1.8691.17.1.5.1.1.1.3 read-only
1. Use a Linux PC and type snmpwalk command to fetch all T-sensor OID value. The temperature is represented
in milli-degrees, and defaults to Celsius (but can be reconfigured for Fahrenheit, if so desired).
Checking Voltage Sensor
The following table shows the OID of temperature sensor, read/write option and available values.
Item Name
OID
File Access
voltSensorsIndex .1.3.6.1.4.1.8691.17.1.5.1.2.1.1 read-only
voltSensorsIndex .1.3.6.1.4.1.8691.17.1.5.1.2.1.2 read-only
voltSensorsIndex .1.3.6.1.4.1.8691.17.1.5.1.2.1.3 read-only
1. Use a Linux PC and type snmpwalk command to fetch all voltage sensor OID value. The voltage is
represented in millivolts.
Checking G-sensor
The following table shows the OID of G-Sensor, read/write option and available values.
Item Name OID File Access
accelerometerIndex
.1.3.6.1.4.1.8691.17.1.5.1.3.1.1
read-only
accelerometerAxis .1.3.6.1.4.1.8691.17.1.5.1.3.1.2 read-only
accelerometerValue .1.3.6.1.4.1.8691.17.1.5.1.3.1.3 read-only
accelerometerTimestamp .1.3.6.1.4.1.8691.17.1.5.1.3.1.4 read-only
Use a Linux PC and type snmpwalk command to fetch all G-sensor OID value; vibration is returned in units of
mill-Gees.
