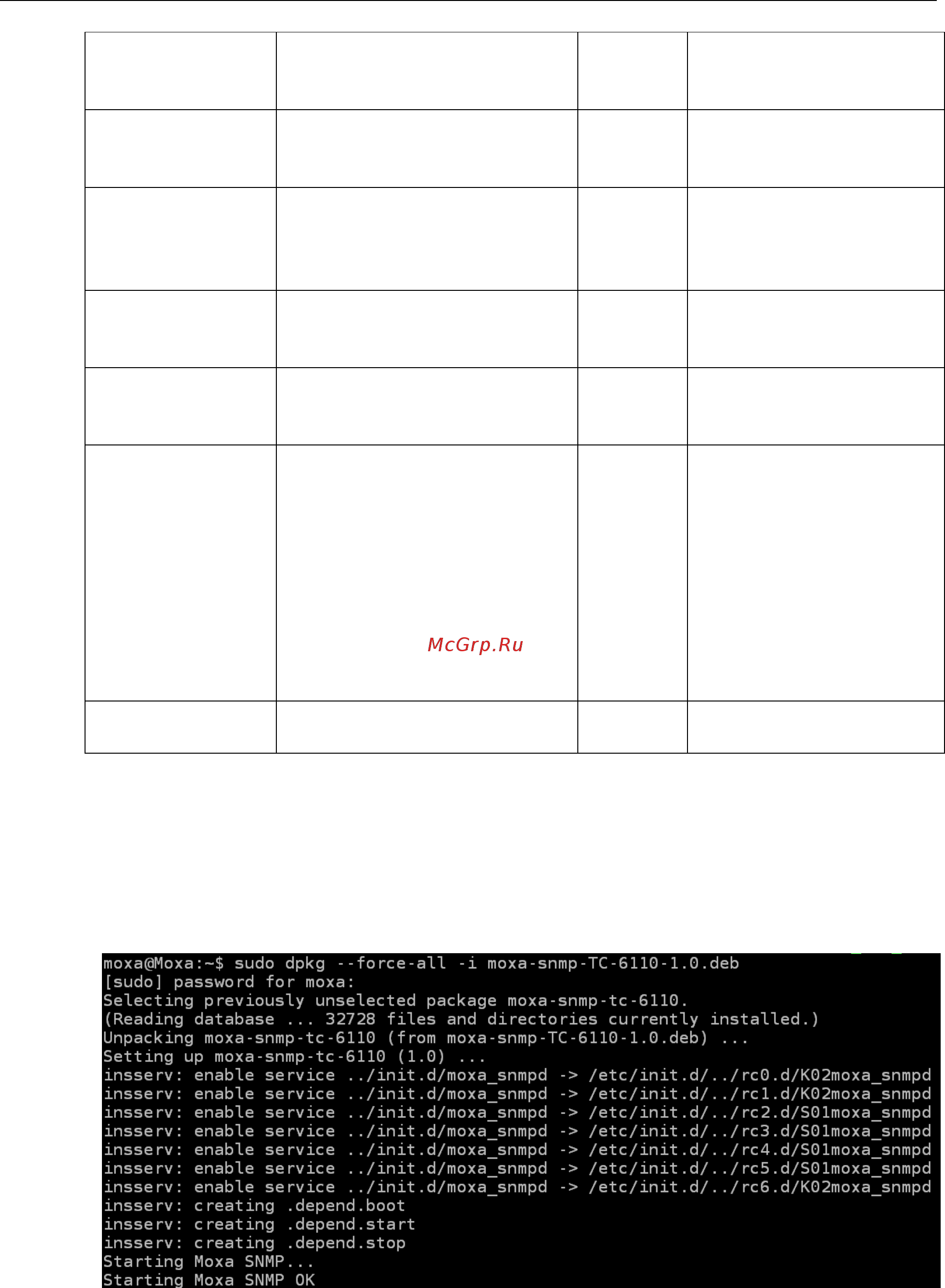

TC-6110 Linux User's Manual Moxa’s Rcore Software Packages
4-7
USB ports, regardless of their
current state in the usb
general port table
usbDeviceIndex .1.3.6.1.4.1.8691.17.1.6.4.1.3.1
.1
read-only The index is identical to
usbPortIndex for the
correspondent USB port
usbDeviceVendorID .1.3.6.1.4.1.8691.17.1.6.4.1.3.1
.2
read-only The hexadecimal vendor string
of the connected USB device
as it is provided to the USB
host
usbDeviceProductID .1.3.6.1.4.1.8691.17.1.6.4.1.3.1
.3
read-only The hexadecimal product ID
as it is provided to the USB
host by the USB device.
usbDeviceIndex .1.3.6.1.4.1.8691.17.1.6.4.1.3.1
.4
read-only This object returns the USB
device class of the active
configuration
watchdogPeriod .1.3.6.1.4.1.8691.17.1.6.6.2.1.0 read-writ
e
The configured watchdog
period; 0 indicates the
watchdog is disabled. The
watchdog period is an integer
between 0 and 255 that
configures the watchdog
expiration time in intervals of
1 second, with 255
representing an interval of 255
seconds.
watchdogStatus .1.3.6.1.4.1.8691.17.1.6.6.2.2.0 read-writ
e
Returns the watchdog’s
status.
Installing Moxa Synmap
To use Moxa Synmap, you need to install the Synmap package.
1. Copy the Synmap software package moxa-snmp-TC-6110-1.0.deb from the CD or the web.
2. Install the Synmap software package; because some libraries are shared, use the
--force-all option.
moxa@Moxa:~# sudo dpkg --force-all -i moxa-snmp-TC-6110-1.0.deb.
