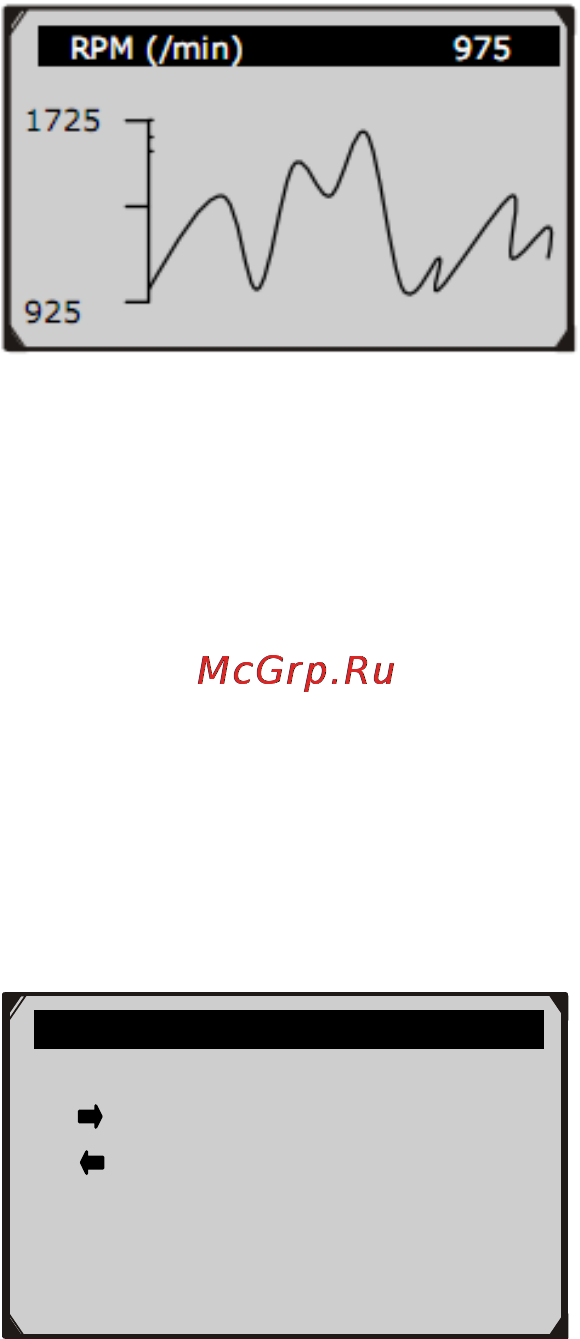

Figure 5.15

3) Press the ESC button to return to previous menu.

Viewing Custom Data Set

1) To view customized PID data, use the UP/DOWN scroll button

to select Custom Data Set from View Data menu and press the

OK button. (Figure 5.13)

2) Observe on-screen instructions.

Figure 5.16

3) Use the RIGHT button to deselect/select data parameters, and

use the UP/DOWN scroll button to move up and down. Selected

parameters are marked with solid squares.

……………Custom Data Set……… …..

[

] – Select/Deselect

[

] – Deselect all

[OK] – Confirm

[ESC] – Cancel

Press any key to continue.
