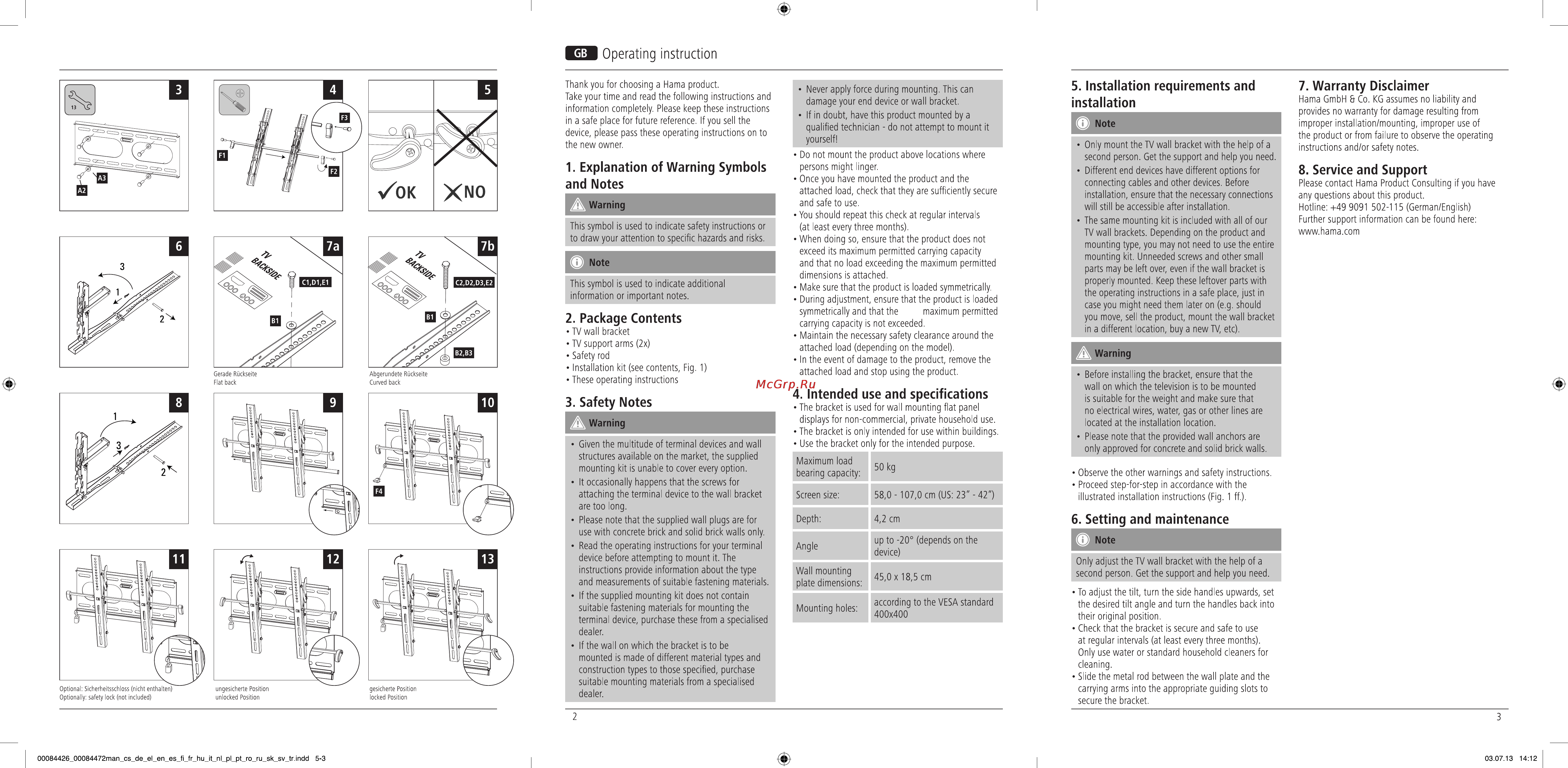

Operating instruction GB Thank you for choosing a Hama product Take your time and read the following instructions and information completely Please keep these instructions in a safe place for future reference If you sell the device please pass these operating instructions on to the new owner 1 Explanation of Warning Symbols and Notes Warning This symbol Is used to Indicate safety instructions or to draw your attention to specific hazards and risks 6 Note This symbol is used to indicate additional Information or important notes 2 Package Contents Gerade Rückseite Flat back Abgerundete Rückseite Curved back TV wall bracket TV support arms 2x Safety rod Installation kit see contents Fig 1 These operating instructions 3 Safety Notes 8 0 Warning Given the multitude of terminal devices and wall structures available on the market the supplied mounting kit is unable to cover every option locked Position Do not mount the product above locations where persons might linger Once you have mounted the product and the attached load check that they are sufficiently secure and safe to use You should repeat this check at regular intervals at least every three months When doing so ensure that the product does not exceed its maximum permitted carrying capacity and that no load exceeding the maximum permitted dimensions is attached Make sure that the product is loaded symmetrically During adjustment ensure that the product is loaded symmetrically and that the maximum permitted carrying capacity is not exceeded Maintain the necessary safety clearance around the attached load depending on the model In the event of damage to the product remove the attached load and stop using the product 4 Intended use and specifications The bracket is used for wall mounting flat panel displays for non commercial private household use The bracket is only intended for use within buildings Use the bracket only for the Intended purpose 7 Warranty Disclaimer installation Hama GmbH Co KG assumes no liability and provides no warranty for damage resulting from improper installation mounting improper use of the product or from failure to observe the operating instructions and or safety notes Only mount the TV wall bracket with the help of a second person Get the support and help you need Different end devices have different options for connecting cables and other devices Before installation ensure that the necessary connections will still be accessible after Installation The same mounting kit is included with all of our TV wall brackets Depending on the product and mounting type you may not need to use the entire mounting kit Unneeded screws and other small parts may be left over even if the wall bracket is properly mounted Keep these leftover parts with the operating instructions in a safe place just in case you might need them later on e g should you move sell the product mount the wall bracket in a different location buy a new TV etc Please contact Hama Product Consulting if you have any questions about this product Hotline 49 9091 502 1 15 German EngIish Further support information can be found here www hama com Before installing the bracket ensure that the wall on which the television is to be mounted is suitable for the weight and make sure that no electrical wires water gas or other lines are located at the installation location Please note that the provided wall anchors are only approved for concrete and solid brick walls Screen size 58 0 107 0 cm US 23 42 Observe the other warnings and safety instructions Proceed step for step in accordance with the illustrated Installation Instructions Fig 1 ff Please note that the supplied wall plugs are for use with concrete brick and solid brick walls only Depth 4 2 cm 6 Setting and maintenance Read the operating instructions for your terminal device before attempting to mount it The instructions provide information about the type and measurements of suitable fastening materials Angle up to 20 depends on the device Wall mounting plate dimensions 45 0 x 18 5 cm Mounting holes according to the VESA standard 400x400 If the wall on which the bracket is to be mounted is made of different material types and construction types to those specified purchase suitable mounting materials from a specialised dealer 8 Service and Support Warning 50 kg If the supplied mounting kit does not contain suitable fastening materials for mounting the terminal device purchase these from a specialised dealer unlocked Position If in doubt have this product mounted by a qualified technician do not attempt to mount it yourself 5 Installation requirements and Maximum load bearing capacity It occasionally happens that the screws for attaching the terminal device to the wall bracket are too long Optionally safety lock not included Never apply force during mounting This can damage your end device or wall bracket Only adjust the TV wall bracket with the help of a second person Get the support and help you need To adjust the tilt turn the side handles upwards set the desired tilt angle and turn the handles back into their original position Check that the bracket is secure and safe to use at regular intervals at least every three months Only use water or standard household cleaners for cleaning Slide the metal rod between the wall plate and the carrying arms into the appropriate guiding slots to secure the bracket 2 00084426 00084472man _cs_de_el en _es_fi_ fr hu it nl pl pt ro ru sk_sv tr indd 5 3 03 07 13 14 12
